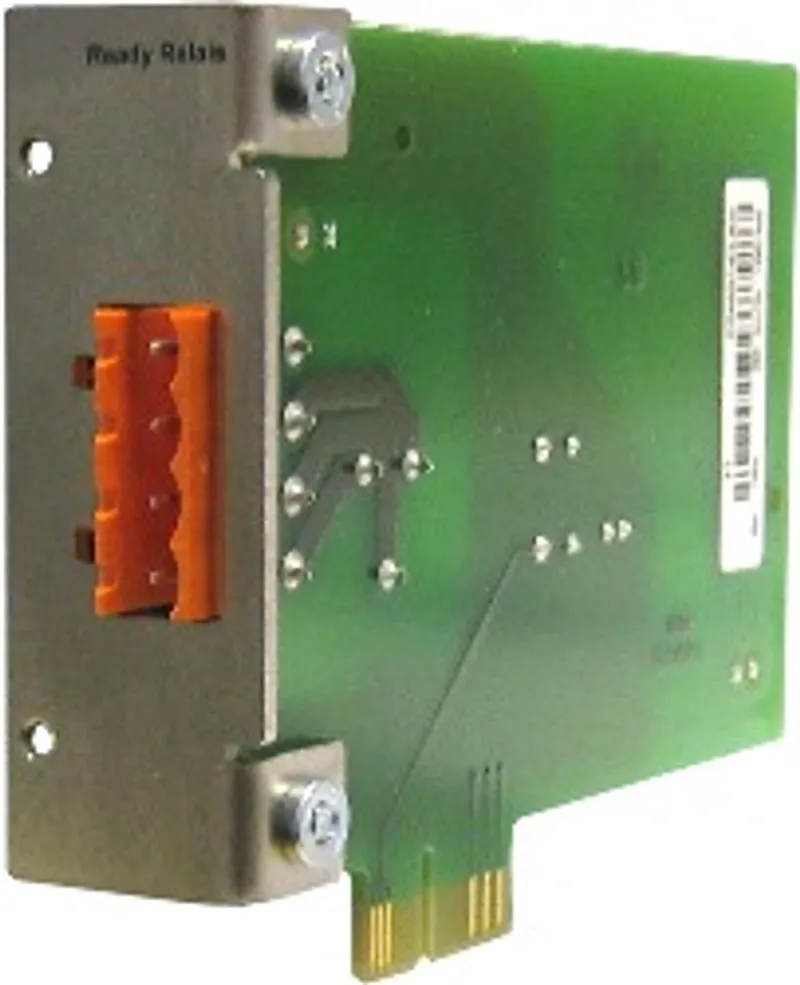

B&R 5AC801.RDYR-00

Since the ready relay switches the relay…

MPN: 5AC801.RDYR-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 5AC801.RDYR-00?

Since the 5AC801.RDYR-00 ready relay switches the relay contacts as soon as the B&R Automation PC 810 has booted and is supplied internally with all voltages, it is possible to connect additional devices to the relay that will also be switched on.The 5AC801.RDYR-00 ready relay can only be installed in an AP Link slot.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals
