B&R 5ACPCI.ETH1-01

PCI Ethernet card1x Ethernet interface (10/100 Mbit/s)

MPN: 5ACPCI.ETH1-01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

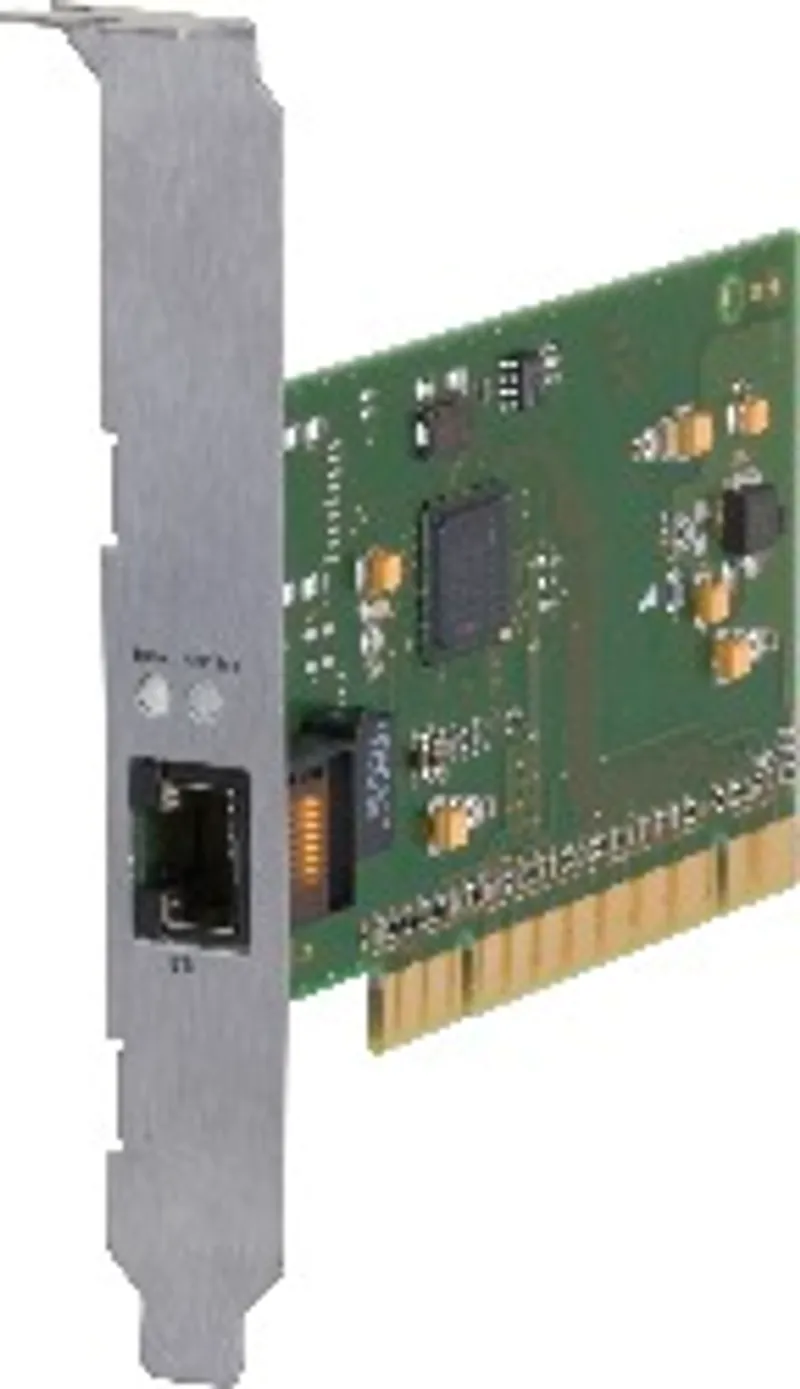

What is the B&R 5ACPCI.ETH1-01?

PCI Ethernet card

1x Ethernet interface (10/100 Mbit/s)

These universal (3.3 V and 5 V) half-size PCI Ethernet card have a 10/100 Mbit/s network connection and can be inserted and operated in a standard 16-bit PCI slot as an additional network interface.

Specifications

General information

Diagnostics – Data transfer	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification.)
B&R ID code	0xA58A

Interfaces

Ethernet – Quantity	1
Ethernet – Controller	Intel 82551ER
Ethernet – Variant	RJ45, shielded
Ethernet – Transfer rate	10/100 Mbit/s
Ethernet – Line length	Max. 100 m between two stations (segment length)
