Braided hose and fittings Parts

Danfoss

29611Y-08-08Z

HOSE NIPPLE ASSY,1P/08,JIS-F/08,CS,STR

Danfoss

29611Y-06-06Z

HOSE NIPPLE ASSY,1P/06,JIS-F/06,CS,STR

Danfoss

29611-24-24WZ

HOSE NIPPLE ASSY,2P/24,JIS-F/24,CS,STR

Danfoss

29611-20-20WZ

HOSE NIPPLE ASSY,2P/20,JIS-F/20,CS,STR

Danfoss

29611-16-16Z

HOSE NIPPLE ASSY,2P/16,JIS-F/16,CS,STR

Danfoss

29611-12-12Z

HOSE NIPPLE ASSY,2P/12,JIS-F/12,CS,STR

Danfoss

29611-12-10Z

HOSE NIPPLE ASSY,2P/10,JIS-F/12,CS,STR

Danfoss

29611-10-10Z

HOSE NIPPLE ASSY,2P/10,JIS-F/10,CS,STR

Danfoss

29611-08-08Z

HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,STR

Danfoss

29611-06-06Z

HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,STR

Danfoss

29611-06-05Z

HOSE NIPPLE ASSY,2P/05,JIS-F/06,CS,STR

Danfoss

29611-06-04Z

HOSE NIPPLE ASSY,2P/04,JIS-F/06,CS,STR

Danfoss

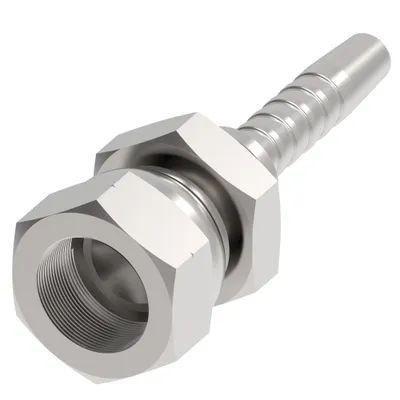

29611-04-04Z

HOSE NIPPLE ASSY,2P/04,JIS-F/04,CS,STR

Danfoss

29611-02-03Z

HOSE NIPPLE ASSY,2P/03,JIS-F/02,CS,STR

Danfoss

28691-33-16Z

HOSE NIPPLE ASSY,2P/16,KSF-F/33,CS,90D

Danfoss

28691-30-12Z

HOSE NIPPLE ASSY,2P/12,KSF-F/30,CS,90D

Danfoss

28691-24-10Z

HOSE NIPPLE ASSY,2P/10,KSF-F/24,CS,90D

Danfoss

28691-22-08Z

HOSE NIPPLE ASSY,2P/08,KSF-F/22,CS,90D

Danfoss

28691-20-08Z

HOSE NIPPLE ASSY,2P/08,KSF-F/20,CS,90D

Danfoss

28691-20-06Z

HOSE NIPPLE ASSY,2P/06,KSF-F/20,CS,90D

Danfoss

28691-18-06Z

HOSE NIPPLE ASSY,2P/06,KSF-F/18,CS,90D

Danfoss

28691-16-06Z

HOSE NIPPLE ASSY,2P/06,KSF-F/16,CS,90D

Danfoss

28691-14-06Z

HOSE NIPPLE ASSY,2P/06,KSF-F/14,CS,90D

Danfoss

28691-14-04Z

HOSE NIPPLE ASSY,2P/04,KSF-F/14,CS,90D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	Product height in	Product height mm	Product length in	Product length mm
29611Y-08-08Z	2.283	1.141	28.981	2.756	70.002
29611Y-06-06Z	2.086	1.024	26.009	2.441	62.001
29611-24-24WZ	4.389	2.165	54.991	5.138	130.505
29611-20-20WZ	3.818	2.270	57.658	4.551	115.595
29611-16-16Z	3.110	1.860	47.244	3.740	94.996
29611-12-12Z	2.716	1.450	36.830	3.248	82.499
29611-12-10Z	2.519	1.450	36.830	3.051	77.495
29611-10-10Z	2.539	1.360	34.544	2.530	64.262
29611-08-08Z	2.283	1.220	30.988	2.756	70.002
29611-06-06Z	2.086	1.000	25.400	2.441	62.001
29611-06-05Z	2.007	1.000	25.400	2.362	59.994
29611-06-04Z	2.007	1.000	25.400	2.362	59.994
29611-04-04Z	1.929	0.870	22.098	2.244	56.997
29611-02-03Z	1.633	1.000	25.400	1.630	41.402
28691-33-16Z	4.870	4.440	112.776	5.800	147.320
28691-30-12Z	4.094	4.010	101.854	4.800	121.920
28691-24-10Z	3.543	3.346	84.988	4.173	105.994
28691-22-08Z	2.854	3.012	76.504	3.386	86.000
28691-20-08Z	2.854	3.031	76.987	3.386	86.000
28691-20-06Z	2.570	2.590	65.786	3.184	80.873
28691-18-06Z	2.570	2.569	65.252	3.043	77.292
28691-16-06Z	2.568	2.510	63.754	3.002	76.250
28691-14-06Z	2.570	2.410	61.214	2.940	74.676
28691-14-04Z	2.283	2.146	54.508	2.657	67.487

Common to all listed parts

Construction Style	Crimp
Thread sealant	No
