Braided hose and fittings Parts

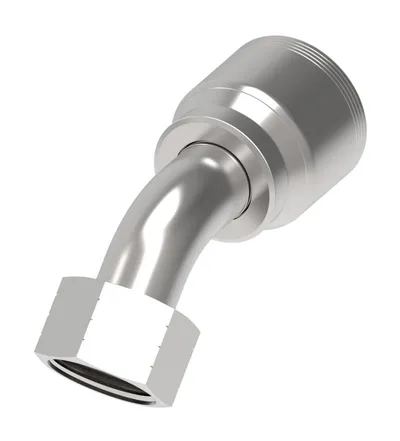

Danfoss

4S12FRA12

HOSE FTG, 4S/12, ORS-F/12, CS, 45D

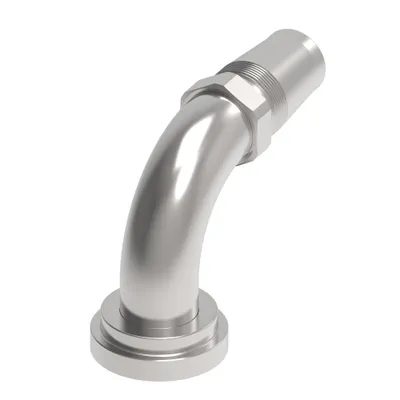

Danfoss

4679-16S

HOSE NIPPLE ASSY, C5/16, C61/16, CS, 90D

Danfoss

4203-8-8S

HOSE INSERT, 1R/08, JIC-F/08, CS, STR

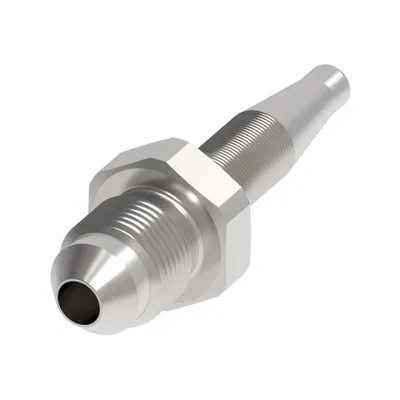

Danfoss

4203-8-6S

HOSE INSERT, 1R/06, JIC-F/08, CS, STR

Danfoss

4203-6-4S

HOSE INSERT, 1R/04, JIC-F/06, CS, STR

Danfoss

4203-12S

HOSE INSERT, 1R/12, JIC-F/12, CS, STR

Danfoss

4203-10-8S

HOSE INSERT, 1R/08, JIC-F/10, CS, STR

Danfoss

4202-8-8S

HOSE INSERT, 1R/08, NPTF-M/08, CS, STR

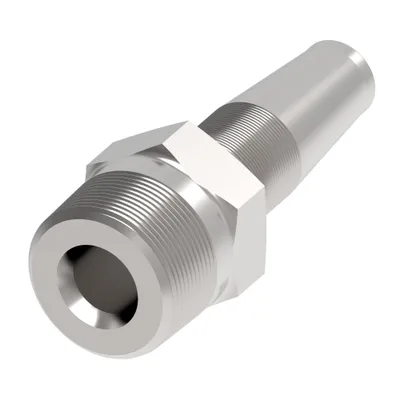

Danfoss

4202-4-4S

HOSE INSERT, 1R/04, NPTF-M/04, CS, STR

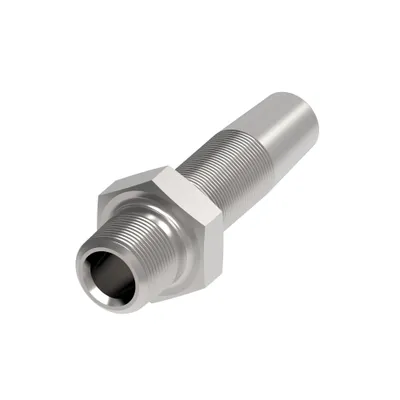

Danfoss

4202-16-16S

HOSE INSERT, 1R/16, NPTF-M/16, CS, STR

Danfoss

4103-4-8-8S

HOSE INSERT ASSY,1R/08,JIC-F/08,CS,STR

Danfoss

4103-4-8-6S

HOSE INSERT ASSY,1R/06,JIC-F/08,CS,STR

Danfoss

4103-4-6-6S

HOSE INSERT ASSY,1R/06,JIC-F/06,CS,STR

Danfoss

4103-4-6-4S

HOSE INSERT ASSY,1R/04,JIC-F/06,CS,STR

Danfoss

4103-4-4-4S

HOSE INSERT ASSY,1R/04,JIC-F/04,CS,STR

Danfoss

4103-4-16S

HOSE INSERT ASSY,1R/16,JIC-F/16,CS,STR

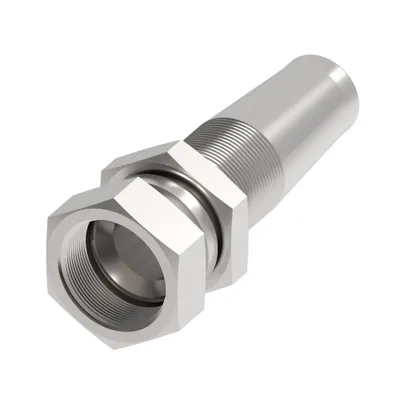

Danfoss

4103-4-12S

HOSE INSERT ASSY,1R/12,JIC-F/12,CS,STR

Danfoss

4103-4-10-8S

HOSE INSERT ASSY,1R/08,JIC-F/10,CS,STR

Danfoss

4010-4S

SOCKET-REUS, 1P/04, CS

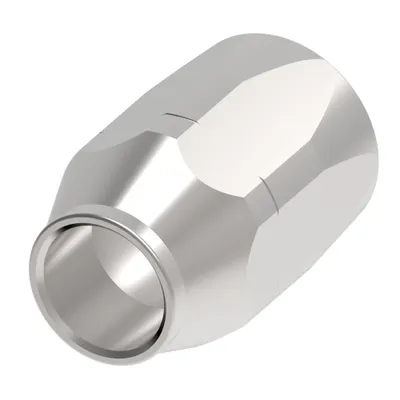

Danfoss

4010-12S

SOCKET-REUS, 1P/12, CS

Danfoss

40011-16-16IN

TUBE NIPPLE, 2P/16, 16, CS

Danfoss

40011-08-08IN

TUBE NIPPLE, 2P/08, 08, CS

Danfoss

40011-06-06IN

TUBE NIPPLE, 2P/06, 06, CS

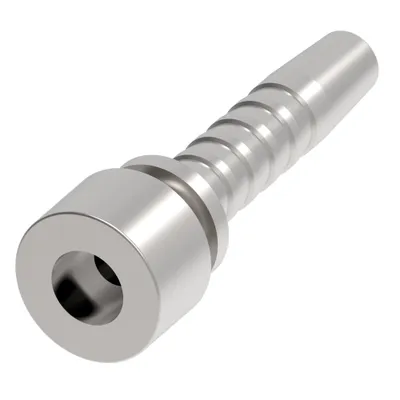

Danfoss

40011-04-04IN

TUBE NIPPLE, 2P/04, 04, CS

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor IN	Product length in	Product length mm
4S12FRA12	4.280	108.700	2.850	4.280	108.712
4679-16S	3.460	87.880	2.300	4.330	109.982
4203-8-8S	3.037	77.140	1.950	3.037	77.139
4203-8-6S	2.890	73.400	1.980	2.894	73.507
4203-6-4S	2.500	63.500	1.830	2.496	63.398
4203-12S	3.750	95.200	2.290	3.749	95.224
4203-10-8S	3.140	79.760	2.057	3.140	79.756
4202-8-8S	3.130	79.500	2.050	3.130	79.502
4202-4-4S	2.440	62.000	1.770	2.440	61.976
4202-16-16S	4.390	111.500	3.230	4.388	111.460
4103-4-8-8S	3.240	82.296	2.157	3.240	82.296
4103-4-8-6S	3.100	78.740	2.190	3.100	78.740
4103-4-6-6S	2.970	75.438	2.064	2.970	75.438
4103-4-6-4S	2.730	69.340	2.060	2.730	69.342
4103-4-4-4S	2.580	65.530	1.910	2.580	65.532
4103-4-16S	4.470	113.530	3.300	4.470	113.538
4103-4-12S	3.880	98.550	2.360	3.880	98.552
4103-4-10-8S	3.360	85.340	2.270	3.360	85.344
4010-4S	1.732	43.990	—	1.730	43.942
4010-12S	2.470	62.740	—	2.470	62.738
40011-16-16IN	2.760	70.000	0.906	2.755	70.000
40011-08-08IN	1.810	46.000	0.570	1.811	46.000
40011-06-06IN	1.670	42.500	0.490	1.673	42.500
40011-04-04IN	1.590	40.500	0.490	1.594	40.500
