Danfoss 28691-24-10Z

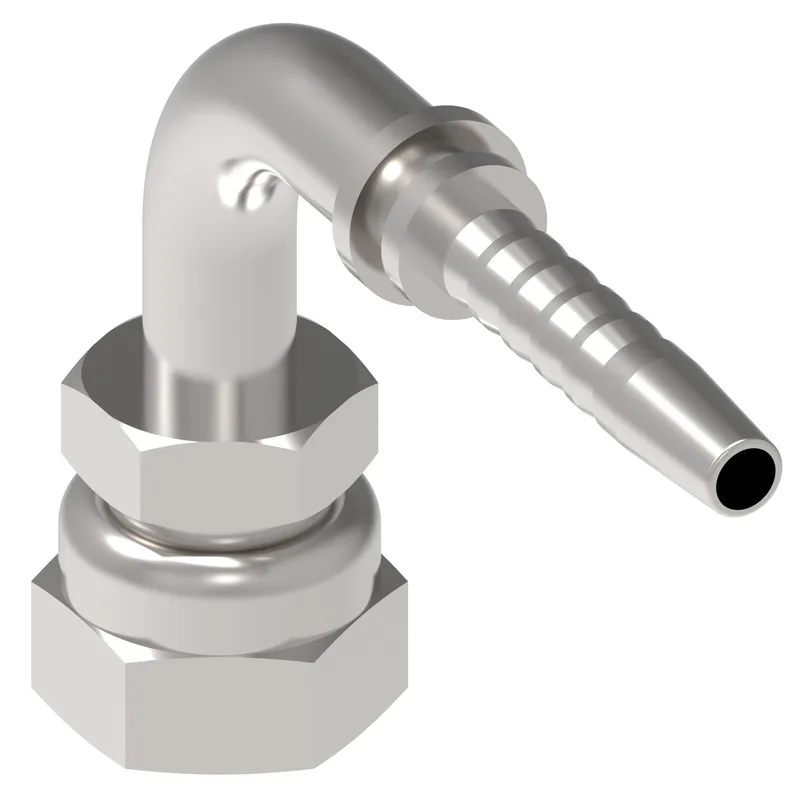

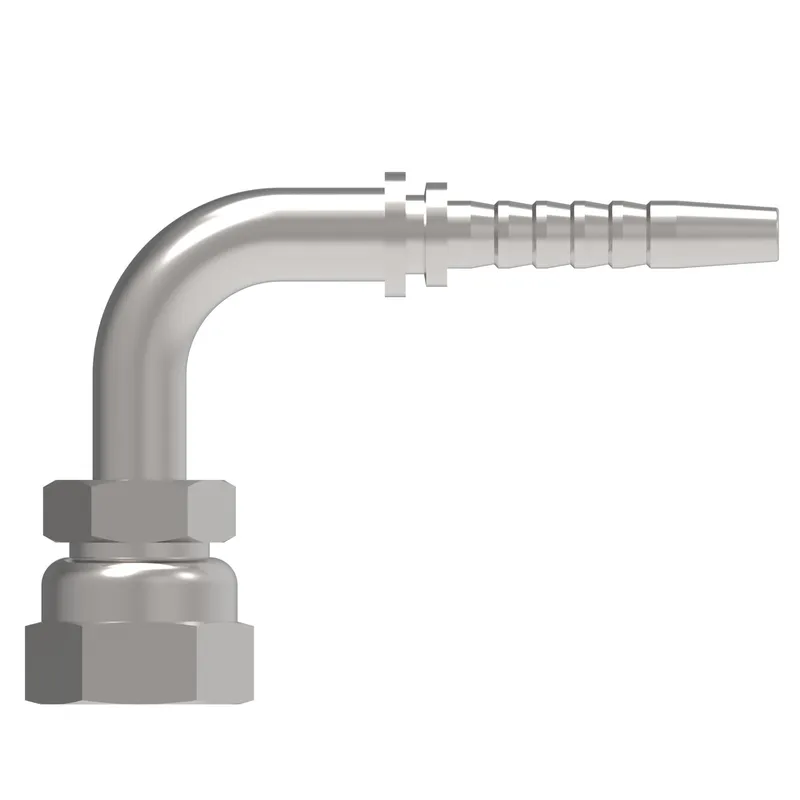

HOSE NIPPLE ASSY,2P/10,KSF-F/24,CS,90D

MPN
28691-24-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 28691-24-10Z?

Danfoss HOSE NIPPLE ASSY,2P/10,KSF-F/24,CS,90D, manufacturer part number 28691-24-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.543
A dimension MM90.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.875
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN2.322
Drop dimension MM59.00
Finish platingZinc plating
Hex size 1 IN1.259
Hex size 1 MM32.000
Hex size 2 IN1.259
Hex size 2 MM32.000
Hose cut off factor IN2.204
Hose cut off factor MM56.000
Hose size-10
Inside diameter IN0.472
Inside diameter MM12.000
Product height in3.346
Product height mm84.988
Product length in4.173
Product length mm105.994
Product materialCarbon steel
Product width in1.260
Product width mm32.004
Thread sealantNo
Thread size 1M24x1.5

28691-24-10Z: frequently asked questions

When can 28691-24-10Z be shipped?

28691-24-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 28691-24-10Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 28691-24-10Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 28691-24-10Z, subject to availability and destination.
