Danfoss 29611-20-20WZ

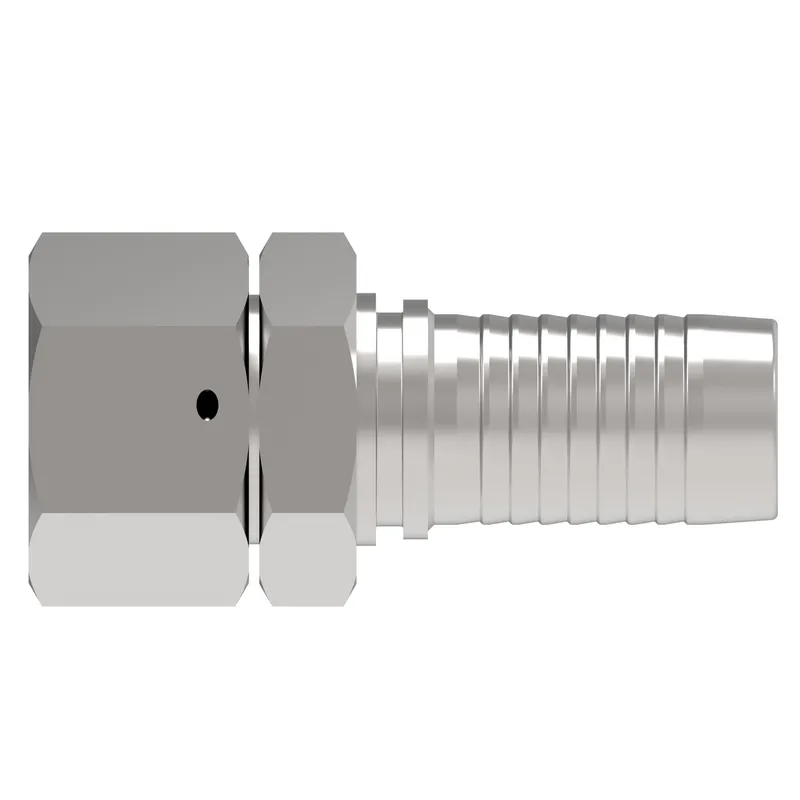

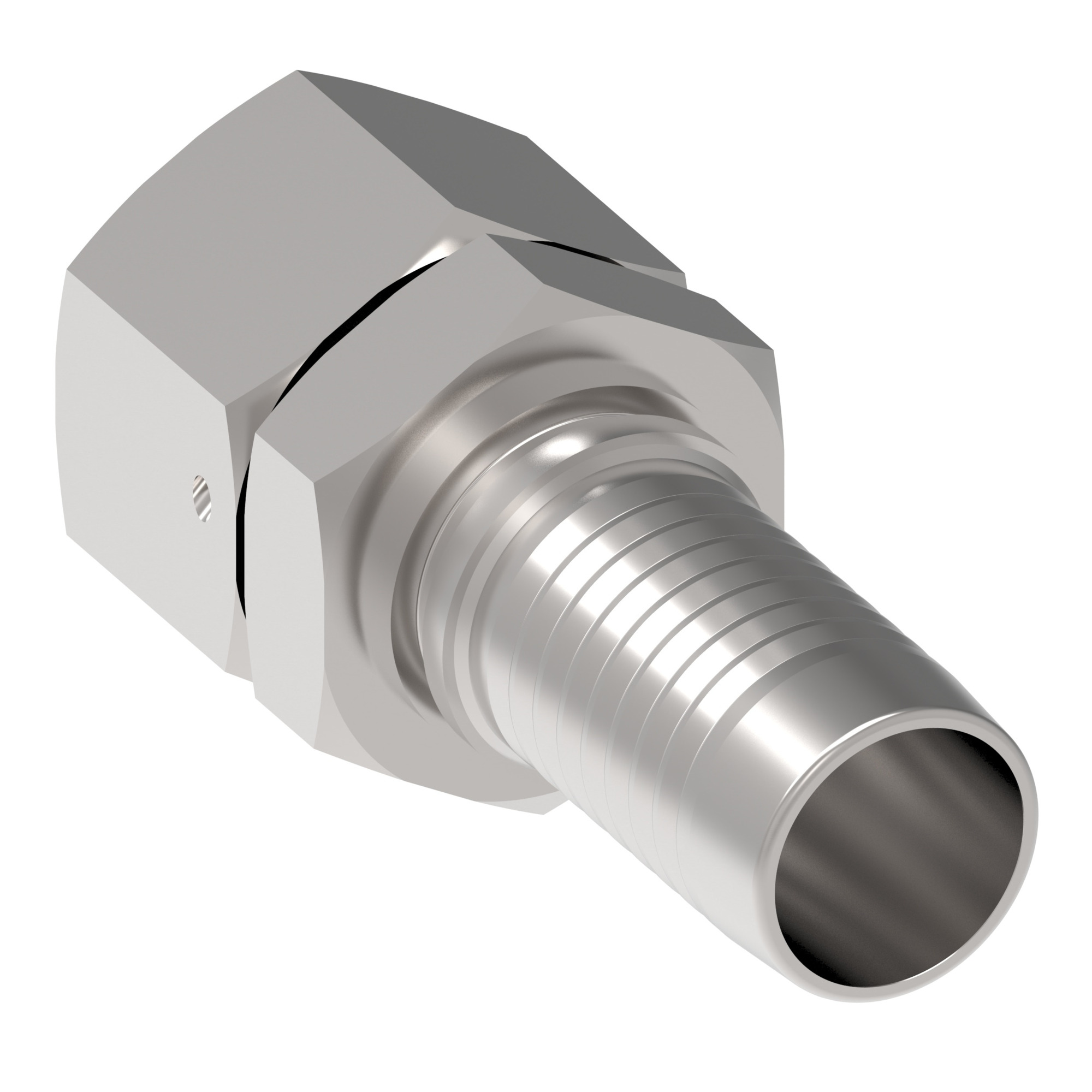

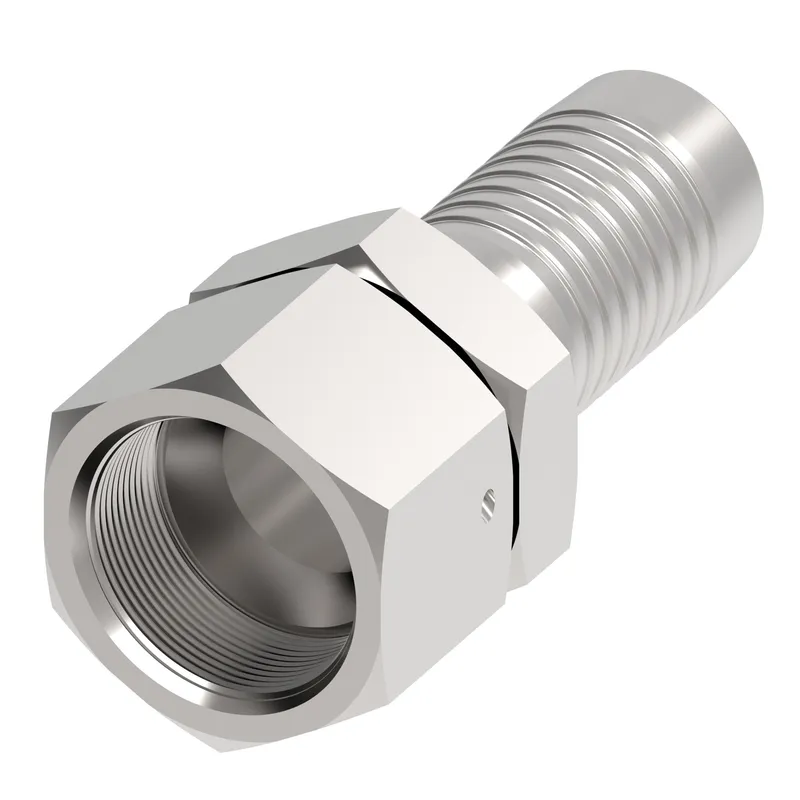

HOSE NIPPLE ASSY,2P/20,JIS-F/20,CS,STR

MPN
29611-20-20WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29611-20-20WZ?

Danfoss HOSE NIPPLE ASSY,2P/20,JIS-F/20,CS,STR, manufacturer part number 29611-20-20WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.818
A dimension MM97.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-20
End Type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN1.968
Hex size 1 MM50.000
Hex size 2 IN1.968
Hex size 2 MM50.000
Hose cut off factor IN1.692
Hose cut off factor MM43.000
Hose size-20
Inside diameter IN1.062
Inside diameter MM27.000
Product height in2.270
Product height mm57.658
Product length in4.551
Product length mm115.595
Product materialCarbon steel
Product width in1.970
Product width mm50.038
Thread sealantNo
Thread size 1G 1 1/4
Working pressure max BAR172
Working pressure max PSI2500

29611-20-20WZ: frequently asked questions

When can 29611-20-20WZ be shipped?

29611-20-20WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29611-20-20WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29611-20-20WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29611-20-20WZ, subject to availability and destination.
