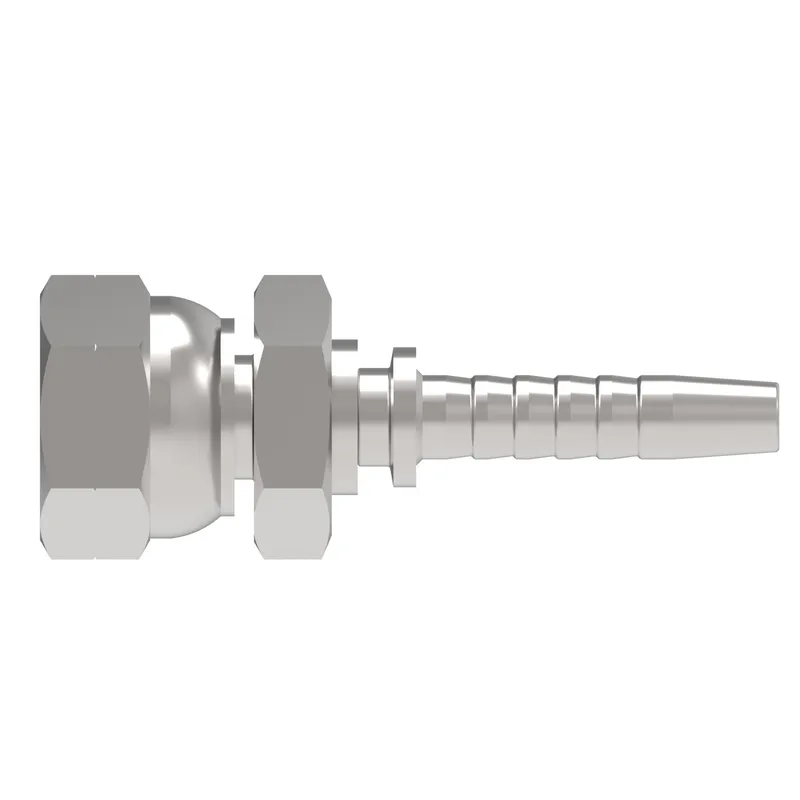

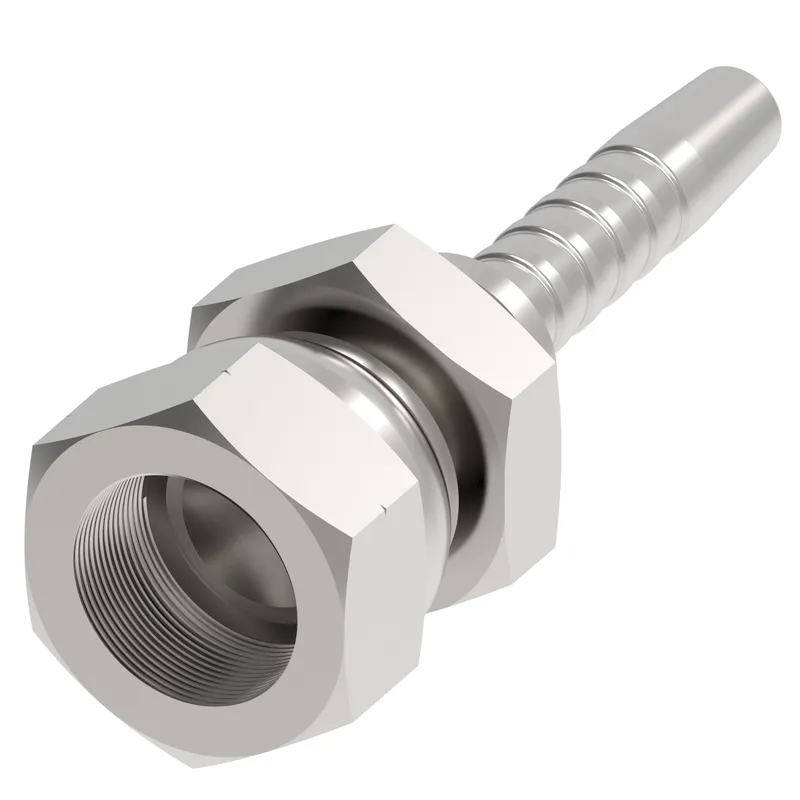

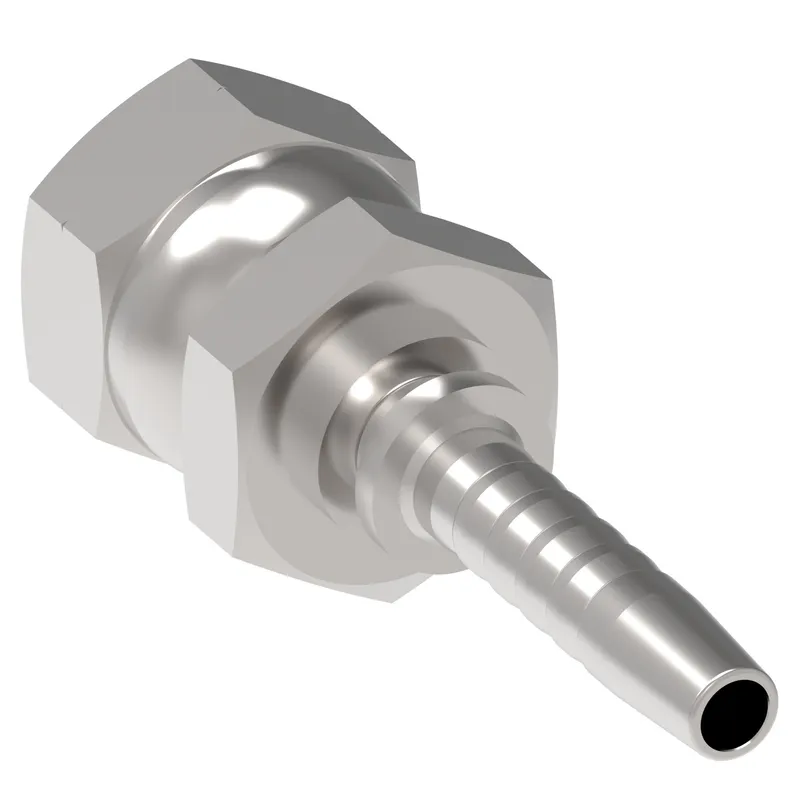

Danfoss 29611-06-05Z

HOSE NIPPLE ASSY,2P/05,JIS-F/06,CS,STR

MPN
29611-06-05Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29611-06-05Z?

Danfoss HOSE NIPPLE ASSY,2P/05,JIS-F/06,CS,STR, manufacturer part number 29611-06-05Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.007
A dimension MM51.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.310
Compatible hose ID MM7.938
Construction StyleCrimp
End size 1-6
End Type 1Female BSPP DKO swivel 60 deg.
Hex size 1 IN0.866
Hex size 1 MM22.000
Hex size 2 IN0.866
Hex size 2 MM22.000
Hose cut off factor IN0.905
Hose cut off factor MM23.000
Hose size-5
Inside diameter IN0.216
Inside diameter MM5.500
Product height in1.000
Product height mm25.400
Product length in2.362
Product length mm59.994
Product materialCarbon steel
Product width in0.866
Product width mm21.996
Thread sealantNo
Thread size 1G 3/8
Working pressure max BAR400
Working pressure max PSI5800

29611-06-05Z: frequently asked questions

When can 29611-06-05Z be shipped?

29611-06-05Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29611-06-05Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29611-06-05Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29611-06-05Z, subject to availability and destination.
