Danfoss 29611-12-12Z

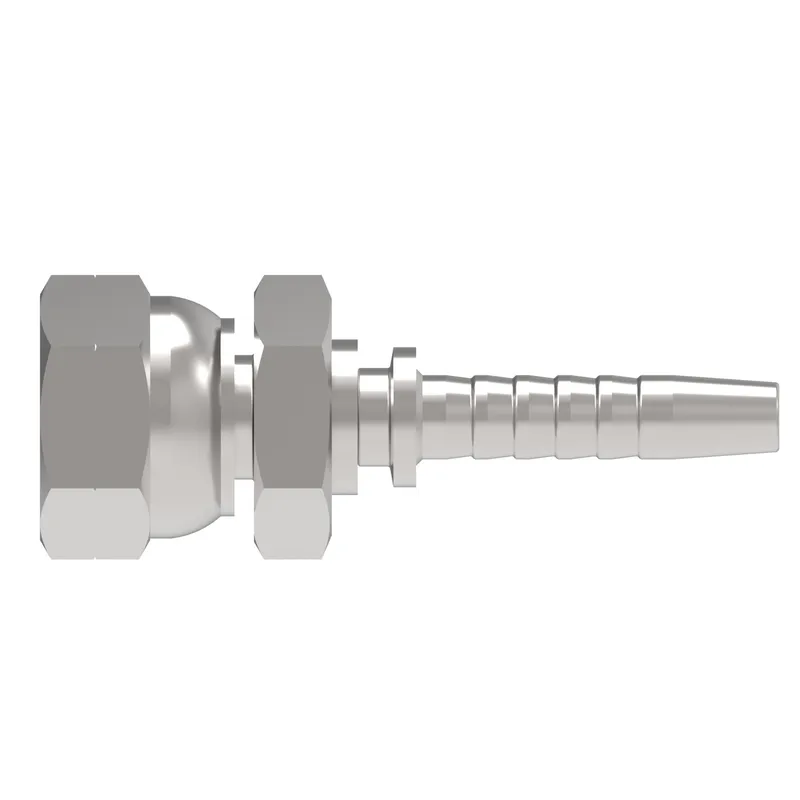

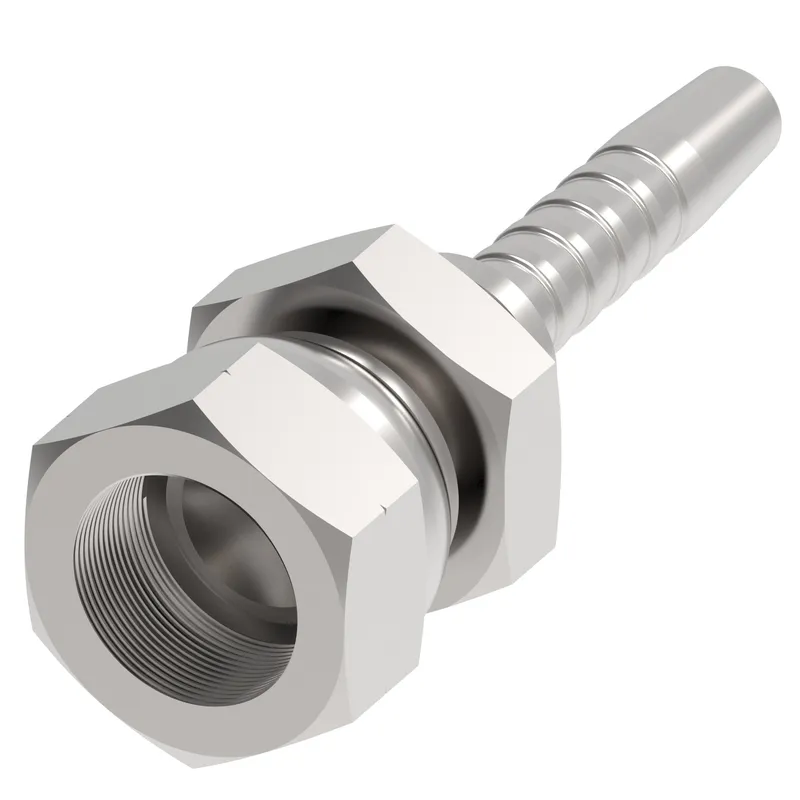

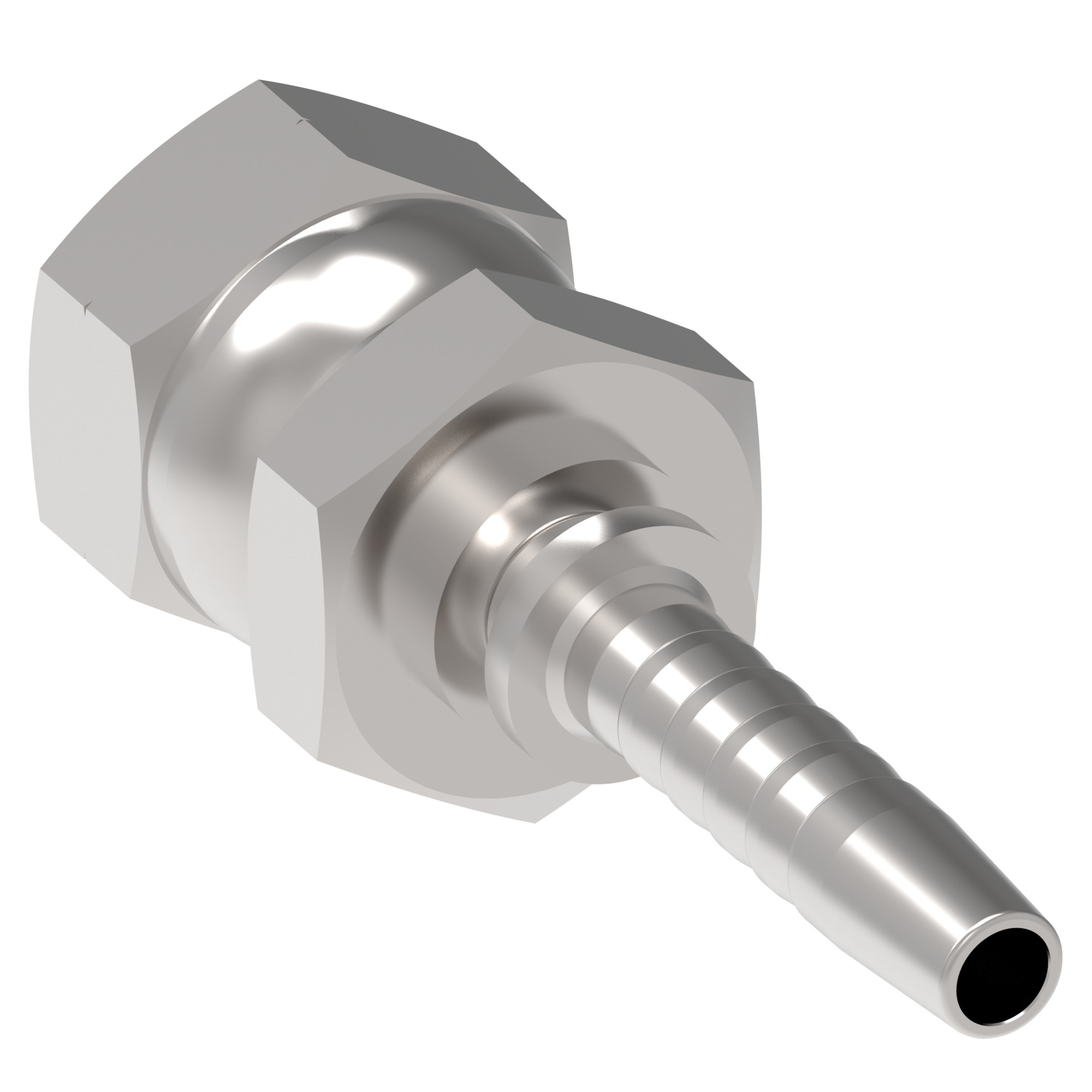

HOSE NIPPLE ASSY,2P/12,JIS-F/12,CS,STR

MPN
29611-12-12Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29611-12-12Z?

Danfoss HOSE NIPPLE ASSY,2P/12,JIS-F/12,CS,STR, manufacturer part number 29611-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.716
A dimension MM69.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.748
Compatible hose ID MM19.050
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-12
End Type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN1.259
Hex size 1 MM32.000
Hex size 2 IN1.259
Hex size 2 MM32.000
Hose cut off factor IN1.200
Hose cut off factor MM30.500
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in1.450
Product height mm36.830
Product length in3.248
Product length mm82.499
Product materialCarbon steel
Product width in1.260
Product width mm32.004
Thread sealantNo
Thread size 1G 3/4
Working pressure max BAR330
Working pressure max PSI4800

29611-12-12Z: frequently asked questions

When can 29611-12-12Z be shipped?

29611-12-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29611-12-12Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29611-12-12Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29611-12-12Z, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 29611-06-06Z – HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,STR
Danfoss
29611-06-06Z

HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,STR

Danfoss 29611-08-08Z – HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,STR
Danfoss
29611-08-08Z

HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,STR

Danfoss 29611-10-10Z – HOSE NIPPLE ASSY,2P/10,JIS-F/10,CS,STR
Danfoss
29611-10-10Z

HOSE NIPPLE ASSY,2P/10,JIS-F/10,CS,STR

Danfoss 29611-12-10Z – HOSE NIPPLE ASSY,2P/10,JIS-F/12,CS,STR
Danfoss
29611-12-10Z

HOSE NIPPLE ASSY,2P/10,JIS-F/12,CS,STR

Danfoss 29611-16-16Z – HOSE NIPPLE ASSY,2P/16,JIS-F/16,CS,STR
Danfoss
29611-16-16Z

HOSE NIPPLE ASSY,2P/16,JIS-F/16,CS,STR

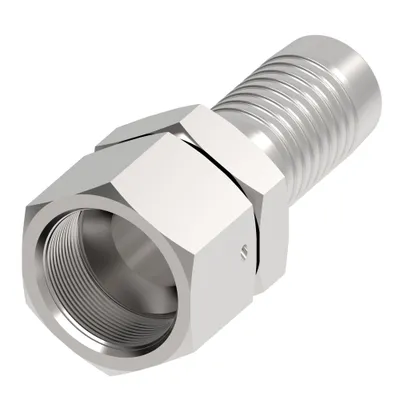

Danfoss 29611-20-20WZ – HOSE NIPPLE ASSY,2P/20,JIS-F/20,CS,STR
Danfoss
29611-20-20WZ

HOSE NIPPLE ASSY,2P/20,JIS-F/20,CS,STR

Danfoss 29611-24-24WZ – HOSE NIPPLE ASSY,2P/24,JIS-F/24,CS,STR
Danfoss
29611-24-24WZ

HOSE NIPPLE ASSY,2P/24,JIS-F/24,CS,STR

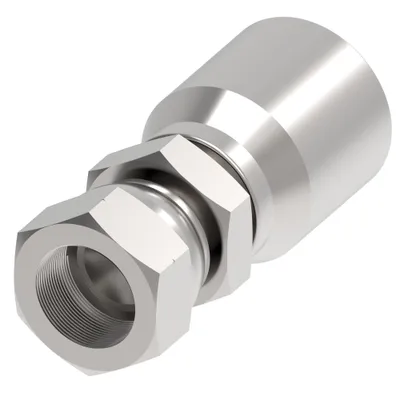

Danfoss 29611Y-06-06Z – HOSE NIPPLE ASSY,1P/06,JIS-F/06,CS,STR
