Danfoss 28691-16-06Z

HOSE NIPPLE ASSY,2P/06,KSF-F/16,CS,90D

MPN
28691-16-06Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

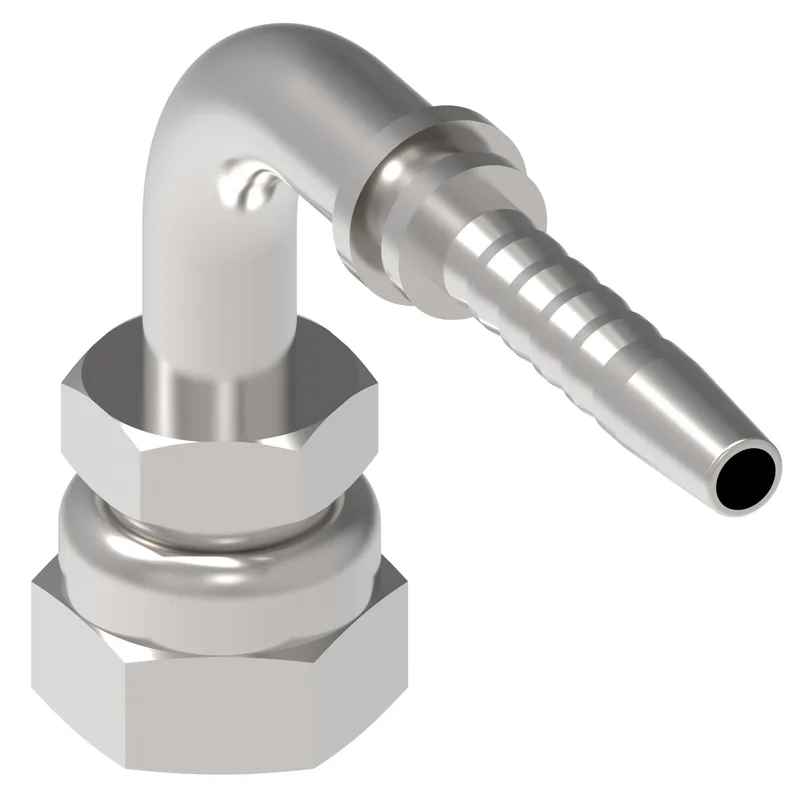

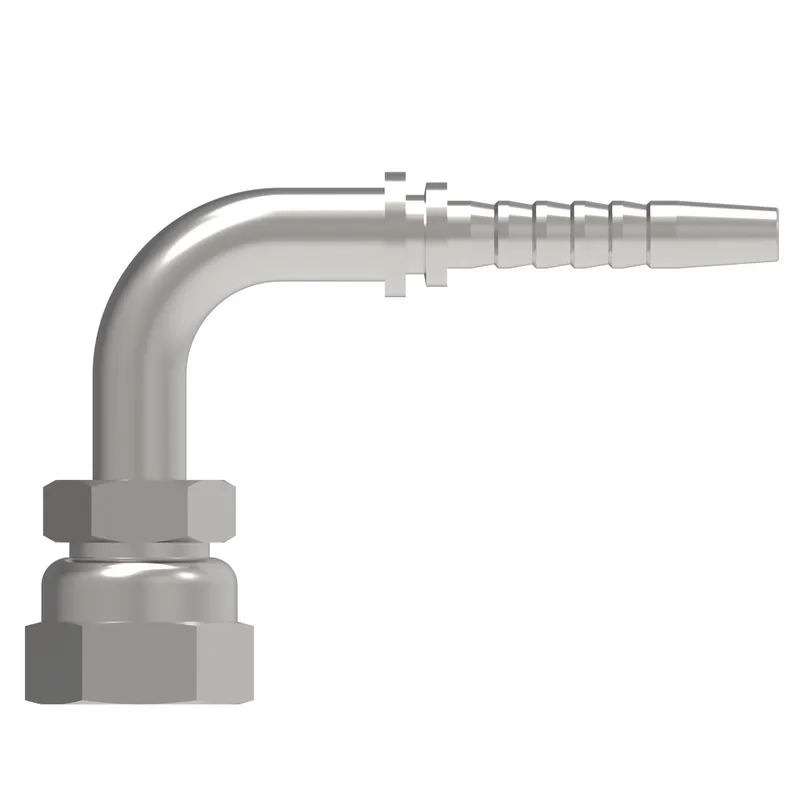

What is the Danfoss 28691-16-06Z?

Danfoss HOSE NIPPLE ASSY,2P/06,KSF-F/16,CS,90D, manufacturer part number 28691-16-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.568
A dimension MM65.250
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.374
Compatible hose ID MM9.525
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN1.820
Drop dimension MM46.25
Finish platingZinc plating
Hex size 1 IN0.866
Hex size 1 MM22.000
Hex size 2 IN0.866
Hex size 2 MM22.000
Hose cut off factor IN1.387
Hose cut off factor MM35.250
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.000
Product height in2.510
Product height mm63.754
Product length in3.002
Product length mm76.250
Product materialCarbon steel
Product width in0.866
Product width mm21.996
Thread sealantNo
Thread size 1M16x1.5

28691-16-06Z: frequently asked questions

When can 28691-16-06Z be shipped?

28691-16-06Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 28691-16-06Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 28691-16-06Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 28691-16-06Z, subject to availability and destination.
