Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product height in | Product height mm | Product length in | Product length mm | Product width mm |
|---|---|---|---|---|---|

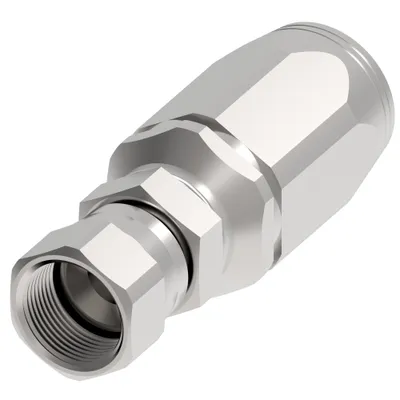

| 2RA4FJ4 | 0.940 | 23.876 | 2.640 | 67.056 | 20.637 |
| 2RA16 | 2.020 | 51.308 | 2.950 | 74.930 | 44.45 |

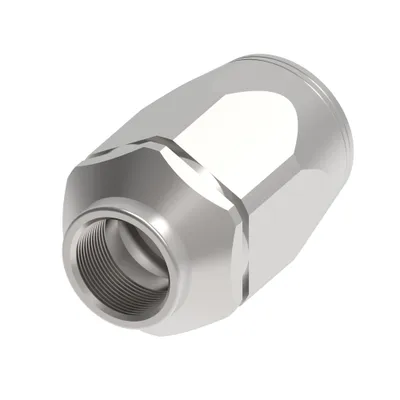

| 2RA12 | 1.730 | 43.942 | 2.470 | 62.738 | 38.1 |
| 2R8FJ8M | 1.360 | 34.544 | 2.950 | 74.930 | 29.972 |
| 2R8FJ6M | 1.220 | 30.988 | 2.780 | 70.612 | 26.924 |
| 2R6FJ6M | 1.220 | 30.988 | 2.750 | 69.850 | 26.924 |

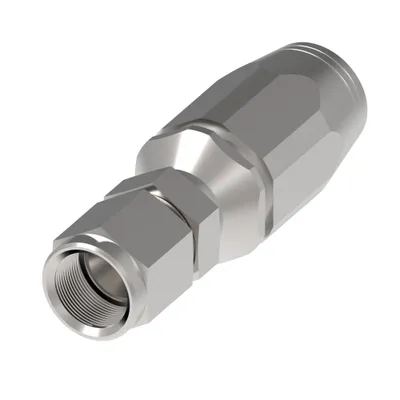

| 2R6FJ4M | 0.866 | 22.000 | 2.338 | 59.400 | 22 |
| 2R4FJ4M | 1.000 | 25.400 | 2.660 | 67.564 | 22.098 |
| 2R20FJ20M | 2.270 | 57.658 | 4.910 | 124.714 | 50.038 |

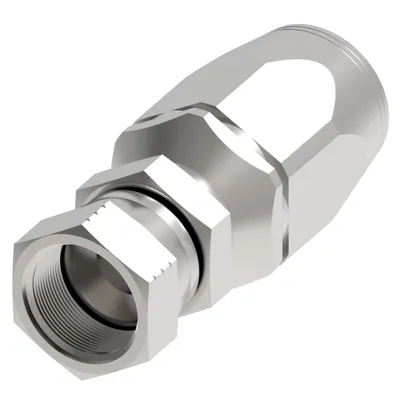

| 2R16FJ16M | 2.090 | 53.086 | 4.130 | 104.902 | 45.974 |
| 2R12FJ12M | 1.720 | 43.688 | 3.610 | 91.694 | 37.846 |
| 2R10FJ8M | 1.280 | 32.512 | 3.100 | 78.740 | 29.972 |
| 2R10FJ10M | 1.560 | 39.624 | 3.030 | 76.962 | 36.068 |
| 29691-16-16Z | 4.250 | 107.950 | 5.800 | 147.320 | 40.995 |
| 29691-12-12Z | 3.750 | 95.250 | 4.724 | 119.990 | 32.004 |
| 29691-08-08Z | 2.930 | 74.422 | 3.386 | 86.004 | 27 |
| 29691-06-06Z | 2.453 | 62.306 | 3.031 | 76.987 | 22.098 |
| 29691-06-04Z | 2.185 | 55.499 | 2.716 | 68.986 | 22.098 |
| 29691-04-04Z | 2.047 | 51.993 | 2.657 | 67.487 | 18.999 |
| 29641-16-16Z | 2.830 | 71.882 | 6.210 | 157.734 | 40.894 |
| 29641-12-12Z | 2.998 | 76.149 | 5.878 | 149.301 | 32.004 |
| 29641-08-08Z | 2.460 | 62.484 | 4.705 | 119.507 | 27 |
| 29641-06-06Z | 2.051 | 52.095 | 3.894 | 98.907 | 21.996 |
| 29611Y-12-12Z | 1.457 | 37.007 | 3.248 | 82.499 | 37.007 |
Common to all listed parts
| Thread sealant | No |
