Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor IN | Product length in | Product length mm |
|---|---|---|---|---|---|
| 28611-14-06Z | 2.007 | 51.000 | 0.826 | 2.421 | 61.493 |
| 28611-14-04Z | 1.929 | 49.000 | 0.826 | 2.343 | 59.510 |
| 28611-12-04Z | 1.889 | 48.000 | 0.787 | 2.244 | 56.997 |

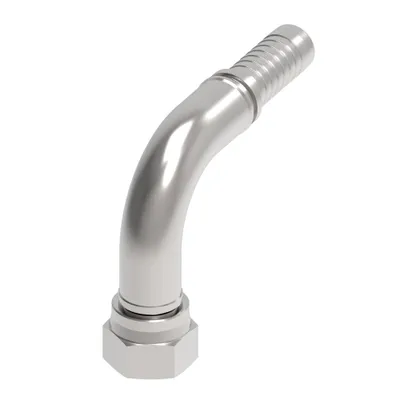

| 27891-12-12Z | 4.070 | 103.400 | 2.555 | 4.700 | 119.400 |
| 27891-10-10Z | 3.543 | 90.000 | 2.204 | 4.156 | 105.562 |
| 27891-06-06Z | 2.740 | 69.600 | 1.389 | 3.448 | 87.579 |
| 27891-06-05Z | 2.401 | 61.000 | 1.299 | 3.279 | 83.286 |
| 27818D-12-12LTZ | 3.031 | 77.000 | 1.511 | 3.594 | 91.287 |
| 27818D-06-06LTZ | 1.988 | 50.500 | 1.082 | 2.433 | 61.798 |
| 27811Y-04-04Z | 1.692 | 43.000 | 0.590 | 2.059 | 52.298 |
| 27811-12-12Z | 2.362 | 60.000 | 0.846 | 2.925 | 74.295 |
| 27811-12-10Z | 2.141 | 54.400 | 0.803 | 2.704 | 68.681 |
| 27811-08-08Z | 1.948 | 49.500 | 0.708 | 2.381 | 60.477 |
| 27811-06-06Z | 1.850 | 47.000 | 0.669 | 2.295 | 58.293 |
| 27811-06-05Z | 1.771 | 45.000 | 0.669 | 2.216 | 56.286 |
| 27810-10-10Z | 2.145 | 54.500 | 0.598 | 2.657 | 67.487 |
| 27810-10-08Z | 1.633 | 41.500 | 0.598 | 1.751 | 44.475 |
| 27810-08-08Z | 1.614 | 41.000 | 0.578 | 2.047 | 51.990 |
| 27810-08-06Z | 1.444 | 36.700 | 0.578 | 1.877 | 47.675 |
| 27810-06-06Z | 1.397 | 35.500 | 0.531 | 1.842 | 46.786 |
| 2781-8 | — | — | — | — | — |

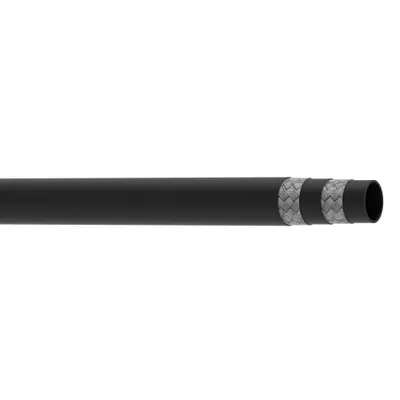

| 2781-6 | — | — | — | — | — |
| 2781-4 | — | — | — | — | — |
| 2781-32 | — | — | — | — | — |
