Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor IN | Product length in | Product length mm |
|---|---|---|---|---|---|
| 28691-14-04WZ | 2.283 | 58.000 | 1.181 | 2.650 | 67.310 |
| 28641-30-12Z | 4.586 | 116.500 | 3.070 | 5.780 | 146.812 |
| 28641-22-08Z | 3.685 | 93.600 | 2.444 | 4.768 | 121.107 |
| 28611Y-22-08Z | 2.244 | 57.000 | 1.003 | 2.795 | 70.993 |
| 28611Y-18-06Z | 2.125 | 54.000 | 0.944 | 2.579 | 65.506 |
| 28611Y-14-04Z | 1.929 | 49.000 | 0.826 | 2.343 | 59.512 |
| 28611-42-24WZ | 4.251 | 108.000 | 1.574 | 4.992 | 126.797 |
| 28611-42-20WZ | 3.740 | 95.000 | 1.614 | 4.480 | 113.792 |
| 28611-36-20Z | 3.523 | 89.500 | 1.397 | 4.311 | 109.499 |
| 28611-36-16Z | 3.208 | 81.500 | 1.358 | 3.996 | 101.498 |
| 28611-33-16Z | 3.110 | 79.000 | 1.259 | 3.949 | 100.305 |
| 28611-30-12Z | 2.637 | 67.000 | 1.122 | 3.358 | 85.293 |

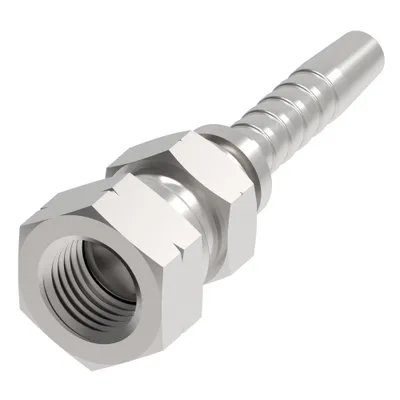

| 28611-24-12Z | 2.696 | 68.500 | 1.181 | 3.287 | 83.489 |
| 28611-24-10Z | 2.440 | 62.000 | 1.102 | 3.031 | 76.987 |
| 28611-24-08Z | 2.322 | 59.000 | 1.082 | 2.913 | 73.990 |
| 28611-22-08Z | 2.244 | 57.000 | 1.003 | 2.795 | 70.993 |
| 28611-20-08Z | 2.362 | 60.000 | 1.122 | 2.835 | 72.009 |
| 28611-20-06Z | 2.283 | 58.000 | 1.102 | 2.755 | 69.977 |
| 28611-18-08Z | 2.204 | 56.000 | 0.964 | 2.657 | 67.487 |
| 28611-18-06Z | 2.125 | 54.000 | 0.944 | 2.579 | 65.506 |
| 28611-18-04Z | 2.086 | 53.000 | 0.984 | 2.539 | 64.490 |
| 28611-16-06Z | 2.125 | 54.000 | 0.944 | 2.520 | 64.008 |
| 28611-16-05Z | 2.047 | 52.000 | 0.944 | 2.040 | 51.816 |
| 28611-16-04Z | 2.047 | 52.000 | 0.944 | 2.441 | 62.001 |
Common to all listed parts
| Construction Style | Crimp |
| Finish plating | Zinc plating |
| Product material | Carbon steel |
| Thread sealant | No |
