Danfoss 28691-14-04Z

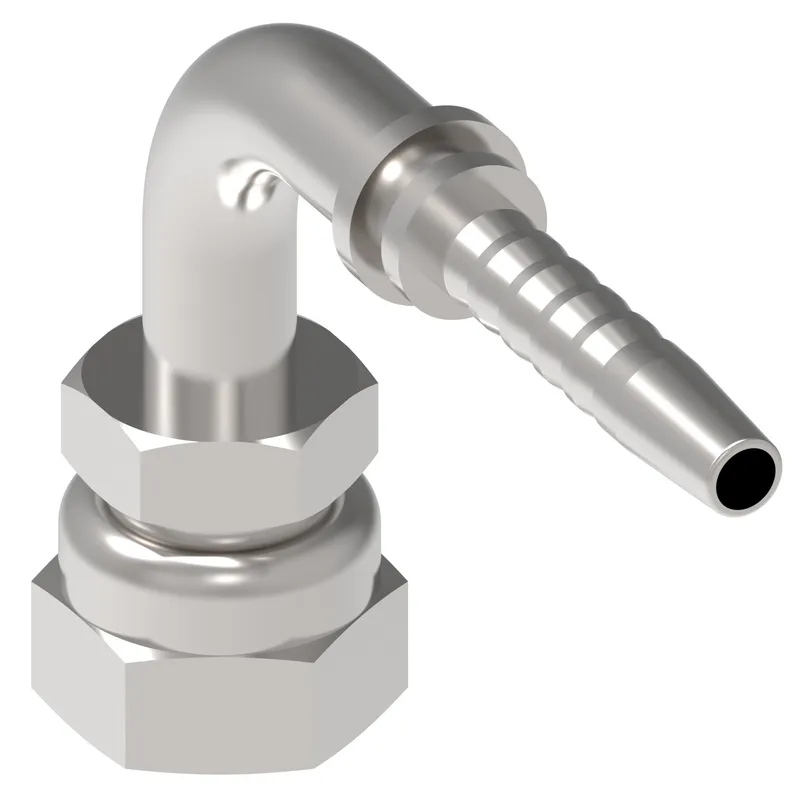

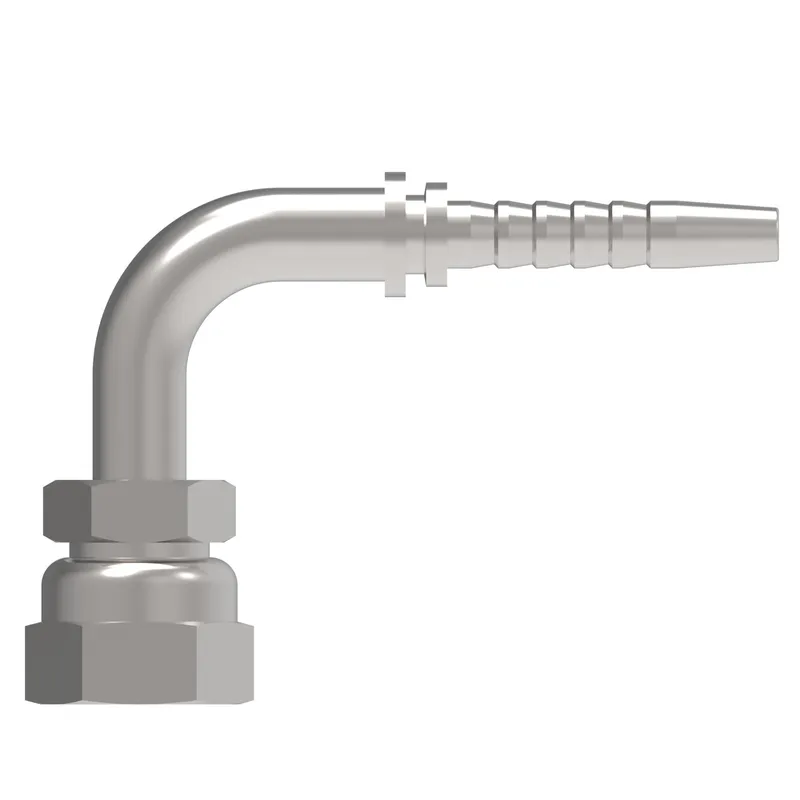

HOSE NIPPLE ASSY,2P/04,KSF-F/14,CS,90D

MPN
28691-14-04Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 28691-14-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,KSF-F/14,CS,90D, manufacturer part number 28691-14-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.283
A dimension MM58.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.251
Compatible hose ID MM6.350
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN1.496
Drop dimension MM38.00
Finish platingZinc plating
Hex size 1 IN0.748
Hex size 1 MM19.000
Hex size 2 IN0.669
Hex size 2 MM17.000
Hose cut off factor IN1.181
Hose cut off factor MM30.000
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in2.146
Product height mm54.508
Product length in2.657
Product length mm67.487
Product materialCarbon steel
Product width in0.748
Product width mm18.999
Thread sealantNo
Thread size 1M14x1.5
