Danfoss 29611-24-24WZ

HOSE NIPPLE ASSY,2P/24,JIS-F/24,CS,STR

MPN
29611-24-24WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

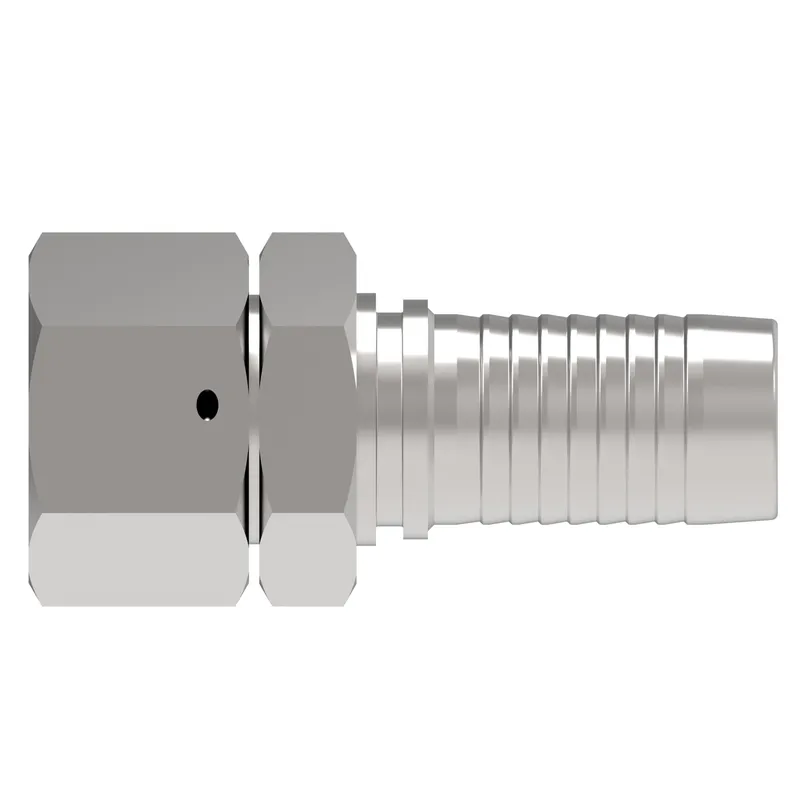

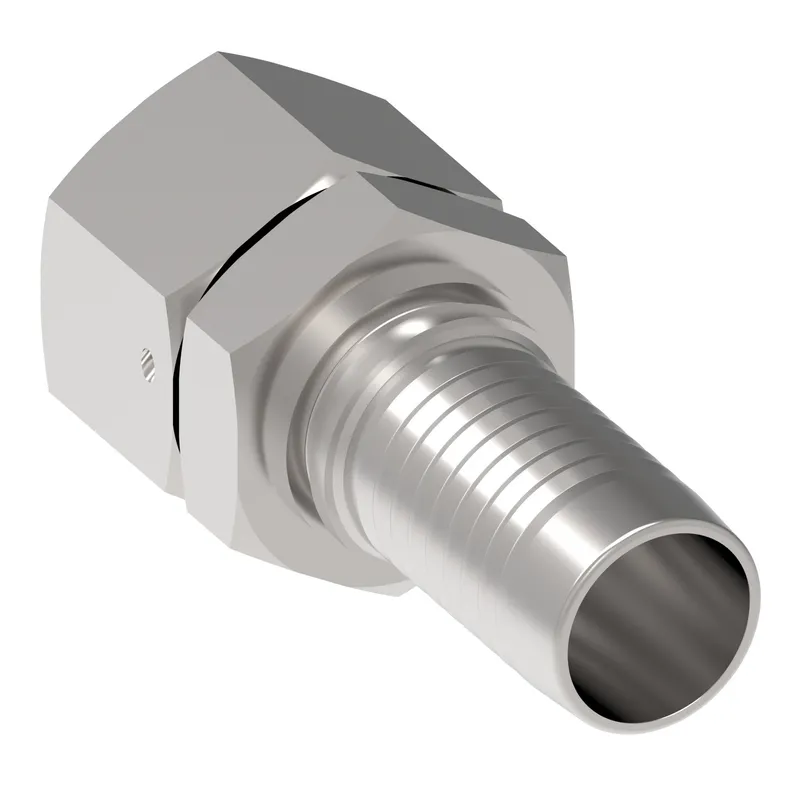

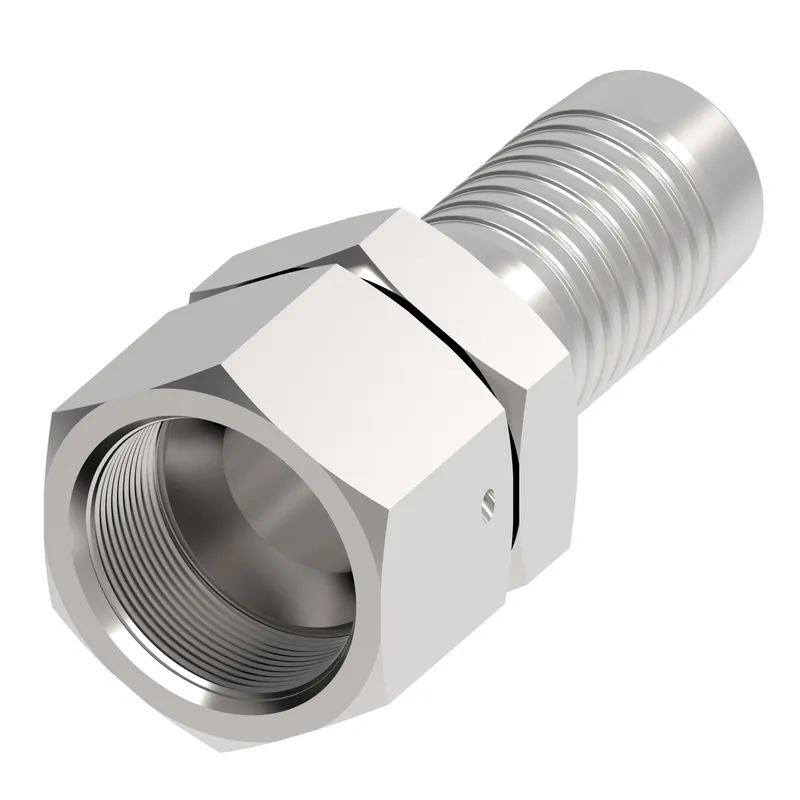

What is the Danfoss 29611-24-24WZ?

Danfoss HOSE NIPPLE ASSY,2P/24,JIS-F/24,CS,STR, manufacturer part number 29611-24-24WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.389
A dimension MM111.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-24
End Type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN2.165
Hex size 1 MM55.000
Hex size 2 IN2.165
Hex size 2 MM55.000
Hose cut off factor IN1.712
Hose cut off factor MM43.500
Hose size-24
Inside diameter IN1.259
Inside diameter MM32.000
Product height in2.165
Product height mm54.991
Product length in5.138
Product length mm130.505
Product materialCarbon steel
Product width in2.165
Product width mm54.991
Thread sealantNo
Thread size 1G 1 1/2
Working pressure max BAR138
Working pressure max PSI2000

29611-24-24WZ: frequently asked questions

When can 29611-24-24WZ be shipped?

29611-24-24WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29611-24-24WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29611-24-24WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29611-24-24WZ, subject to availability and destination.
