Danfoss 29641-16-16Z

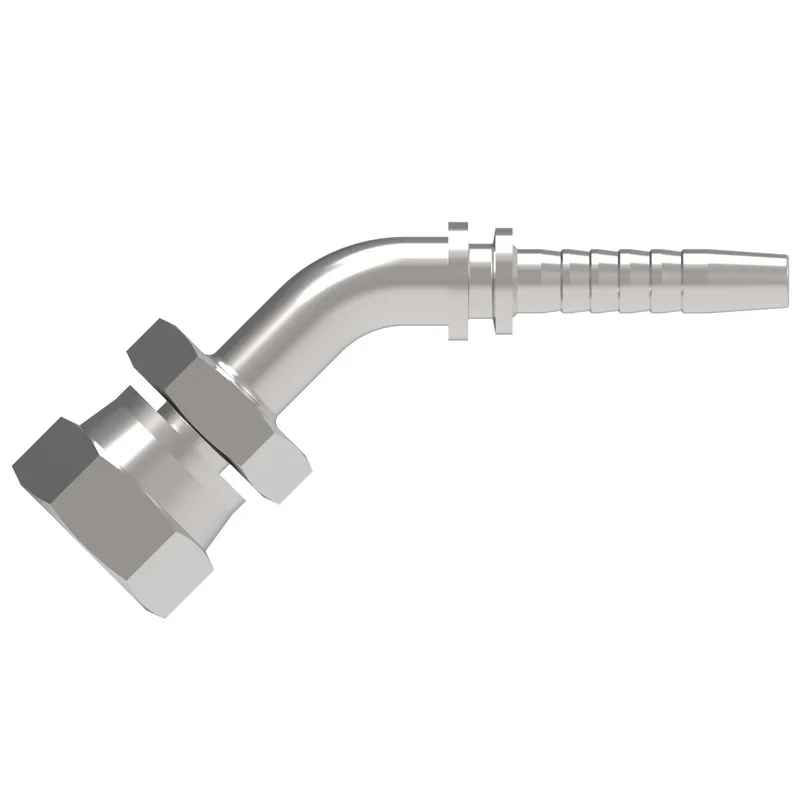

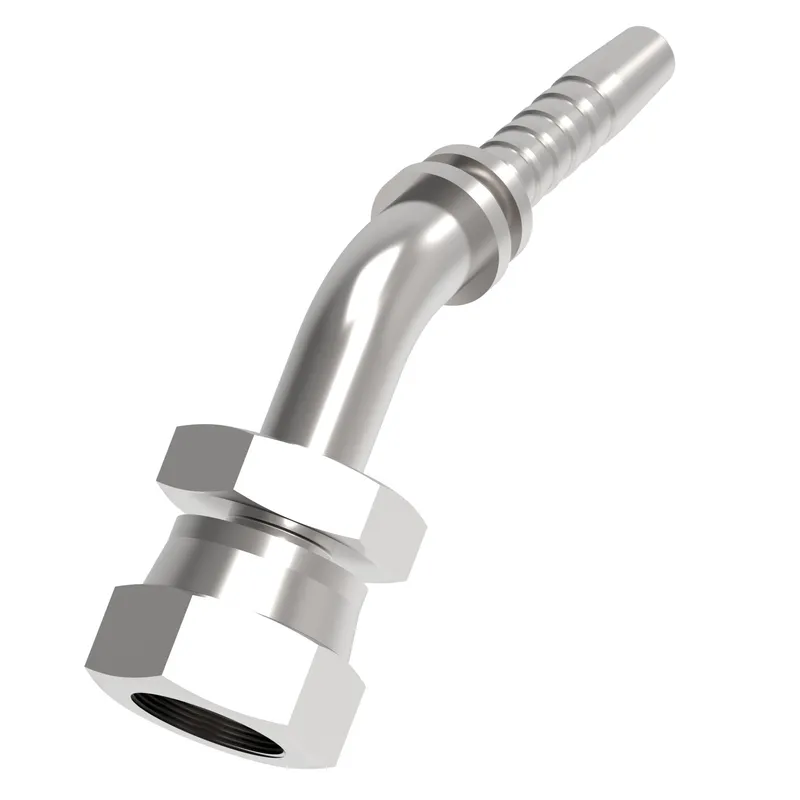

HOSE NIPPLE ASSY,2P/16,JIS-F/16,CS,45D

MPN
29641-16-16Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29641-16-16Z?

Danfoss HOSE NIPPLE ASSY,2P/16,JIS-F/16,CS,45D, manufacturer part number 29641-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.405
A dimension MM137.300
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
Drop dimension IN1.417
Drop dimension MM36.00
End size 1-16
End Type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN1.614
Hex size 1 MM41.000
Hex size 2 IN1.610
Hex size 2 MM40.894
Hose cut off factor IN1.417
Hose cut off factor MM90.300
Hose size-16
Inside diameter IN0.826
Inside diameter MM21.000
Product height in2.830
Product height mm71.882
Product length in6.210
Product length mm157.734
Product materialCarbon steel
Product width in1.610
Product width mm40.894
Thread sealantNo
Thread size 1G 1
Working pressure max BAR280
Working pressure max PSI4050

29641-16-16Z: frequently asked questions

When can 29641-16-16Z be shipped?

29641-16-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29641-16-16Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29641-16-16Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29641-16-16Z, subject to availability and destination.
