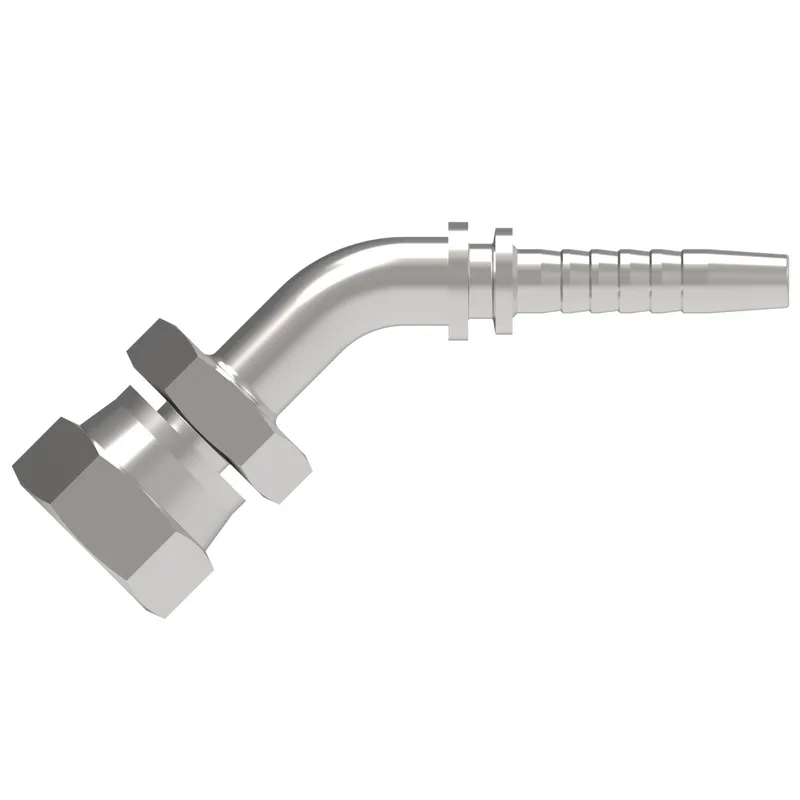

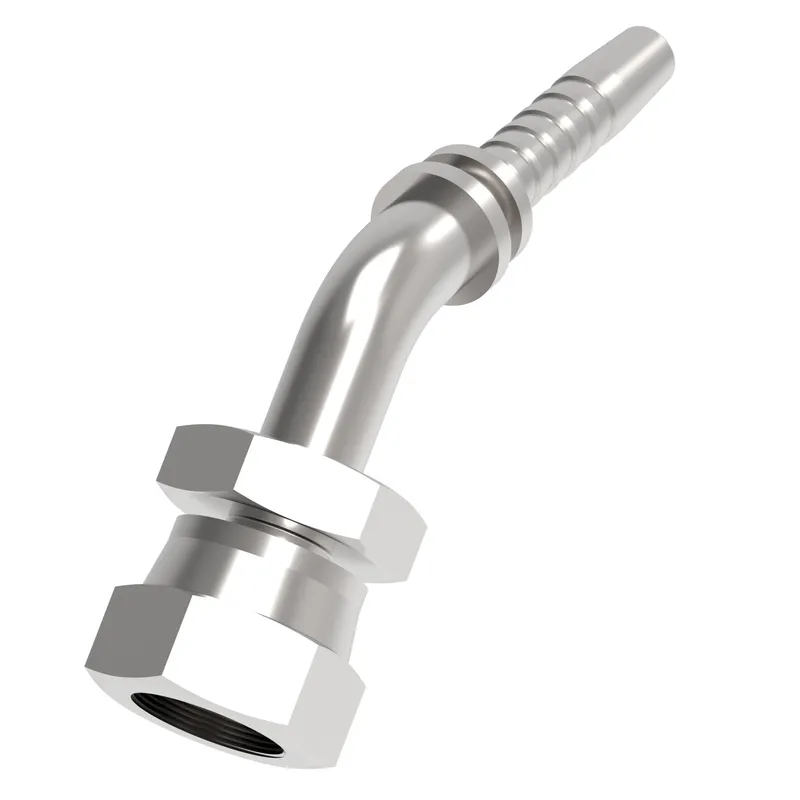

Danfoss 29641-06-06Z

HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,45D

MPN
29641-06-06Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29641-06-06Z?

Danfoss HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,45D, manufacturer part number 29641-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.106
A dimension MM78.900
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.374
Compatible hose ID MM9.525
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN0.968
Drop dimension MM24.60
End size 1-6
End Type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN0.866
Hex size 1 MM22.000
Hex size 2 IN0.866
Hex size 2 MM21.996
Hose cut off factor IN1.925
Hose cut off factor MM48.900
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.000
Product height in2.051
Product height mm52.095
Product length in3.894
Product length mm98.907
Product materialCarbon steel
Product width in0.866
Product width mm21.996
Thread sealantNo
Thread size 1G 3/8
Working pressure max BAR400
Working pressure max PSI5800

29641-06-06Z: frequently asked questions

When can 29641-06-06Z be shipped?

29641-06-06Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29641-06-06Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29641-06-06Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29641-06-06Z, subject to availability and destination.
