Danfoss 29691-06-06Z

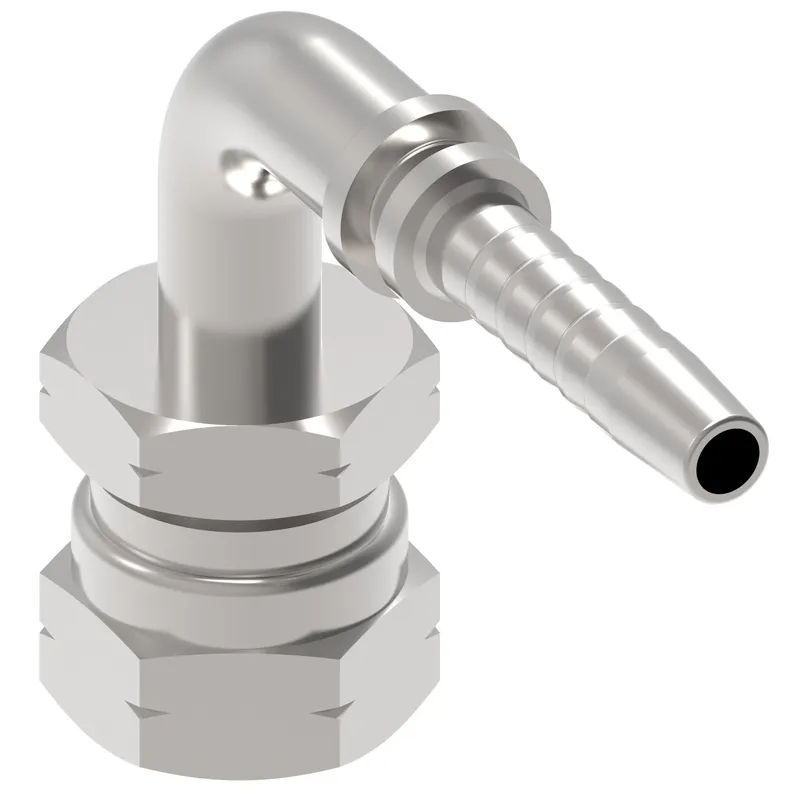

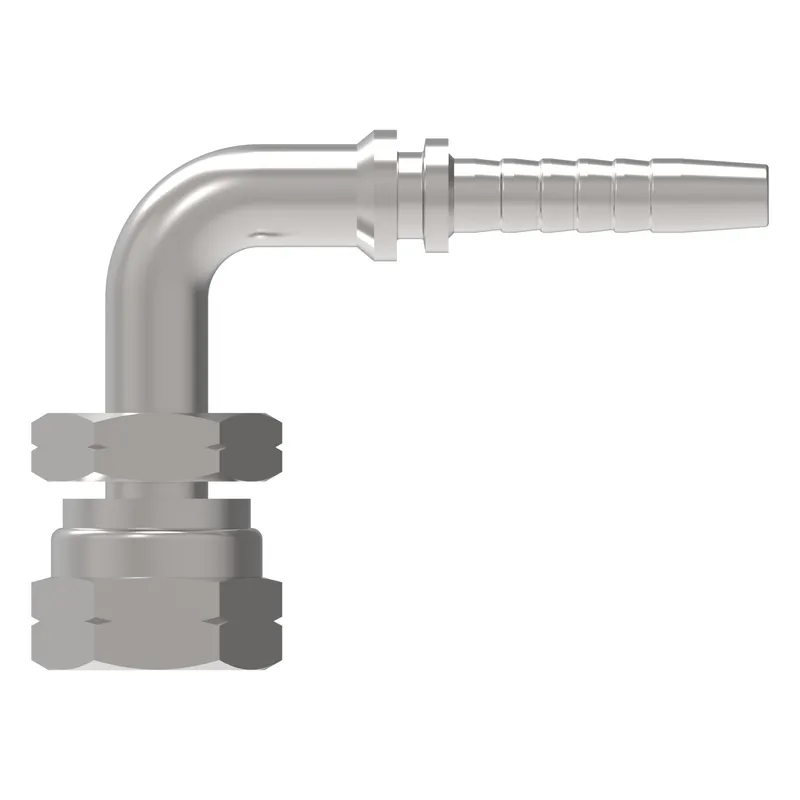

HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,90D

MPN
29691-06-06Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29691-06-06Z?

Danfoss HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,90D, manufacturer part number 29691-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.570
A dimension MM65.300
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.374
Compatible hose ID MM9.525
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN1.803
Drop dimension MM45.80
End size 1-6
End Type 1Female BSPP DKO swivel 60 deg.
Hex size 1 IN0.866
Hex size 1 MM22.000
Hex size 2 IN0.866
Hex size 2 MM22.000
Hose cut off factor IN1.389
Hose cut off factor MM35.300
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.000
Product height in2.453
Product height mm62.306
Product length in3.031
Product length mm76.987
Product materialCarbon steel
Product width in0.870
Product width mm22.098
Thread sealantNo
Thread size 1G 3/8
Working pressure max BAR400
Working pressure max PSI5800

29691-06-06Z: frequently asked questions

When can 29691-06-06Z be shipped?

29691-06-06Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29691-06-06Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29691-06-06Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29691-06-06Z, subject to availability and destination.
