Danfoss 29611Y-12-12Z

HOSE NIPPLE ASSY,1P/12,JIS-F/12,CS,STR

MPN
29611Y-12-12Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

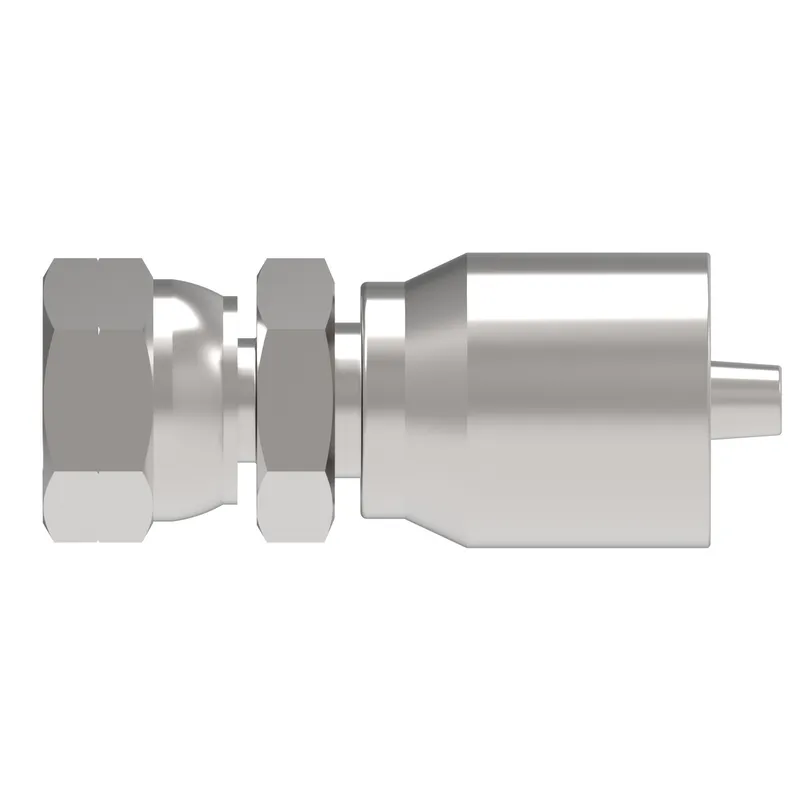

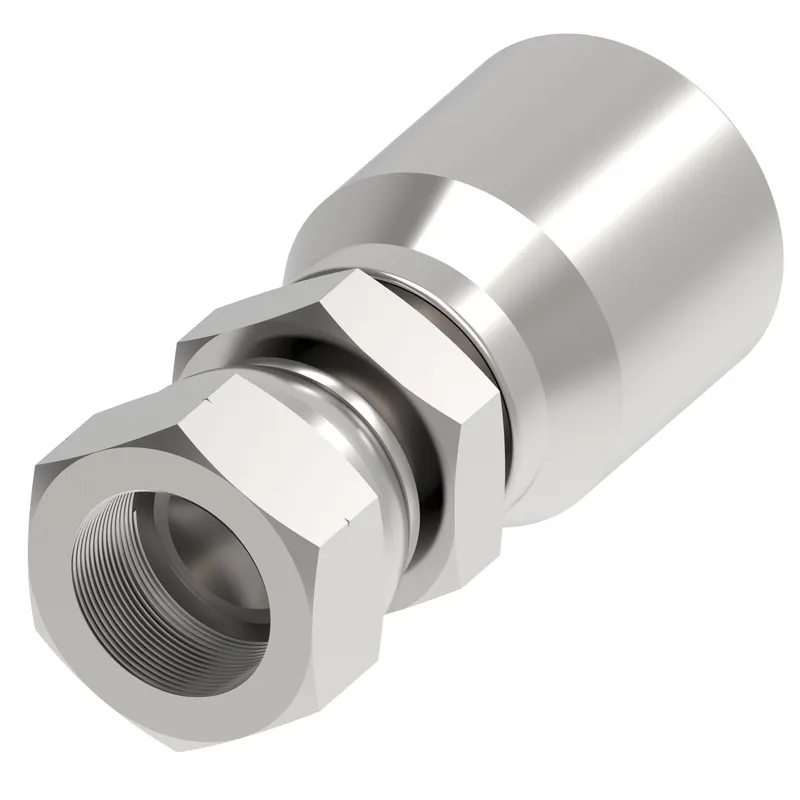

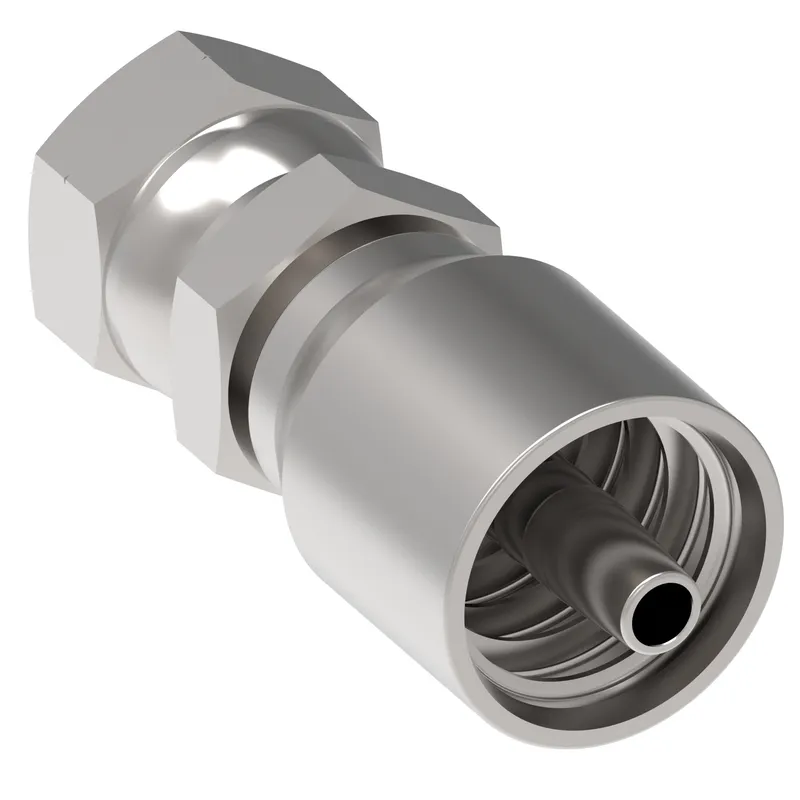

What is the Danfoss 29611Y-12-12Z?

Danfoss HOSE NIPPLE ASSY,1P/12,JIS-F/12,CS,STR, manufacturer part number 29611Y-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.716
A dimension MM69.000
Angle shapeStraight
Compatible hose ID IN0.748
Construction StyleCrimp
End size 1-12
End Type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN1.259
Hex size 1 MM32.000
Hex size 2 IN1.259
Hex size 2 MM32.000
Hose cut off factor IN1.200
Hose cut off factor MM30.500
Inside diameter IN0.590
Inside diameter MM15.000
Product height in1.457
Product height mm37.007
Product length in3.248
Product length mm82.499
Product materialCarbon steel
Product width in1.457
Product width mm37.007
Thread sealantNo
Thread size 1G 3/4
Working pressure max BAR330
Working pressure max PSI4800

29611Y-12-12Z: frequently asked questions

When can 29611Y-12-12Z be shipped?

29611Y-12-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29611Y-12-12Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29611Y-12-12Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29611Y-12-12Z, subject to availability and destination.
