Danfoss 29641-08-08Z

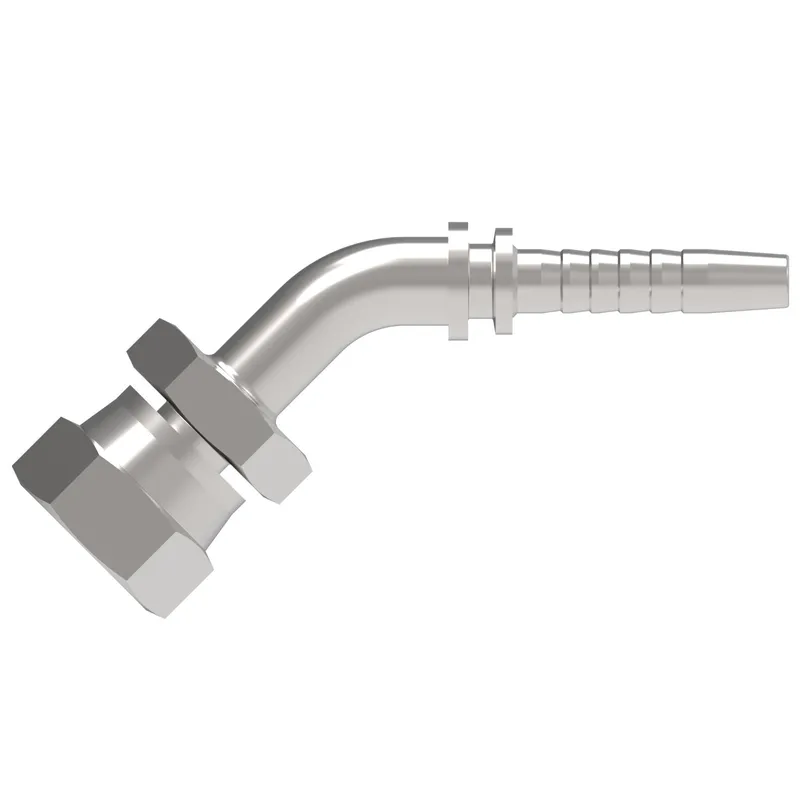

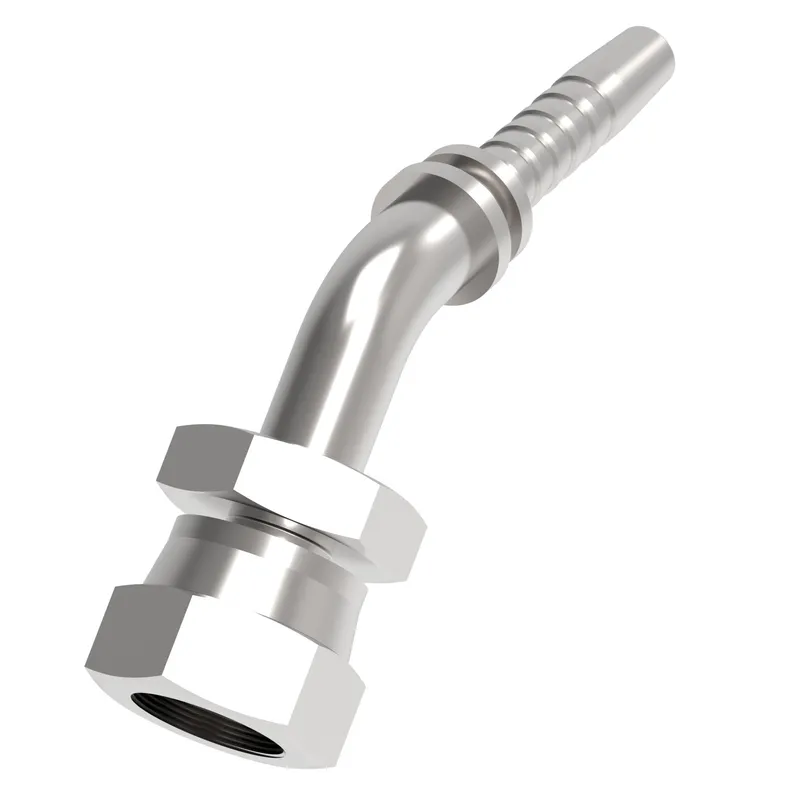

HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,45D

MPN
29641-08-08Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29641-08-08Z?

Danfoss HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,45D, manufacturer part number 29641-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.700
A dimension MM94.000
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN1.082
Drop dimension MM27.50
End size 1-8
End Type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN1.062
Hex size 1 MM27.000
Hex size 2 IN1.063
Hex size 2 MM27.000
Hose cut off factor IN2.460
Hose cut off factor MM62.500
Hose size-8
Inside diameter IN0.390
Inside diameter MM10.000
Product height in2.460
Product height mm62.484
Product length in4.705
Product length mm119.507
Product materialCarbon steel
Product width in1.063
Product width mm27
Thread sealantNo
Thread size 1G 1/2
Working pressure max BAR360
Working pressure max PSI5300
