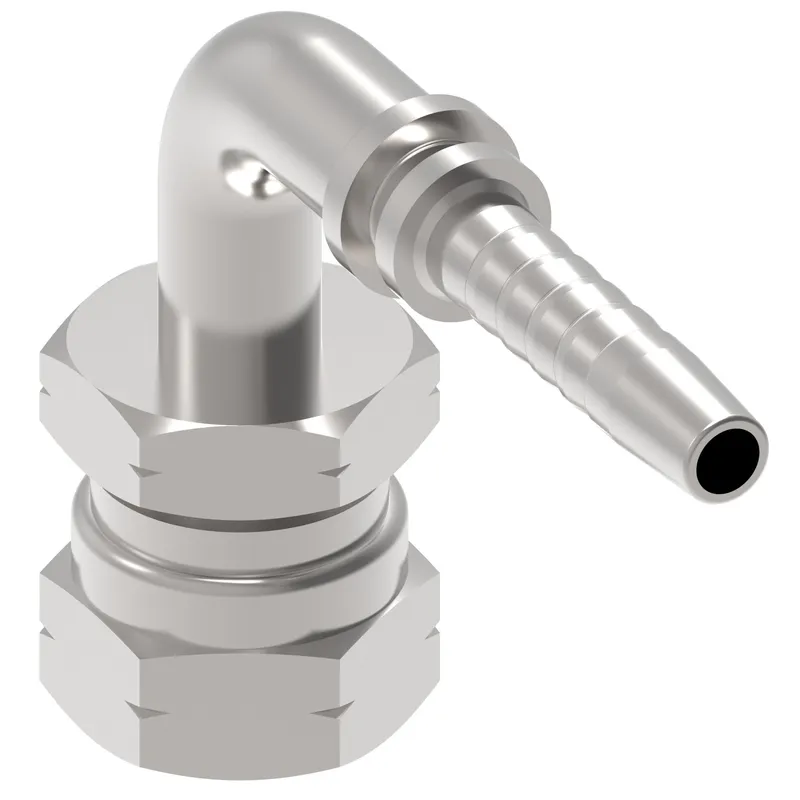

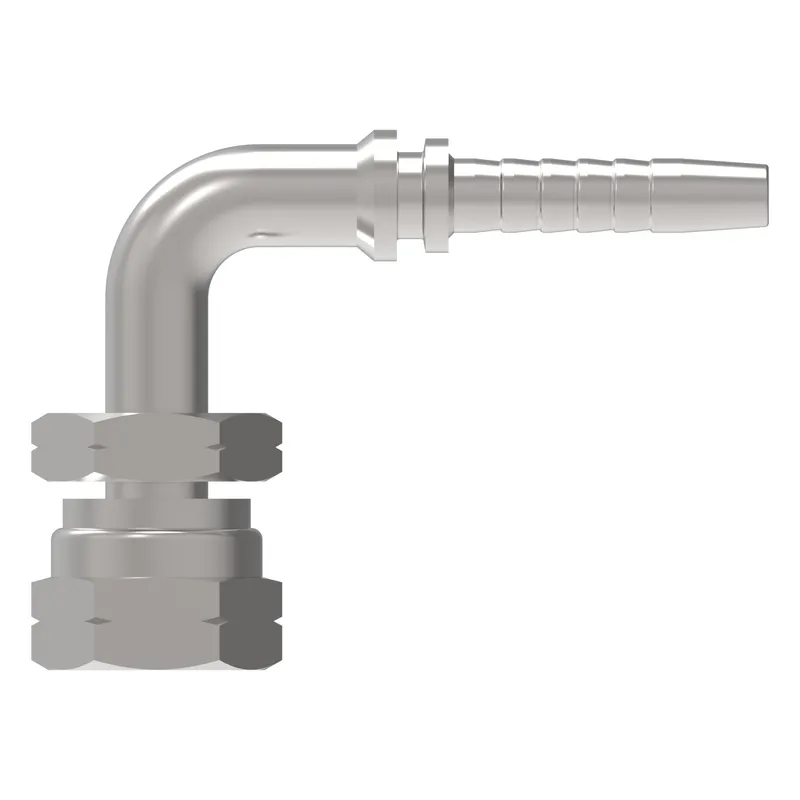

Danfoss 29691-08-08Z

HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,90D

MPN
29691-08-08Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29691-08-08Z?

Danfoss HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,90D, manufacturer part number 29691-08-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.854
A dimension MM72.500
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN2.086
Drop dimension MM53.00
End size 1-8
End Type 1Female BSPP DKO swivel 60 deg.
Hex size 1 IN1.062
Hex size 1 MM27.000
Hex size 2 IN1.062
Hex size 2 MM27.000
Hose cut off factor IN1.614
Hose cut off factor MM41.000
Hose size-8
Inside diameter IN0.390
Inside diameter MM10.000
Product height in2.930
Product height mm74.422
Product length in3.386
Product length mm86.004
Product materialCarbon steel
Product width in1.063
Product width mm27
Thread sealantNo
Thread size 1G 1/2
Working pressure max BAR360
Working pressure max PSI5300

29691-08-08Z: frequently asked questions

When can 29691-08-08Z be shipped?

29691-08-08Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29691-08-08Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29691-08-08Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29691-08-08Z, subject to availability and destination.
