Danfoss 29691-04-04Z

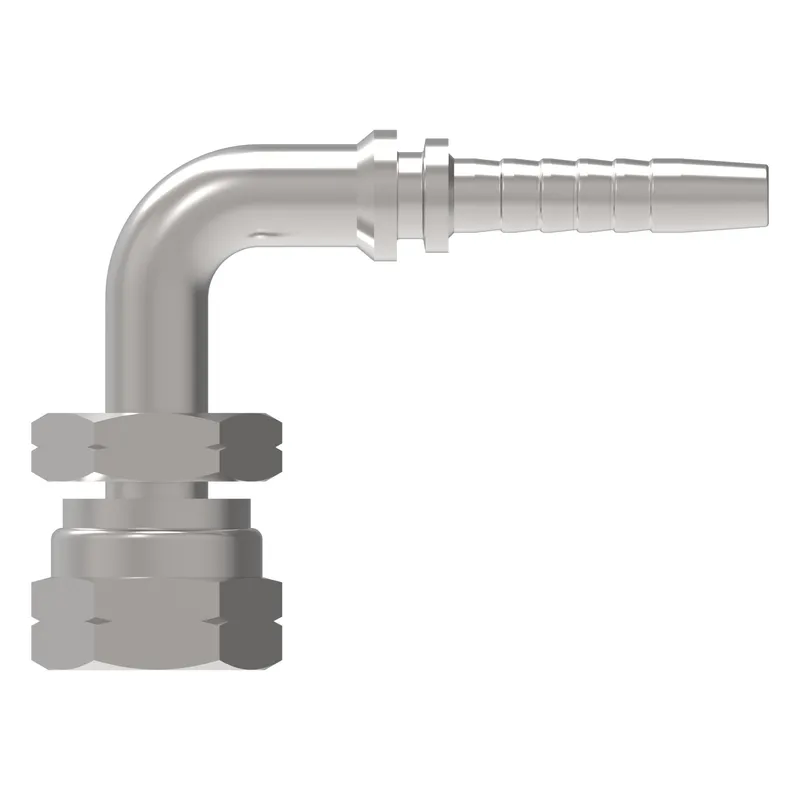

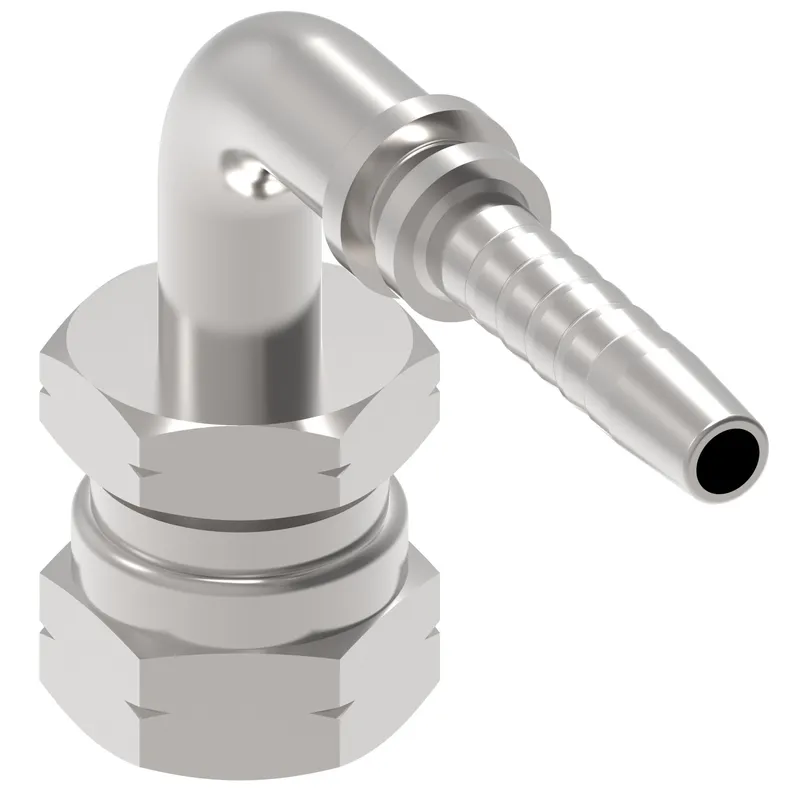

HOSE NIPPLE ASSY,2P/04,JIS-F/04,CS,90D

MPN
29691-04-04Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29691-04-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,JIS-F/04,CS,90D, manufacturer part number 29691-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.283
A dimension MM58.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.251
Compatible hose ID MM6.350
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN1.496
Drop dimension MM38.00
End size 1-4
End Type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN0.748
Hex size 1 MM19.000
Hex size 2 IN0.748
Hex size 2 MM19.000
Hose cut off factor IN1.181
Hose cut off factor MM30.000
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in2.047
Product height mm51.993
Product length in2.657
Product length mm67.487
Product materialCarbon steel
Product width in0.748
Product width mm18.999
Thread sealantNo
Thread size 1G 1/4
Working pressure max BAR450
Working pressure max PSI6550

29691-04-04Z: frequently asked questions

When can 29691-04-04Z be shipped?

29691-04-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29691-04-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29691-04-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29691-04-04Z, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 29641-06-06Z – HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,45D
Danfoss
29641-06-06Z

HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,45D

Danfoss 29641-08-08Z – HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,45D
Danfoss
29641-08-08Z

HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,45D

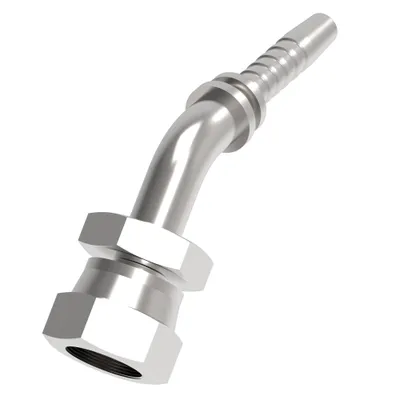

Danfoss 29641-12-12Z – HOSE NIPPLE ASSY,2P/12,JIS-F/12,CS,45D
Danfoss
29641-12-12Z

HOSE NIPPLE ASSY,2P/12,JIS-F/12,CS,45D

Danfoss 29641-16-16Z – HOSE NIPPLE ASSY,2P/16,JIS-F/16,CS,45D
Danfoss
29641-16-16Z

HOSE NIPPLE ASSY,2P/16,JIS-F/16,CS,45D

Danfoss 29691-06-04Z – HOSE NIPPLE ASSY,2P/04,JIS-F/06,CS,90D
Danfoss
29691-06-04Z

HOSE NIPPLE ASSY,2P/04,JIS-F/06,CS,90D

Danfoss 29691-06-06Z – HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,90D
Danfoss
29691-06-06Z

HOSE NIPPLE ASSY,2P/06,JIS-F/06,CS,90D

Danfoss 29691-08-08Z – HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,90D
Danfoss
29691-08-08Z

HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,90D

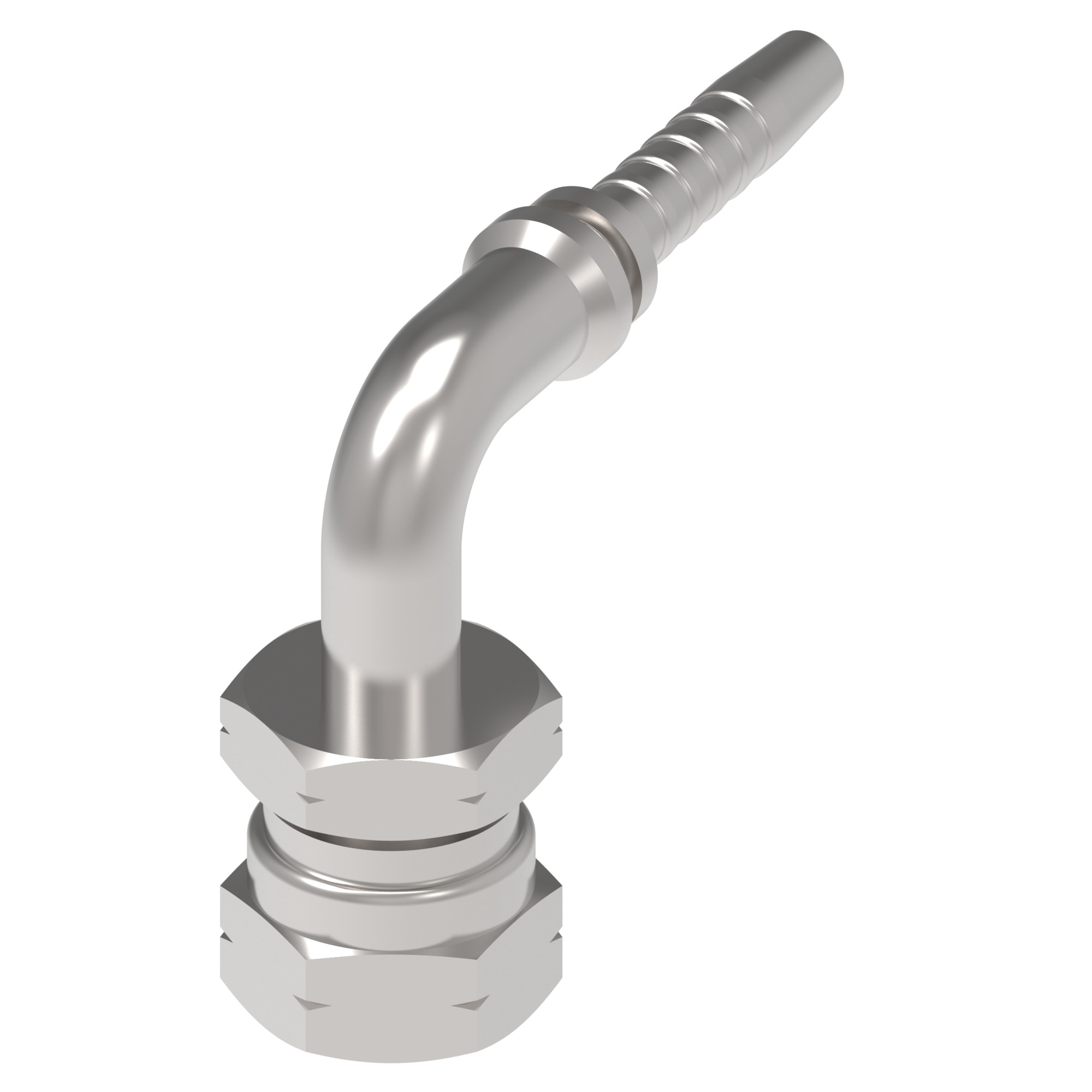

Danfoss 29691-12-12Z – HOSE NIPPLE ASSY,2P/12,JIS-F/12,CS,90D
