Danfoss 29641-12-12Z

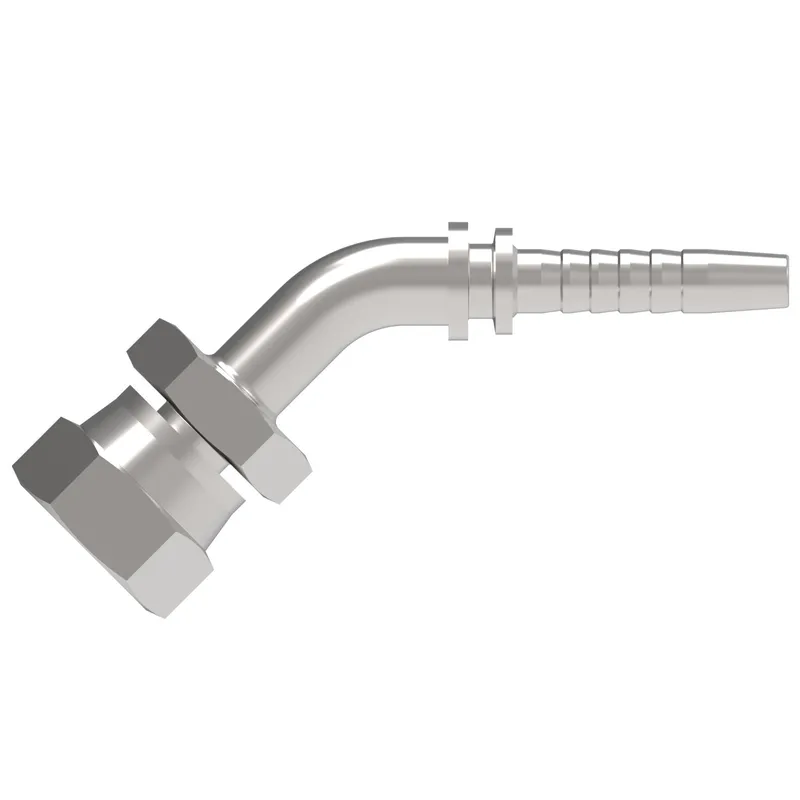

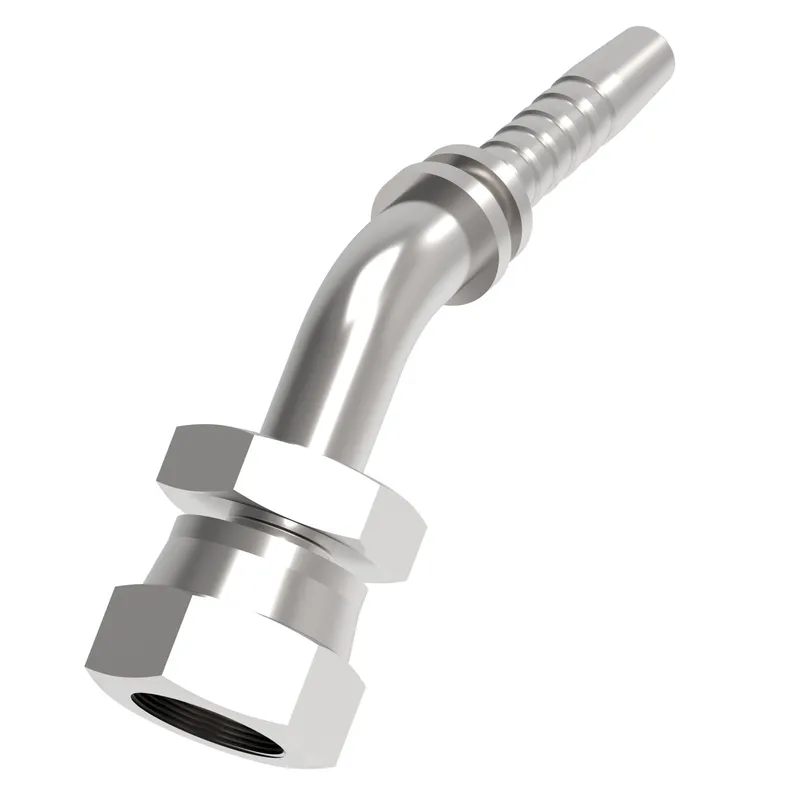

HOSE NIPPLE ASSY,2P/12,JIS-F/12,CS,45D

MPN
29641-12-12Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 29641-12-12Z?

Danfoss HOSE NIPPLE ASSY,2P/12,JIS-F/12,CS,45D, manufacturer part number 29641-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.716
A dimension MM119.800
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.748
Compatible hose ID MM19.050
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN1.334
Drop dimension MM33.90
End size 1-12
End Type 1Female BSPP DKO swivel 60 deg.
Finish platingZinc plating
Hex size 1 IN1.259
Hex size 1 MM32.000
Hex size 2 IN1.260
Hex size 2 MM32.004
Hose cut off factor IN3.200
Hose cut off factor MM81.300
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in2.998
Product height mm76.149
Product length in5.878
Product length mm149.301
Product materialCarbon steel
Product width in1.260
Product width mm32.004
Thread sealantNo
Thread size 1G 3/4
Working pressure max BAR330
Working pressure max PSI4800

29641-12-12Z: frequently asked questions

When can 29641-12-12Z be shipped?

29641-12-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 29641-12-12Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 29641-12-12Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 29641-12-12Z, subject to availability and destination.
