Danfoss 4203-10-8S

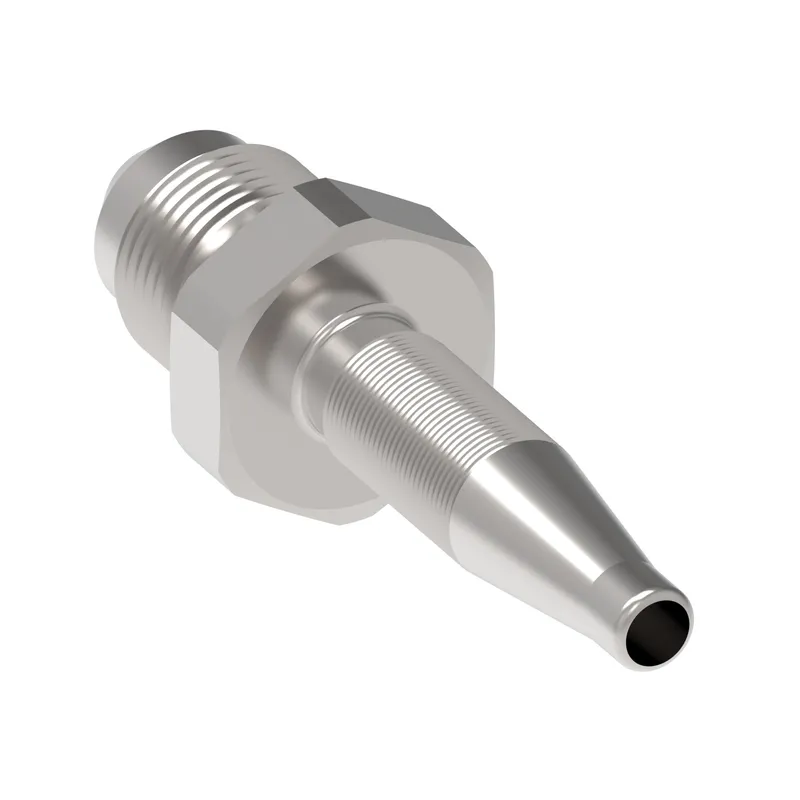

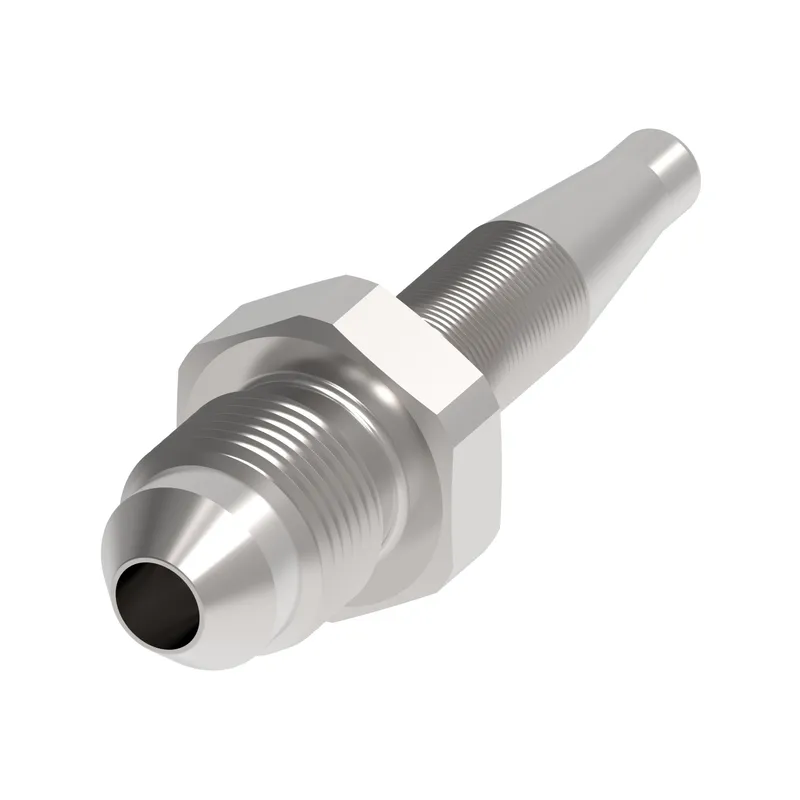

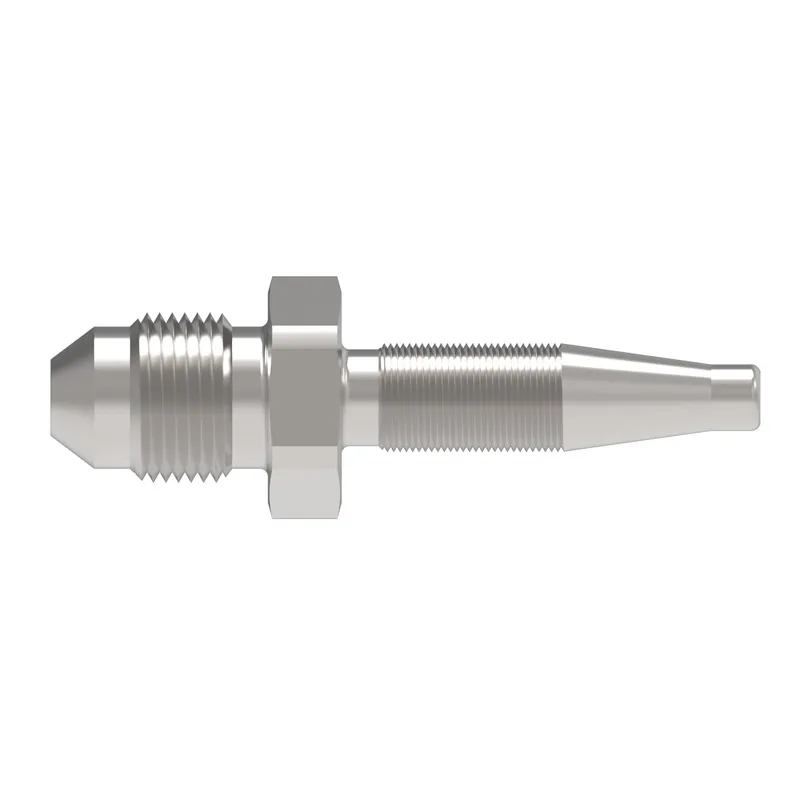

HOSE INSERT, 1R/08, JIC-F/10, CS, STR

MPN
4203-10-8S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4203-10-8S?

Danfoss HOSE INSERT, 1R/08, JIC-F/10, CS, STR, manufacturer part number 4203-10-8S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.140
A dimension MM79.760
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleReusable
End size 1-10
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 2 IN0.875
Hex size 2 MM22.225
Hose cut off factor IN2.057
Hose cut off factor MM52.260
Hose size-8
Inside diameter IN0.440
Inside diameter MM11.280
Product height in0.873
Product height mm22.174
Product length in3.140
Product length mm79.756
Product materialCarbon steel
Product width in0.875
Product width mm22.225
Thread sealantNo
Thread size 17/8-14 UNF
Working pressure max BAR350.00
Working pressure max PSI5100.00
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

4203-10-8S: frequently asked questions

When can 4203-10-8S be shipped?

4203-10-8S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4203-10-8S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4203-10-8S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4203-10-8S, subject to availability and destination.
