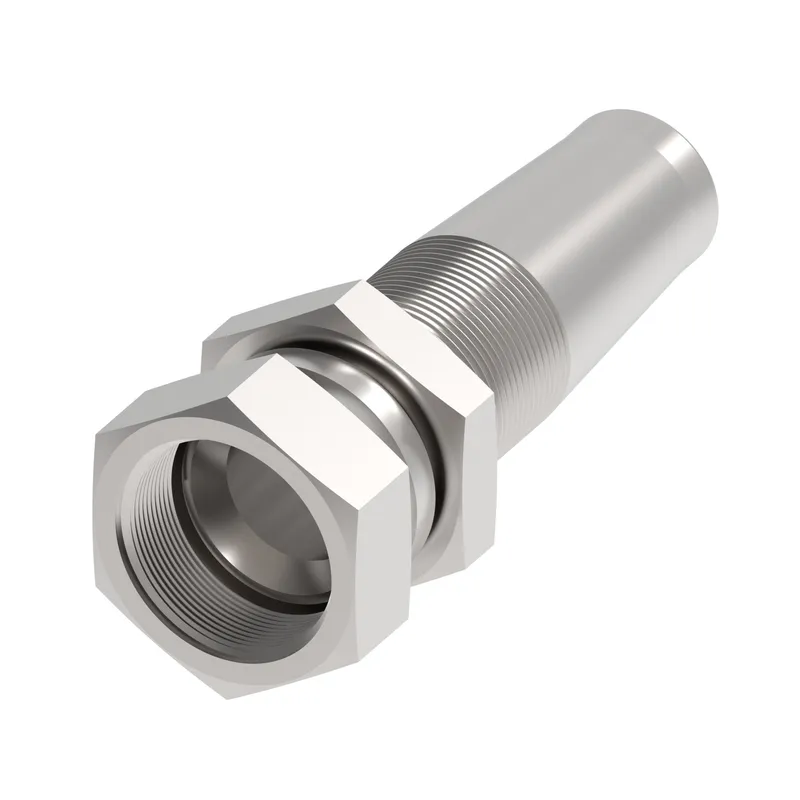

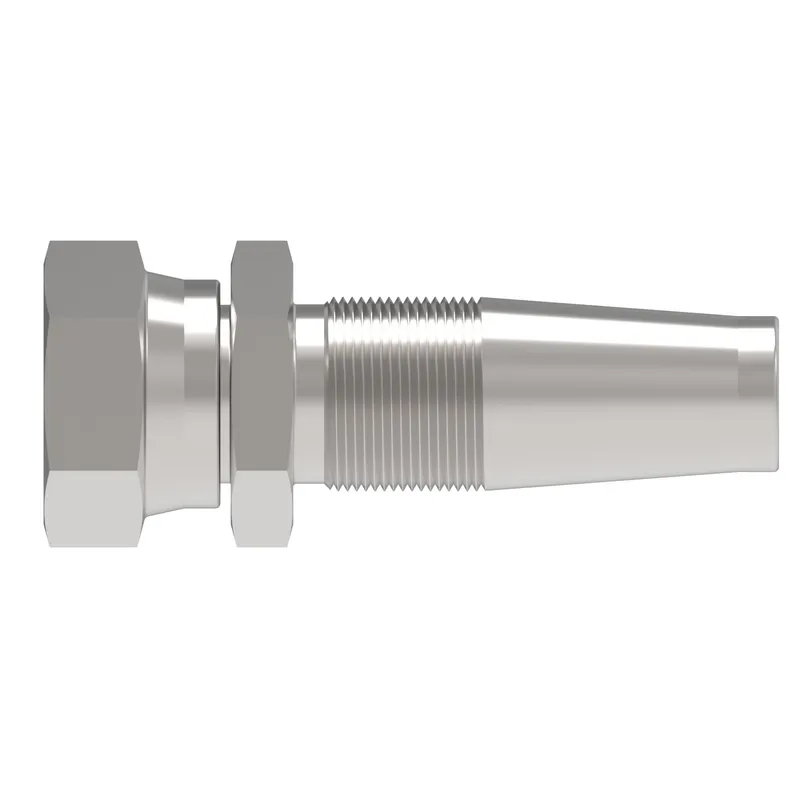

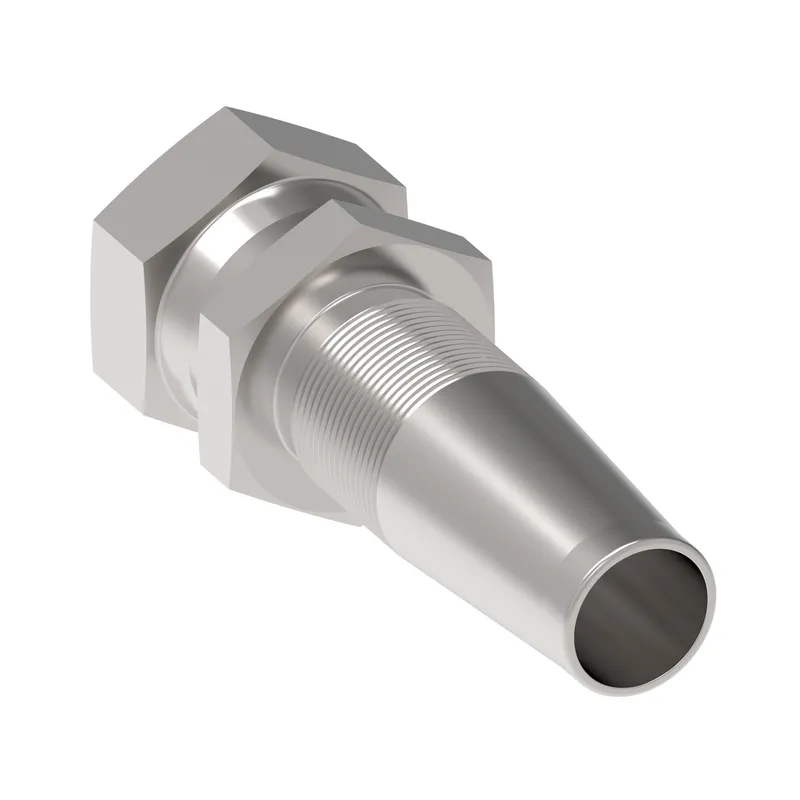

Danfoss 4103-4-4-4S

HOSE INSERT ASSY,1R/04,JIC-F/04,CS,STR

MPN
4103-4-4-4S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4103-4-4-4S?

Danfoss HOSE INSERT ASSY,1R/04,JIC-F/04,CS,STR, manufacturer part number 4103-4-4-4S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.580
A dimension MM65.530
Angle shapeStraight
Compatible hose ID IN0.251
Construction StyleReusable
End size 1-4
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN0.563
Hex size 1 MM14.288
Hex size 2 IN0.563
Hex size 2 MM14.288
Hose cut off factor IN1.910
Hose cut off factor MM48.530
Inside diameter IN0.169
Inside diameter MM4.300
Product height in0.560
Product height mm14.224
Product length in2.580
Product length mm65.532
Product materialCarbon steel
Product width in0.560
Product width mm14.224
Thread sealantNo
Thread size 17/16-20 UNF
Working pressure max BAR450.00
Working pressure max PSI6550.00
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

4103-4-4-4S: frequently asked questions

When can 4103-4-4-4S be shipped?

4103-4-4-4S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4103-4-4-4S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4103-4-4-4S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4103-4-4-4S, subject to availability and destination.
