Danfoss 4103-4-12S

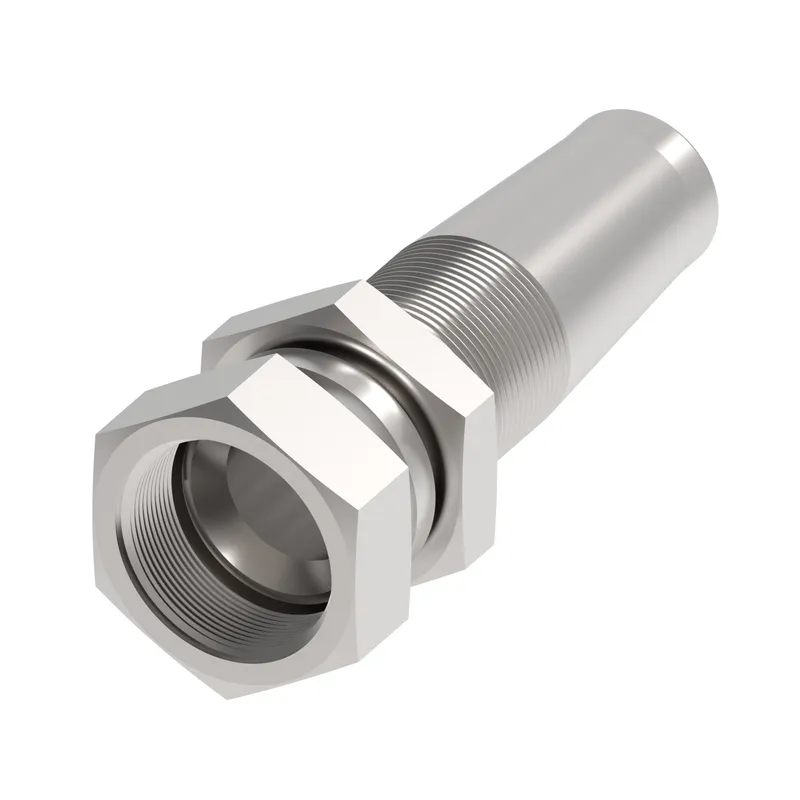

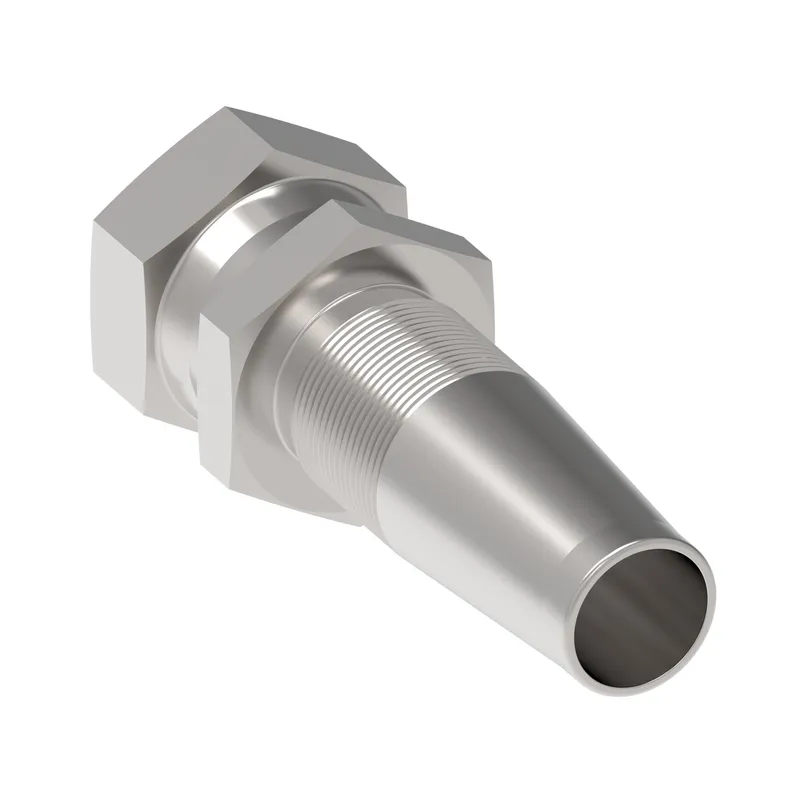

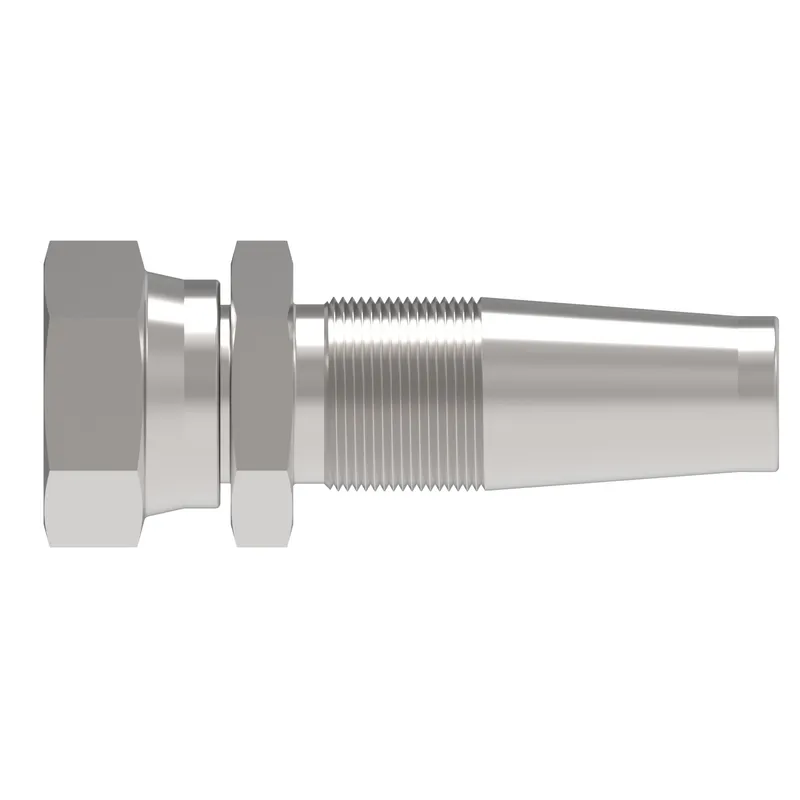

HOSE INSERT ASSY,1R/12,JIC-F/12,CS,STR

MPN
4103-4-12S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4103-4-12S?

Danfoss HOSE INSERT ASSY,1R/12,JIC-F/12,CS,STR, manufacturer part number 4103-4-12S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.880
A dimension MM98.550
Angle shapeStraight
Compatible hose ID IN0.750
Construction StyleReusable
End size 1-12
End Type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN1.250
Hex size 1 MM31.750
Hex size 2 IN1.250
Hex size 2 MM31.750
Hose cut off factor IN2.360
Hose cut off factor MM59.950
Inside diameter IN0.606
Inside diameter MM15.390
Product height in1.250
Product height mm31.750
Product length in3.880
Product length mm98.552
Product materialCarbon steel
Product width in1.250
Product width mm31.75
Thread sealantNo
Thread size 11 1/16-12 UN
Working pressure max BAR330
Working pressure max PSI4800
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

4103-4-12S: frequently asked questions

When can 4103-4-12S be shipped?

4103-4-12S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4103-4-12S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4103-4-12S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4103-4-12S, subject to availability and destination.
