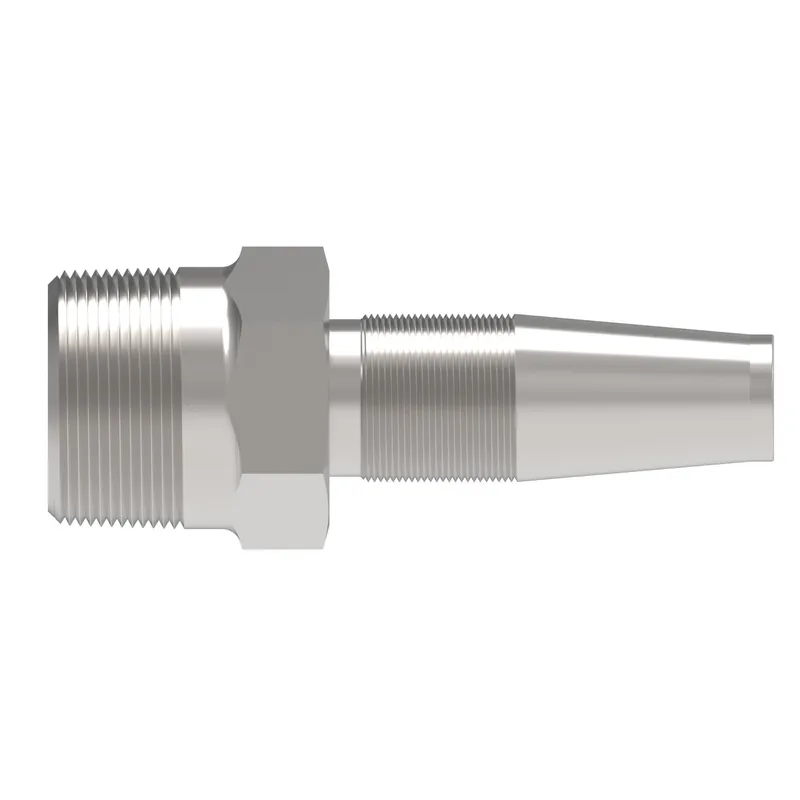

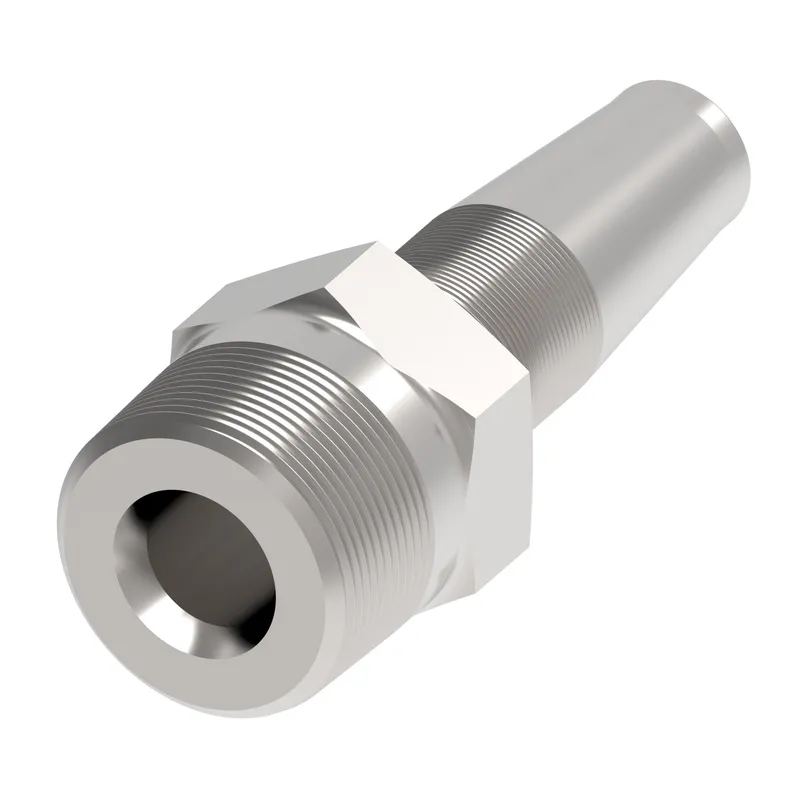

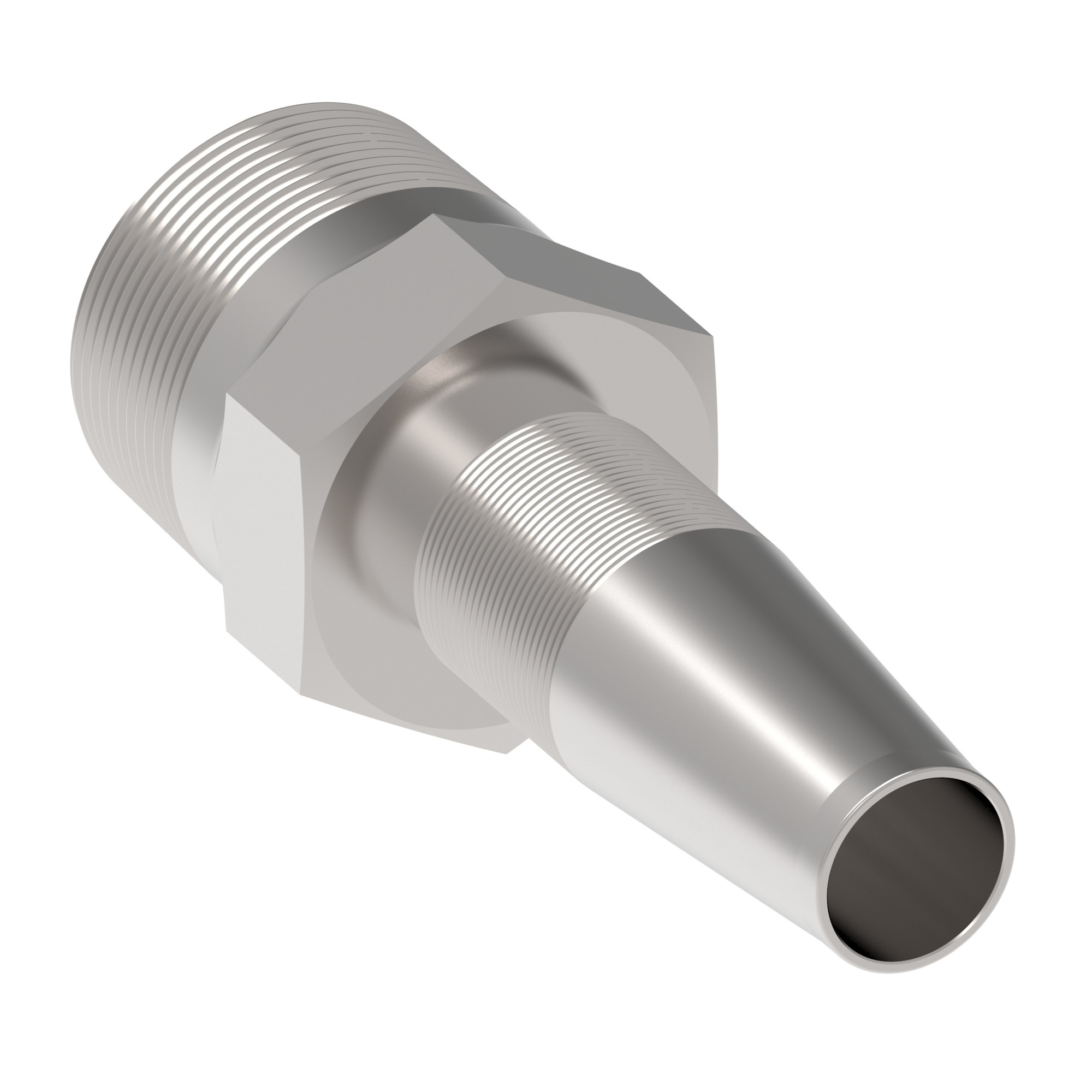

What is the Danfoss 4202-4-4S?

Danfoss HOSE INSERT, 1R/04, NPTF-M/04, CS, STR, manufacturer part number 4202-4-4S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.440
A dimension MM62.000
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.251
Compatible hose ID MM6.350
Compatible hoses1509
Construction StyleReusable
End size 1-4
End size 2-4
End Type 1Male pipe (NPTF)
Finish platingDura-Kote
Hex size 1 IN0.560
Hex size 1 MM14.224
Hex size 2 IN0.560
Hex size 2 MM14.288
Hose cut off factor IN1.770
Hose cut off factor MM45.000
Hose size-4
Inside diameter IN0.170
Inside diameter MM4.300
Product height in0.560
Product height mm14.224
Product length in2.440
Product length mm61.976
Product materialCarbon steel
Product width in0.560
Product width mm14.224
Thread sealantYes
Thread size 11/4-18 NPTF
Working pressure max BAR655
Working pressure max PSI9100
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
