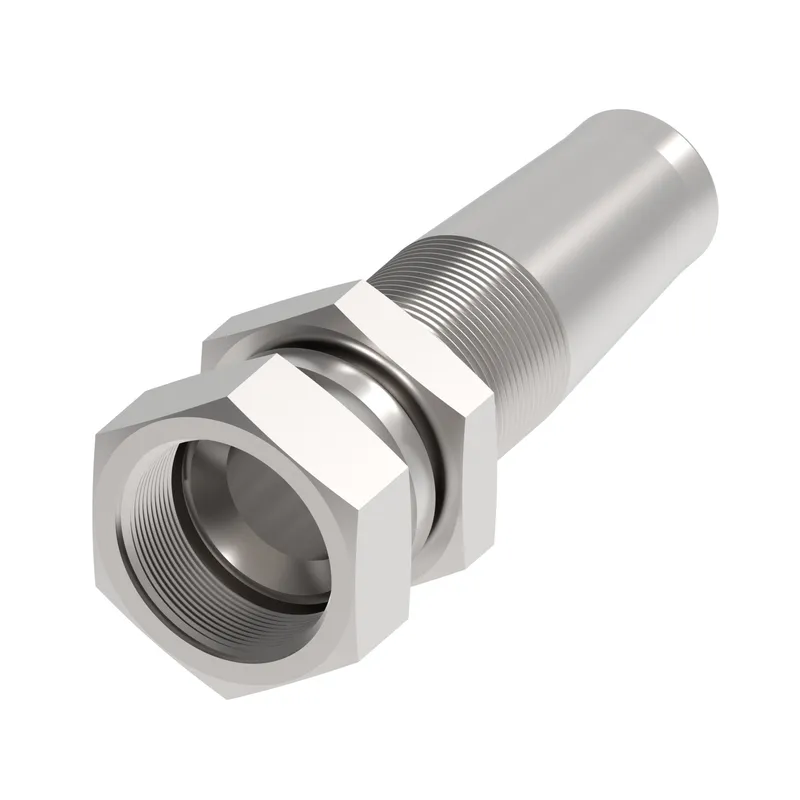

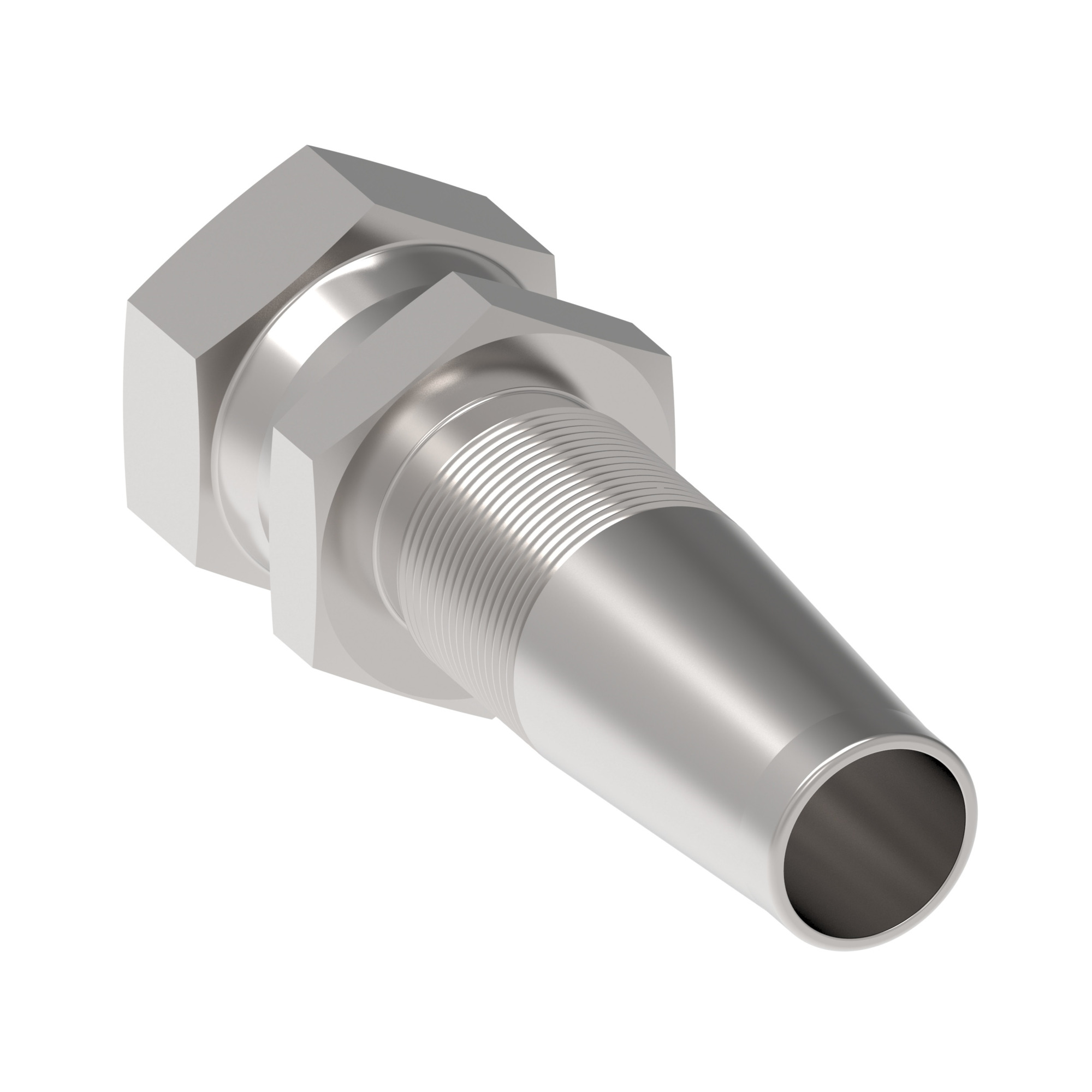

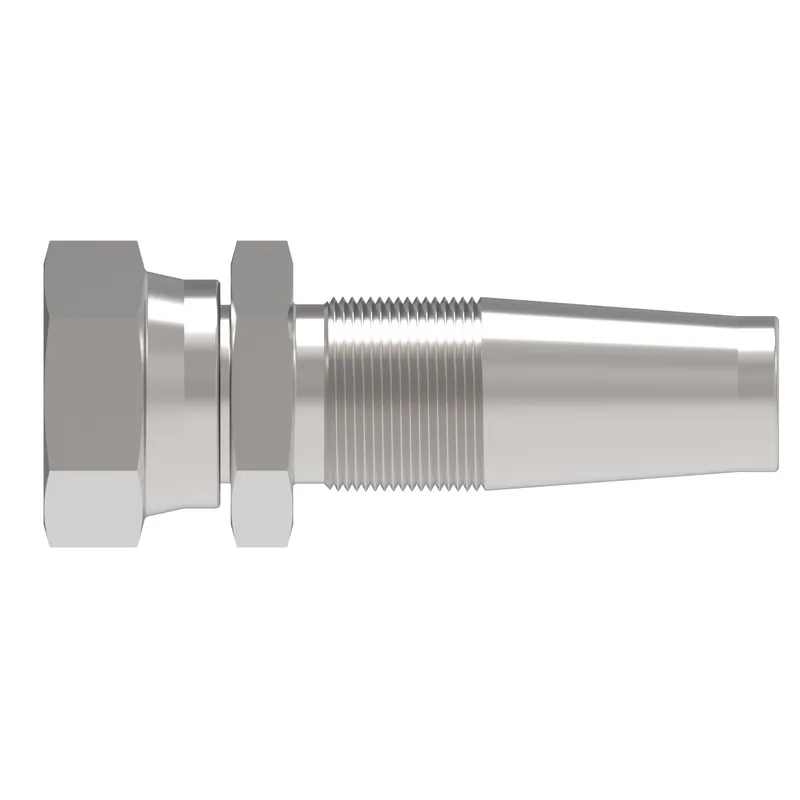

HOSE INSERT ASSY,1R/04,JIC-F/06,CS,STR

Name: HOSE INSERT ASSY,1R/04,JIC-F/06,CS,STR
Brand: Danfoss (Drives)
SKU: 4103-4-6-4S

MPN: 4103-4-6-4S · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 4103-4-6-4S be shipped?

4103-4-6-4S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4103-4-6-4S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4103-4-6-4S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4103-4-6-4S, subject to availability and destination.

Danfoss HOSE INSERT ASSY,1R/04,JIC-F/06,CS,STR, manufacturer part number 4103-4-6-4S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.730
A dimension MM	69.340
Angle shape	Straight
Compatible hose ID IN	0.251
Compatible hose ID MM	6.350
Compatible hoses	1509
Construction Style	Reusable
End size 1	-6
End size 2	-4
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.688
Hex size 1 MM	17.462
Hex size 2 IN	0.688
Hex size 2 MM	17.462
Hose cut off factor IN	2.060
Hose cut off factor MM	52.340
Hose size	-4
Inside diameter IN	0.169
Inside diameter MM	4.300
Product height in	0.790
Product height mm	20.066
Product length in	2.730
Product length mm	69.342
Product material	Carbon steel
Product width in	0.690
Product width mm	17.526
Thread sealant	No
Thread size 1	9/16-18 UNF
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
