Danfoss 4103-4-10-8S

HOSE INSERT ASSY,1R/08,JIC-F/10,CS,STR

MPN
4103-4-10-8S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4103-4-10-8S?

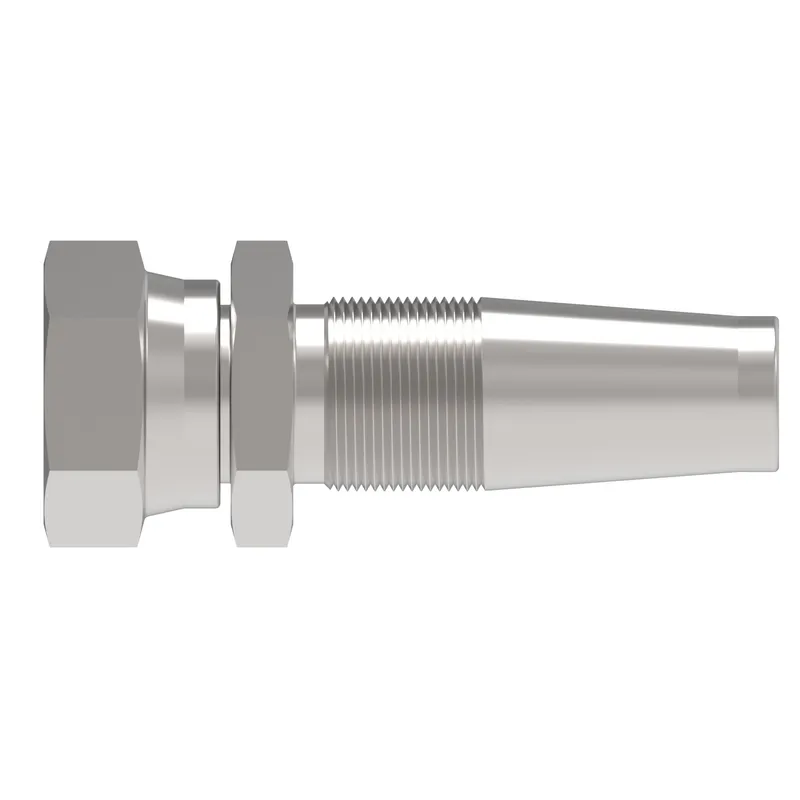

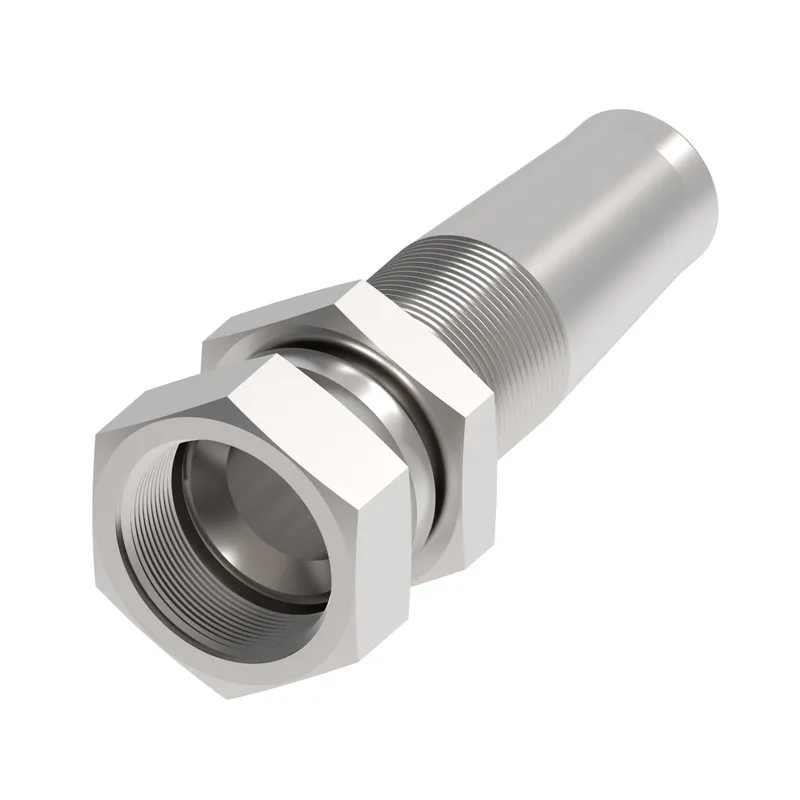

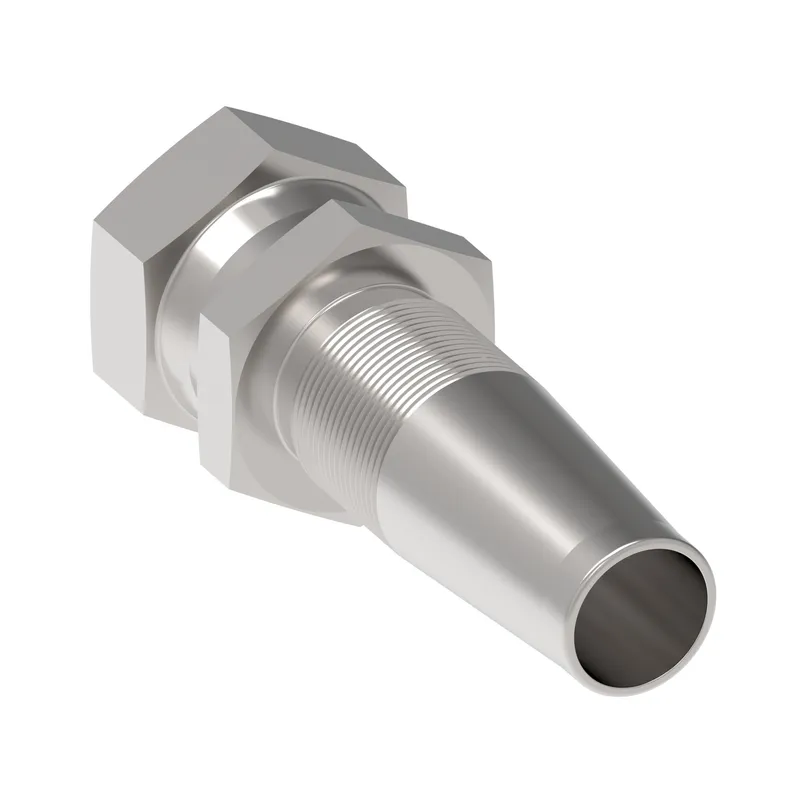

Danfoss HOSE INSERT ASSY,1R/08,JIC-F/10,CS,STR, manufacturer part number 4103-4-10-8S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.360
A dimension MM85.340
Angle shapeStraight
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses1509
Construction StyleReusable
End size 1-10
End size 2-6
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.400
Hex size 2 IN1.000
Hex size 2 MM25.400
Hose cut off factor IN2.270
Hose cut off factor MM57.840
Hose size-8
Inside diameter IN0.388
Inside diameter MM9.855
Product height in1.150
Product height mm29.210
Product length in3.360
Product length mm85.344
Product materialCarbon steel
Product width in1.000
Product width mm25.4
Thread sealantNo
Thread size 17/8-14 UNF
Working pressure max BAR350.00
Working pressure max PSI5100.00
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

4103-4-10-8S: frequently asked questions

When can 4103-4-10-8S be shipped?

4103-4-10-8S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4103-4-10-8S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4103-4-10-8S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4103-4-10-8S, subject to availability and destination.
