Danfoss 4103-4-16S

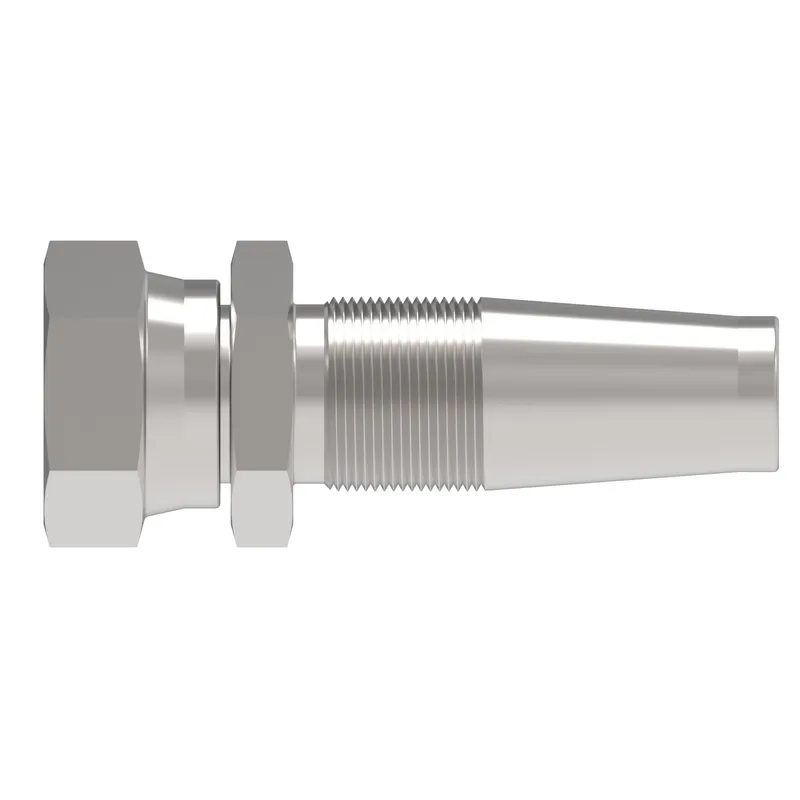

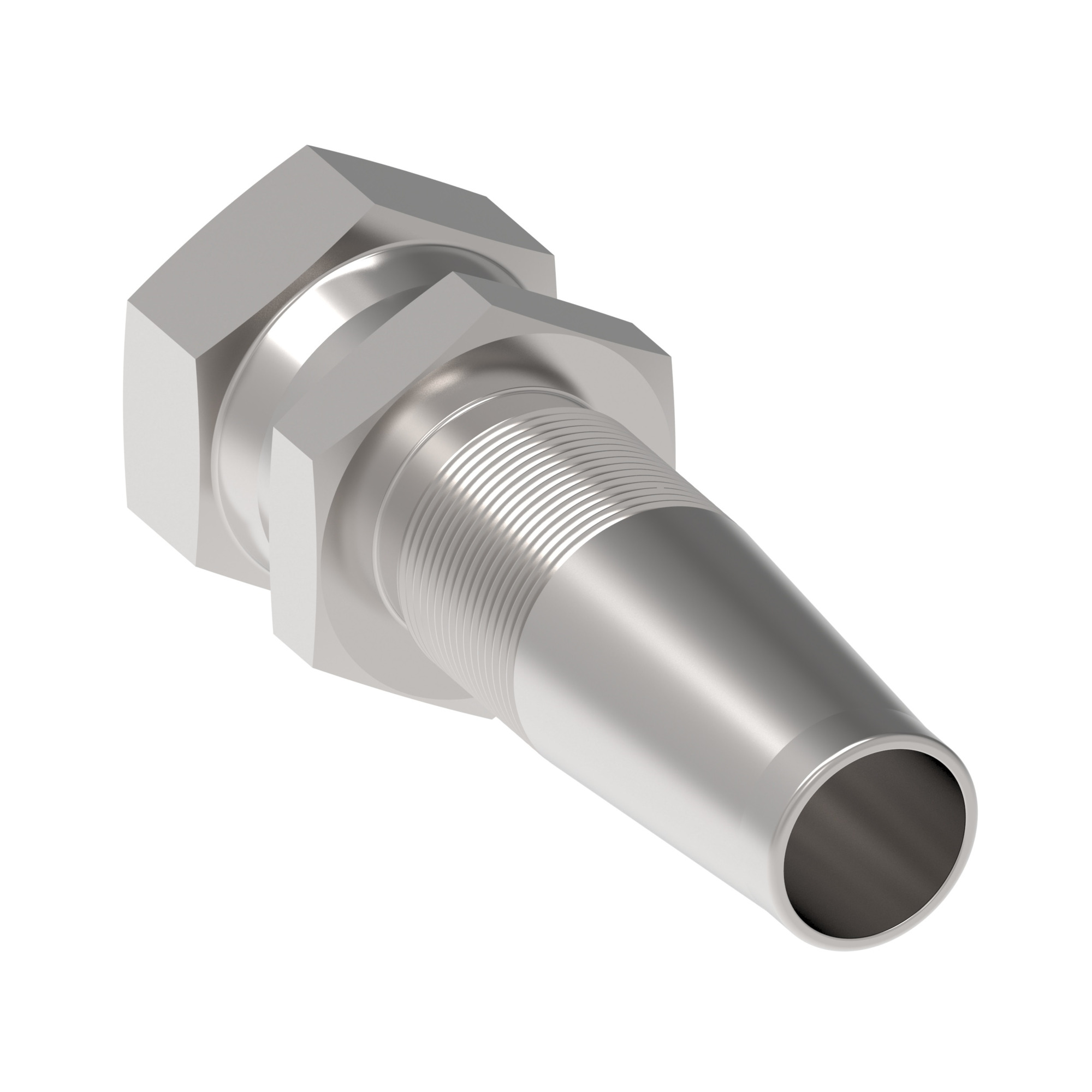

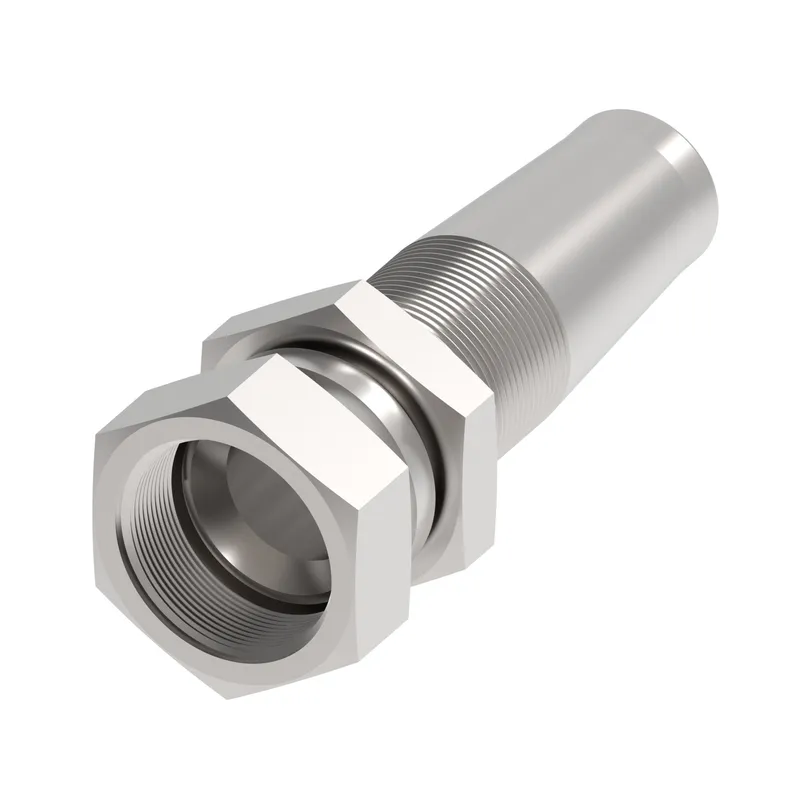

HOSE INSERT ASSY,1R/16,JIC-F/16,CS,STR

MPN
4103-4-16S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4103-4-16S?

Danfoss HOSE INSERT ASSY,1R/16,JIC-F/16,CS,STR, manufacturer part number 4103-4-16S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146137937
A dimension IN4.470
A dimension MM113.530
Angle shapeStraight
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hoses1509
Construction StyleReusable
End size 1-16
End size 2-14
End Type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN1.500
Hex size 1 MM38.100
Hex size 2 IN1.500
Hex size 2 MM38.100
Hose cut off factor IN3.300
Hose cut off factor MM84.030
Hose size-16
Inside diameter IN0.810
Inside diameter MM20.570
Product height in1.640
Product height mm41.656
Product length in4.470
Product length mm113.538
Product materialCarbon steel
Product width in1.500
Product width mm38.1
Thread sealantNo
Thread size 11 5/16-12 UN
Working pressure max BAR280.00
Working pressure max PSI4050.00
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

4103-4-16S: frequently asked questions

When can 4103-4-16S be shipped?

4103-4-16S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4103-4-16S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4103-4-16S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4103-4-16S, subject to availability and destination.
