Danfoss 4203-6-4S

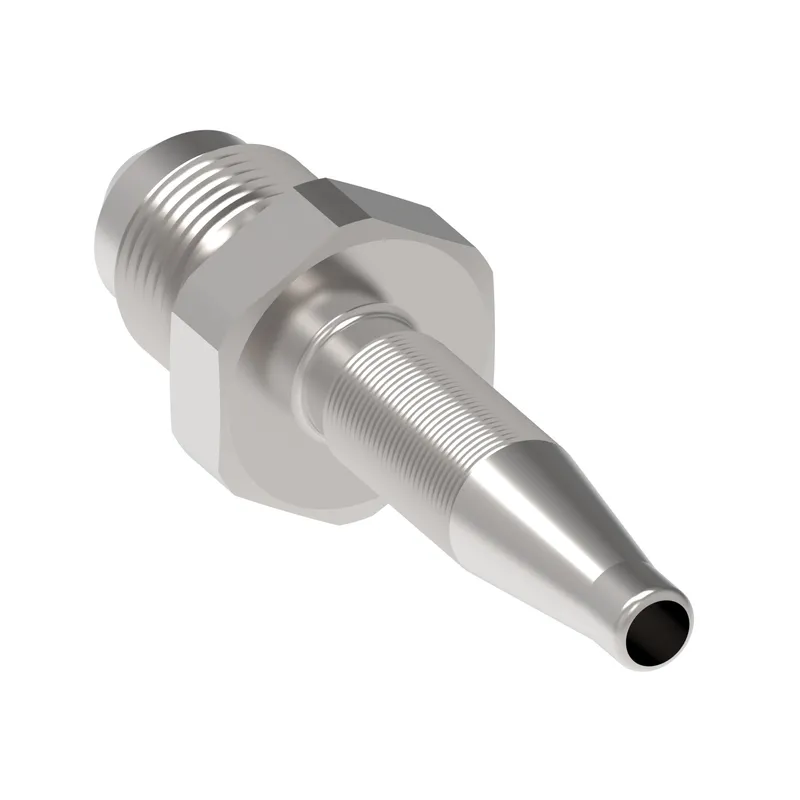

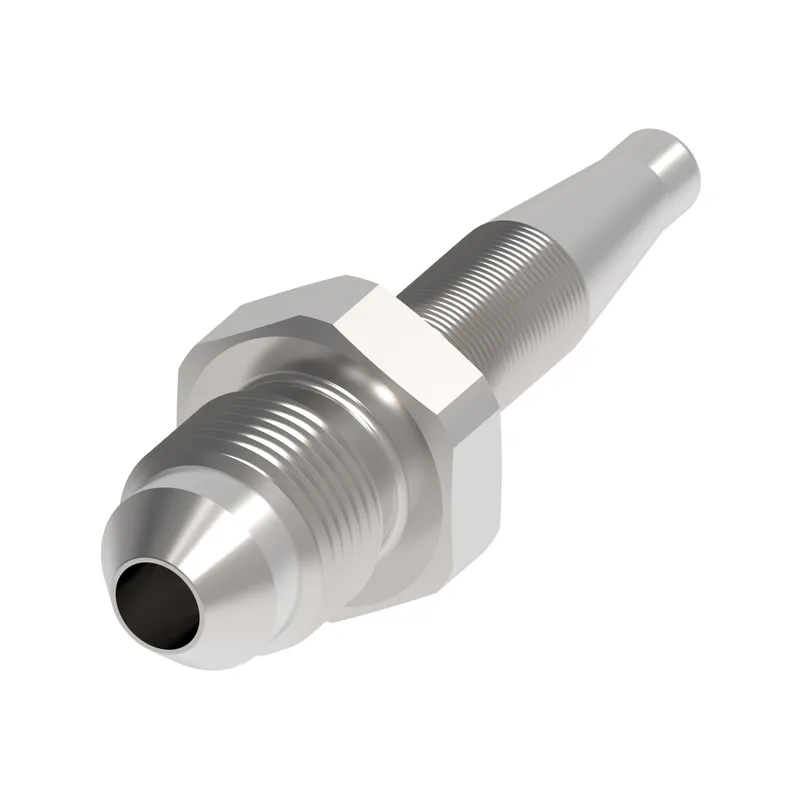

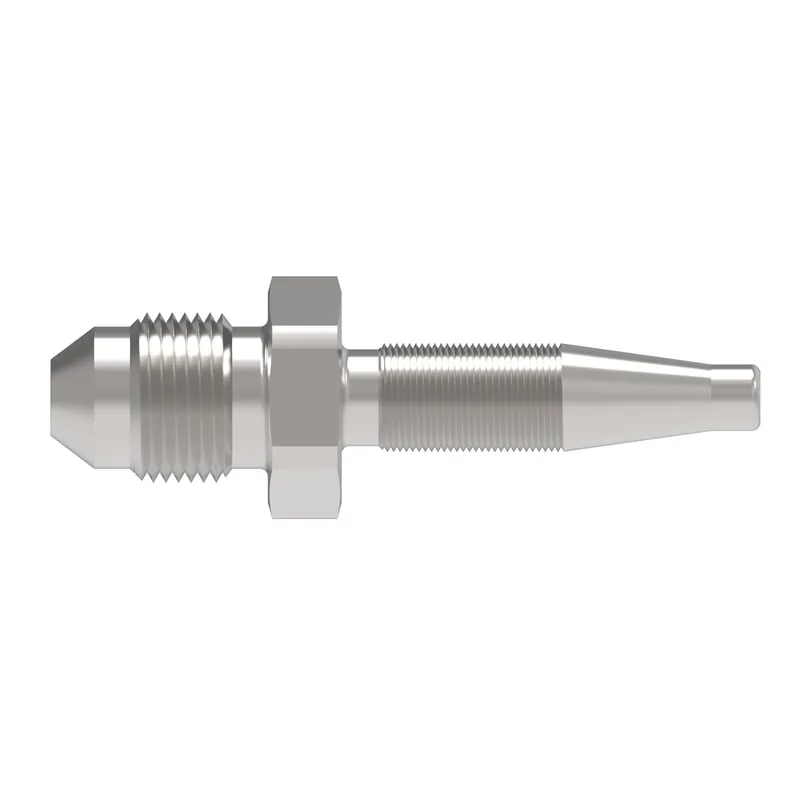

HOSE INSERT, 1R/04, JIC-F/06, CS, STR

MPN
4203-6-4S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4203-6-4S?

Danfoss HOSE INSERT, 1R/04, JIC-F/06, CS, STR, manufacturer part number 4203-6-4S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.500
A dimension MM63.500
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.251
Compatible hose ID MM6.350
Construction StyleReusable
End size 1-6
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 2 IN0.688
Hex size 2 MM17.462
Hose cut off factor IN1.830
Hose cut off factor MM46.500
Hose size-4
Inside diameter IN0.172
Inside diameter MM4.368
Product height in0.656
Product height mm16.662
Product length in2.496
Product length mm63.398
Product materialCarbon steel
Product width in0.688
Product width mm17.462
Thread sealantNo
Thread size 19/16-18 UNF
Working pressure max BAR400.00
Working pressure max PSI5800.00
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
