Danfoss 4103-4-8-8S

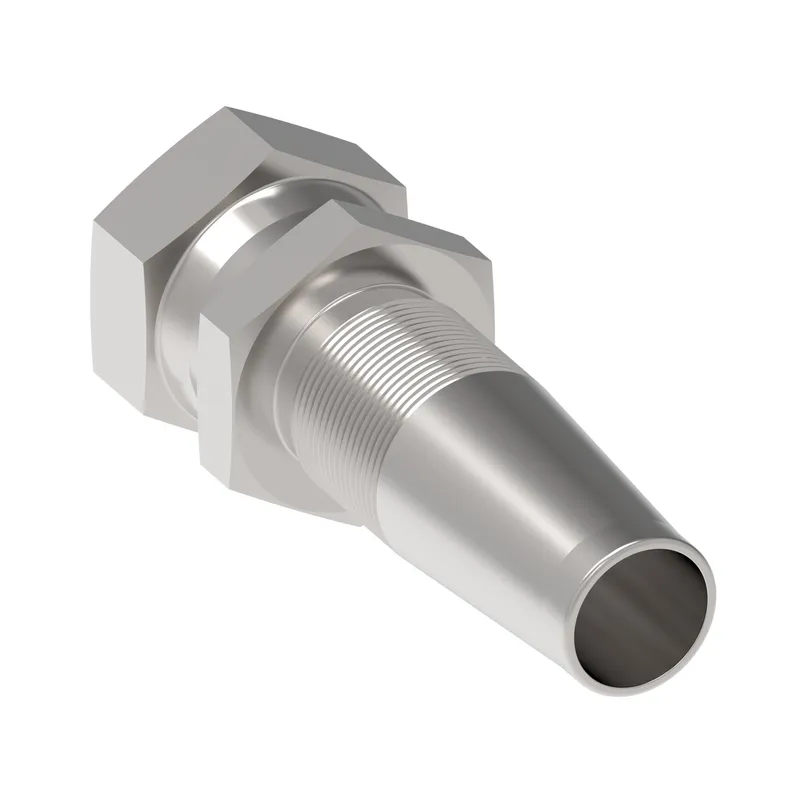

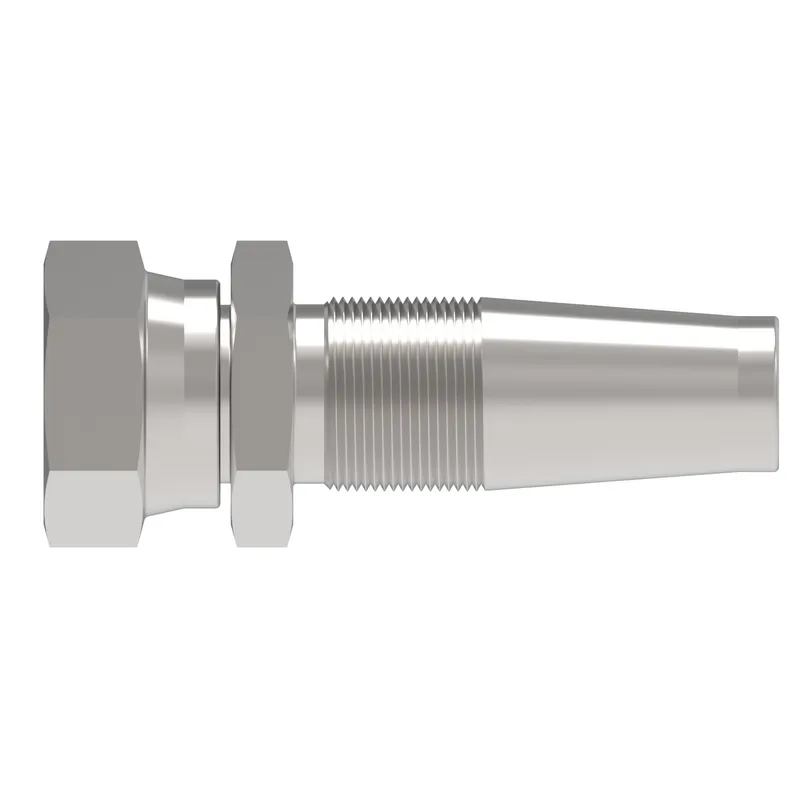

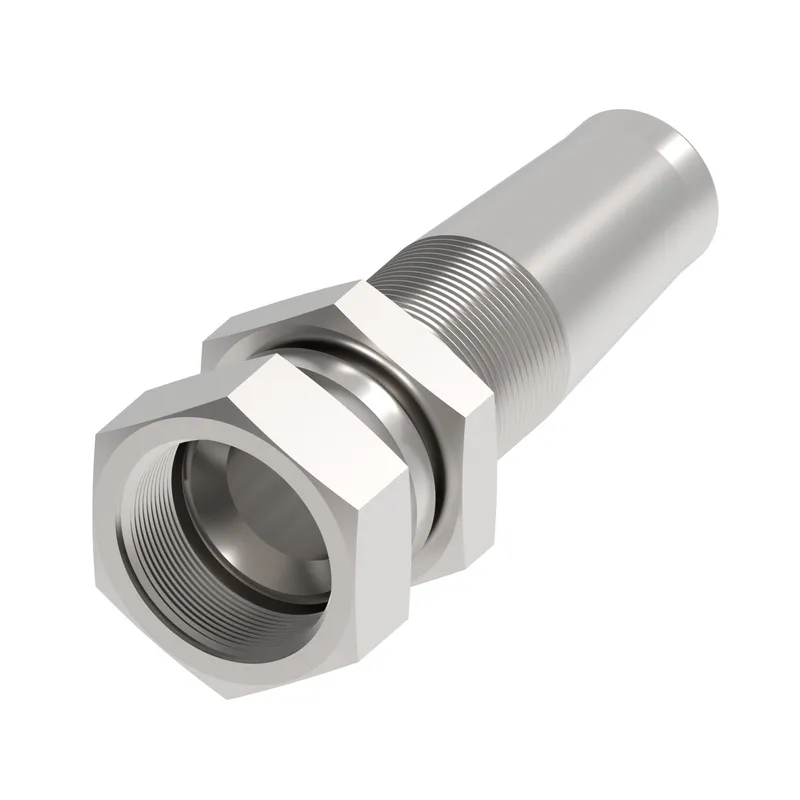

HOSE INSERT ASSY,1R/08,JIC-F/08,CS,STR

MPN
4103-4-8-8S
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4103-4-8-8S?

Danfoss HOSE INSERT ASSY,1R/08,JIC-F/08,CS,STR, manufacturer part number 4103-4-8-8S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.240
A dimension MM82.296
Angle shapeStraight
Compatible hose ID IN0.500
Construction StyleReusable
End size 1-8
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN0.875
Hex size 1 MM22.225
Hex size 2 IN0.875
Hex size 2 MM22.225
Hose cut off factor IN2.157
Hose cut off factor MM54.770
Inside diameter IN0.388
Inside diameter MM9.855
Product height in0.880
Product height mm22.352
Product length in3.240
Product length mm82.296
Product materialCarbon steel
Product width in0.880
Product width mm22.352
Thread sealantNo
Thread size 13/4-16 UNF
Working pressure max BAR360.00
Working pressure max PSI5300.00
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

4103-4-8-8S: frequently asked questions

When can 4103-4-8-8S be shipped?

4103-4-8-8S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4103-4-8-8S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4103-4-8-8S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4103-4-8-8S, subject to availability and destination.
