Braided hose and fittings Parts

Danfoss

1AA20MJ20

HOSE FTG, 1A/20, JIC-M/20, CS, STR

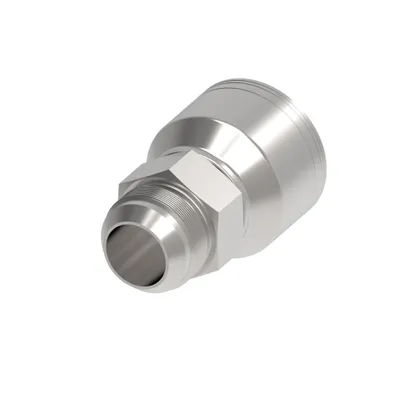

Danfoss

1AA20MJ16

HOSE FTG, 1A/16, JIC-M/20, CS, STR

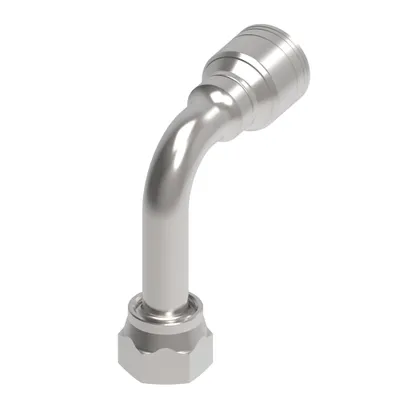

Danfoss

1AA20FRC20

HOSE FTG, 1A/20, ORS-F/20, CS, 90D

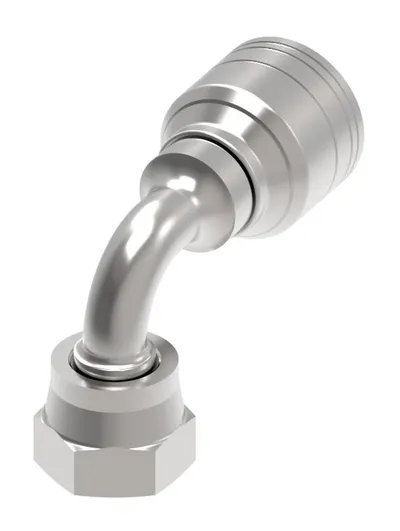

Danfoss

1AA20FRB20

HOSE FTG, 1A/20, ORS-F/20, CS, 90D

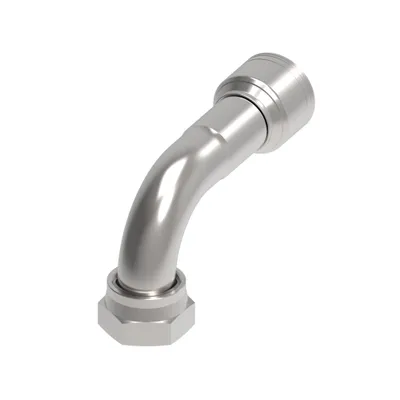

Danfoss

1AA20FRB16

HOSE FTG, 1A/16, ORS-F/16, CS, 90D

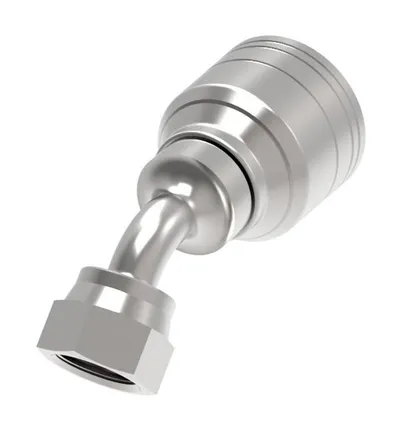

Danfoss

1AA20FRA20

HOSE FTG, 1A/20, ORS-F/20, CS, 45D

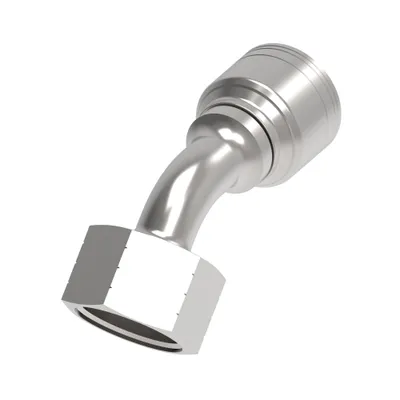

Danfoss

1AA20FRA16

HOSE FTG, 1A/16, ORS-F/20, CS, 45D

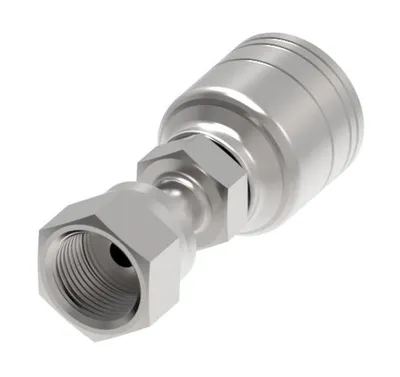

Danfoss

1AA20FR20

HOSE FTG, 1A/20, ORS-F/20, CS, STR

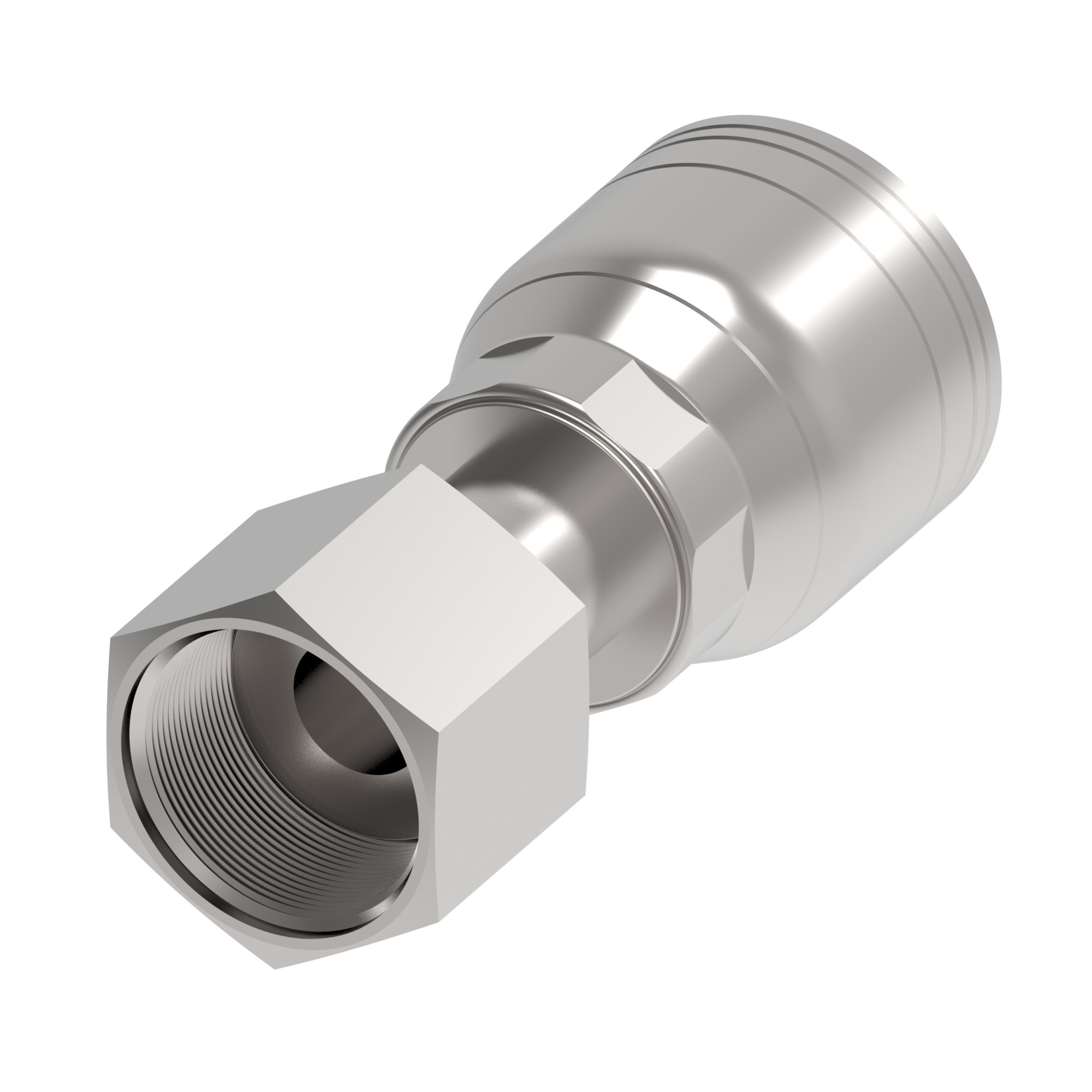

Danfoss

1AA20FR16

HOSE FTG, 1A/16, ORS-F/20, CS, STR

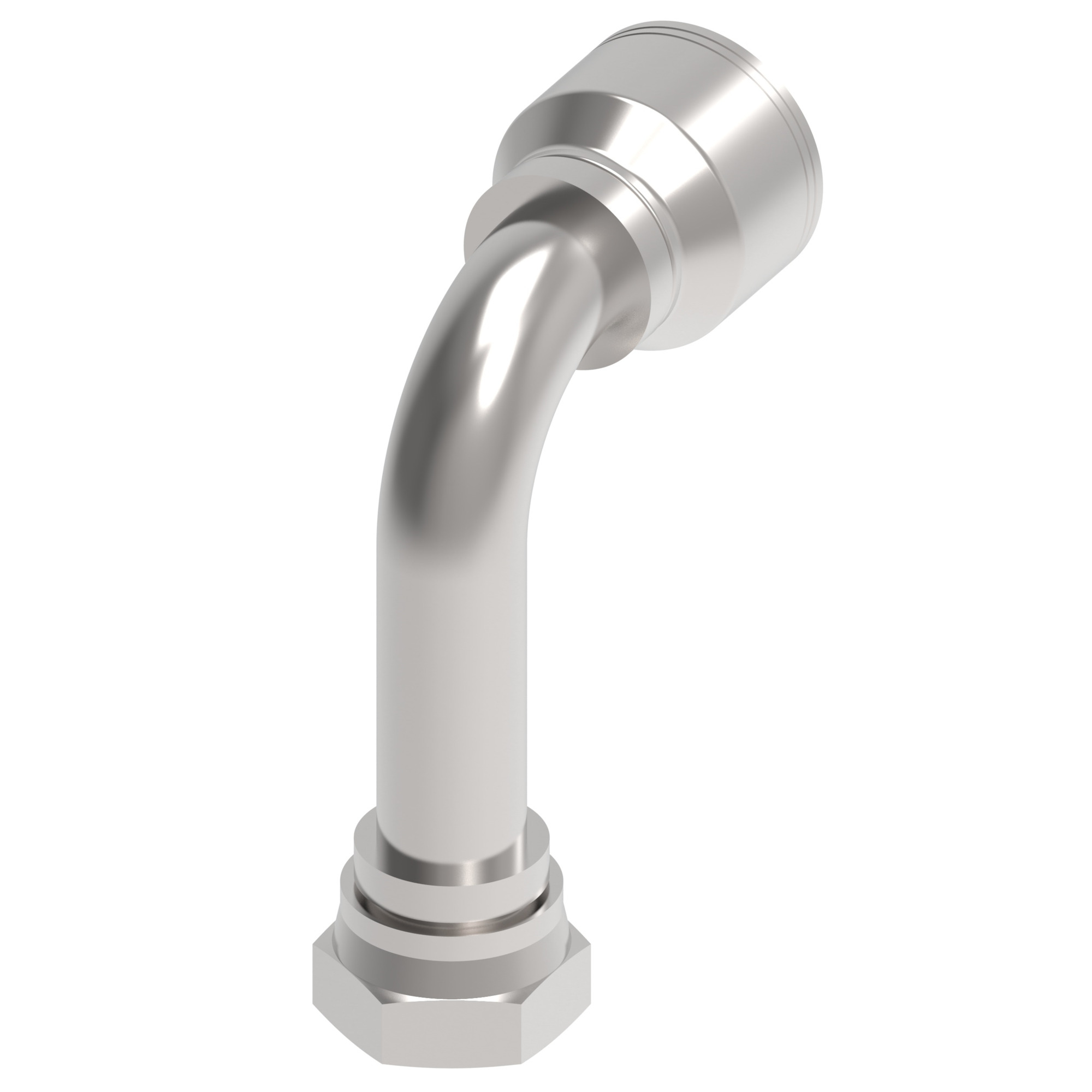

Danfoss

1AA20FJC20

HOSE FTG, 1A/20, JIC-F/20, CS, 90D

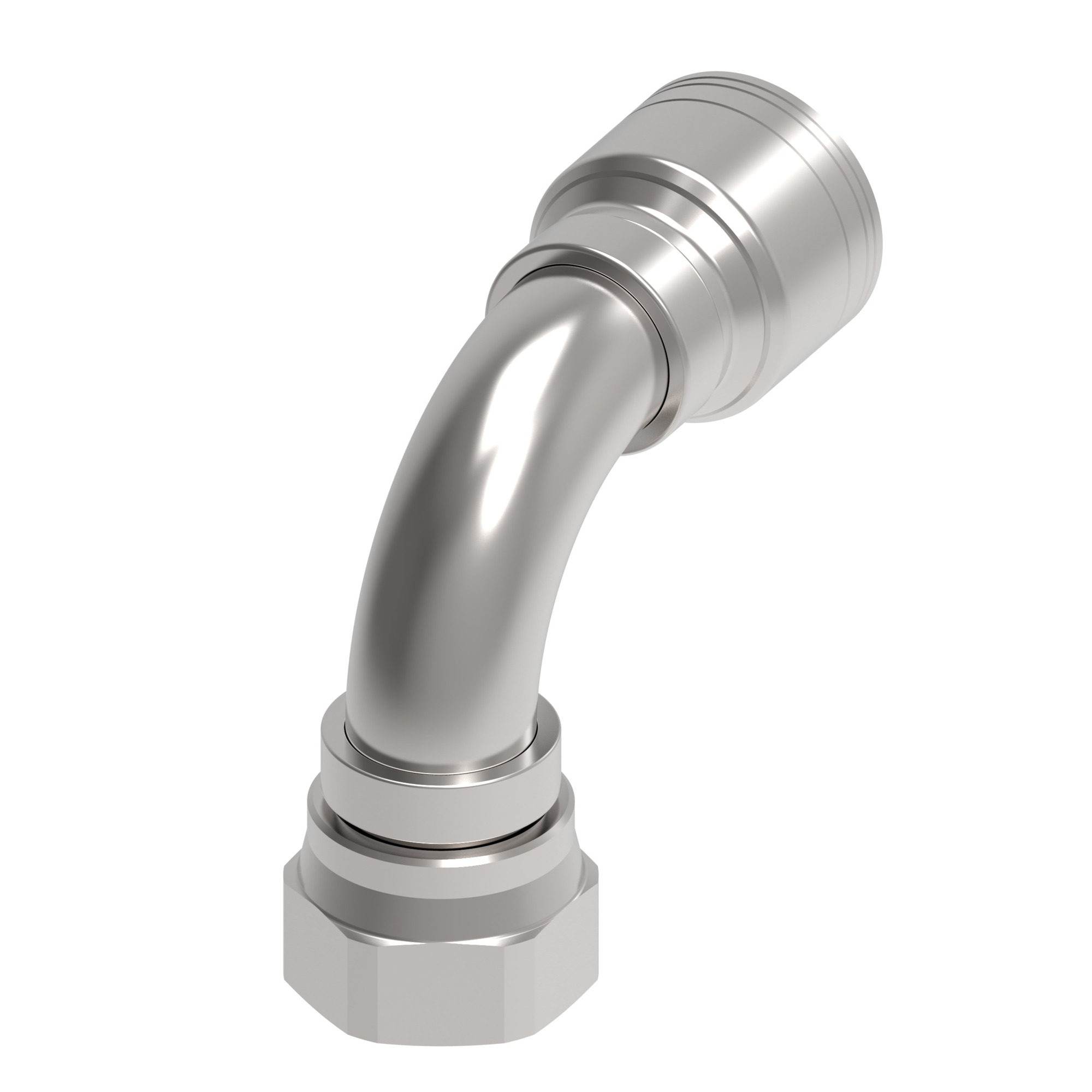

Danfoss

1AA20FJB20

HOSE FTG, 1A/20, JIC-F/20, CS, 90D

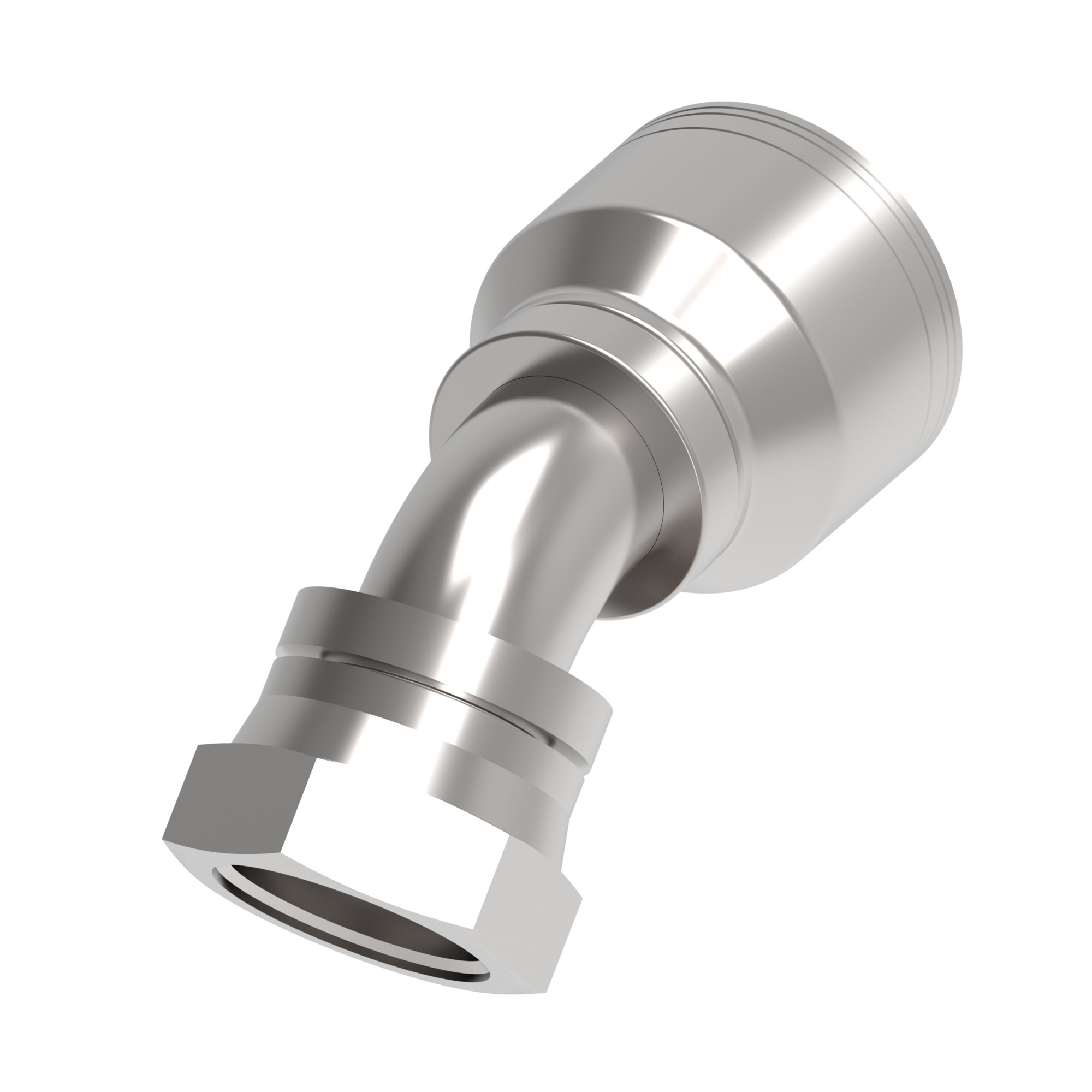

Danfoss

1AA20FJA20

HOSE FTG, 1A/20, JIC-F/20, CS, 45D

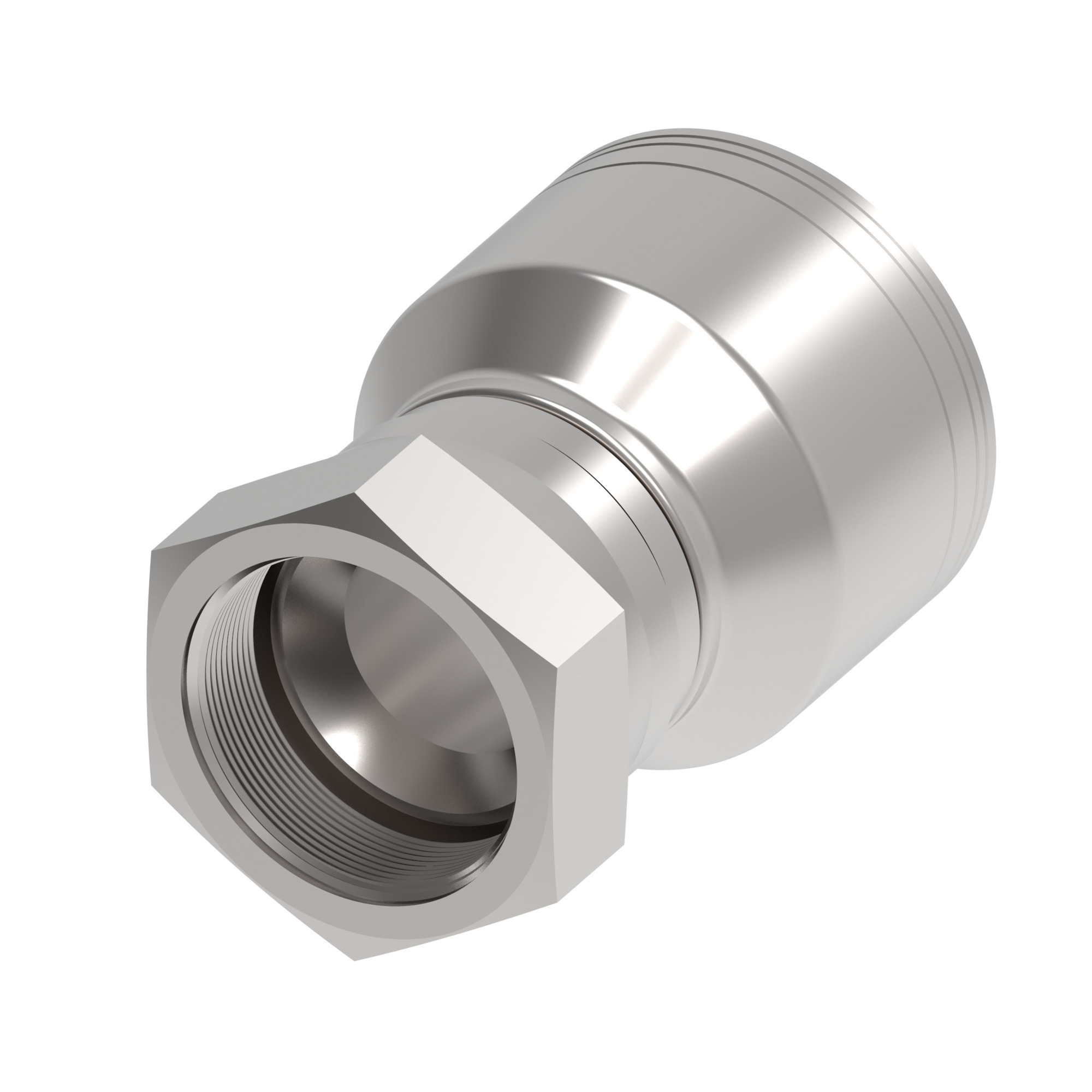

Danfoss

1AA20FJ20

HOSE FTG, 1A/20, JIC-F/20, CS, STR

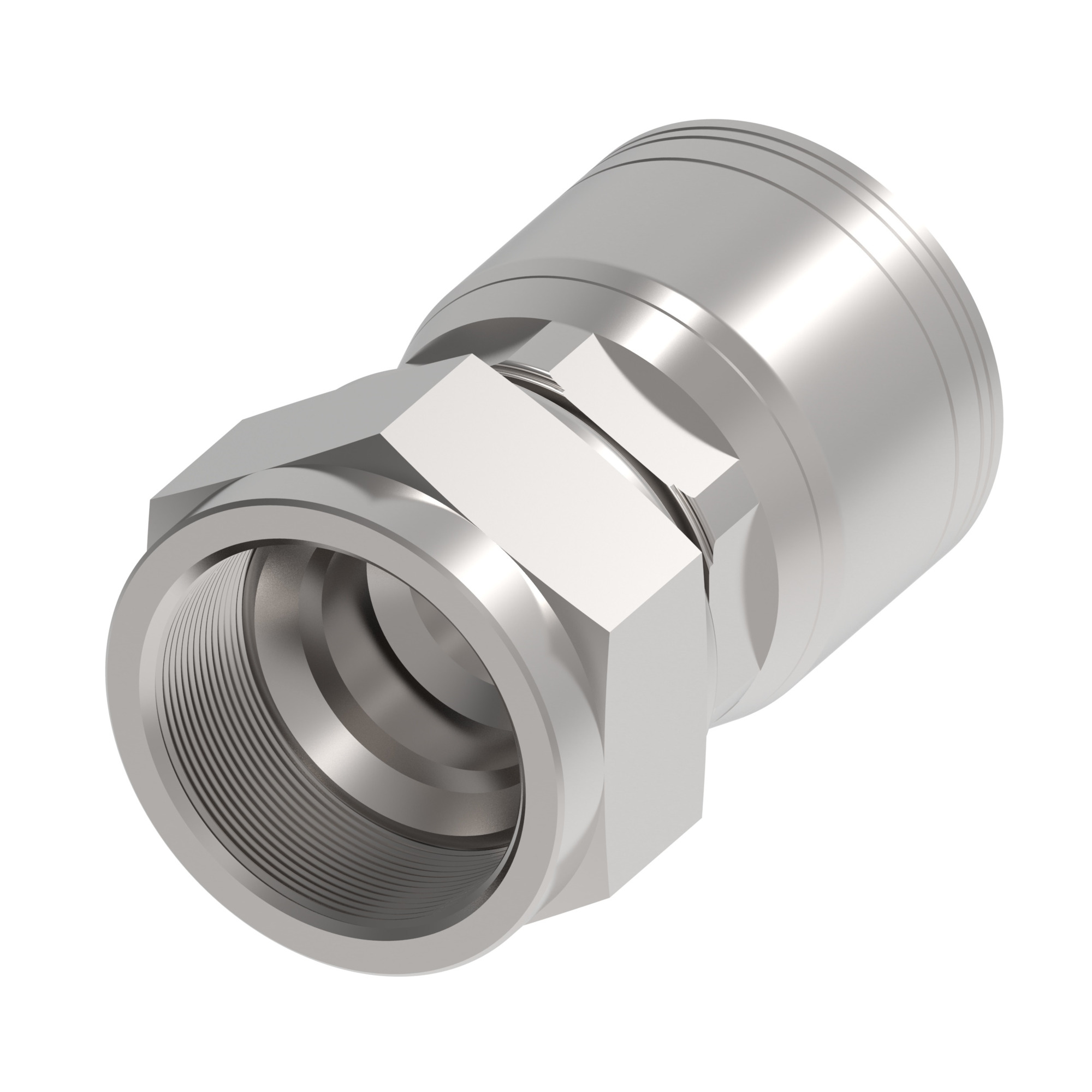

Danfoss

1AA20FJ16

HOSE FTG, 1A/16, JIC-F/20, CS, STR

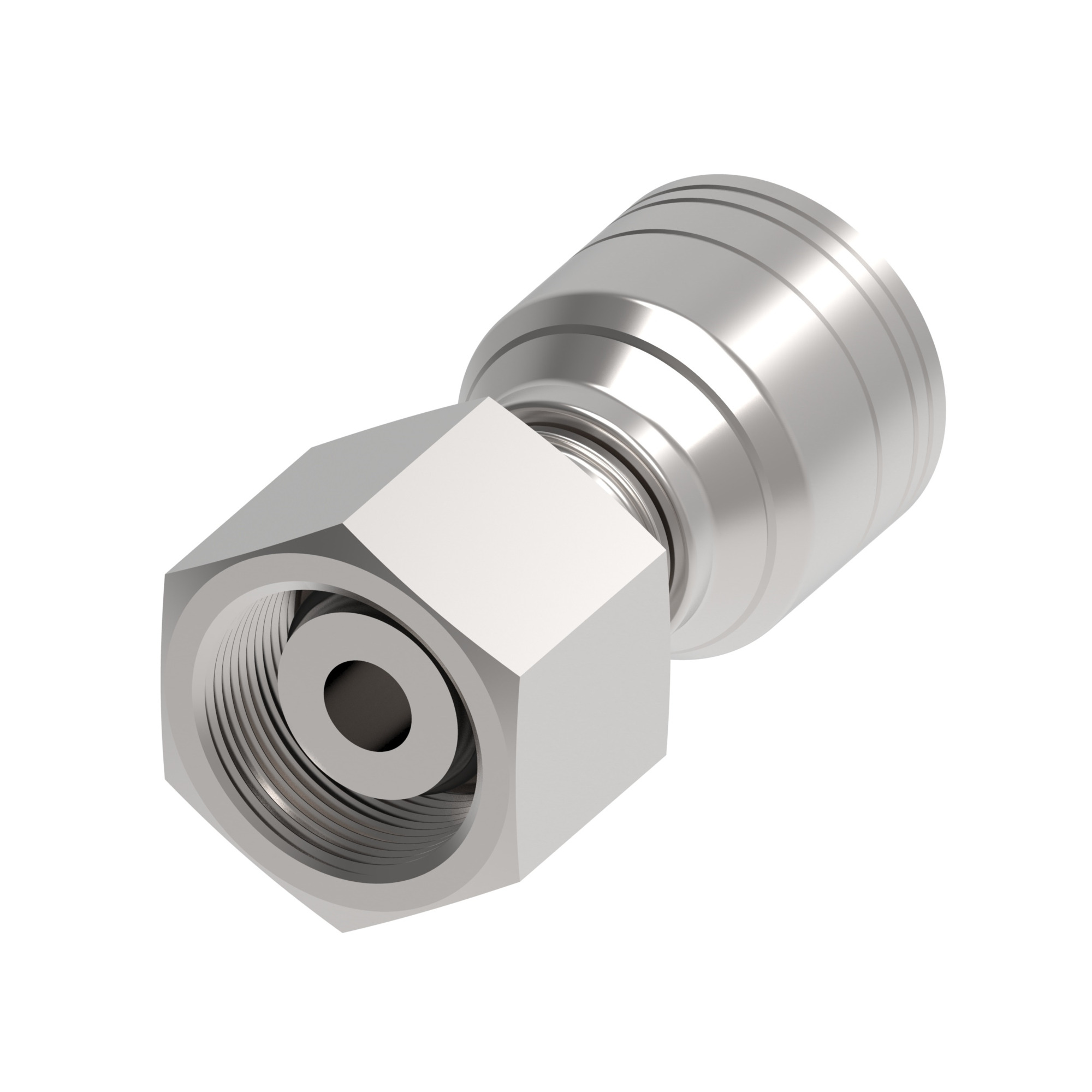

Danfoss

1AA20DS12C

HOSE FTG, 1A/12, DKOH-B/20, CS, STR

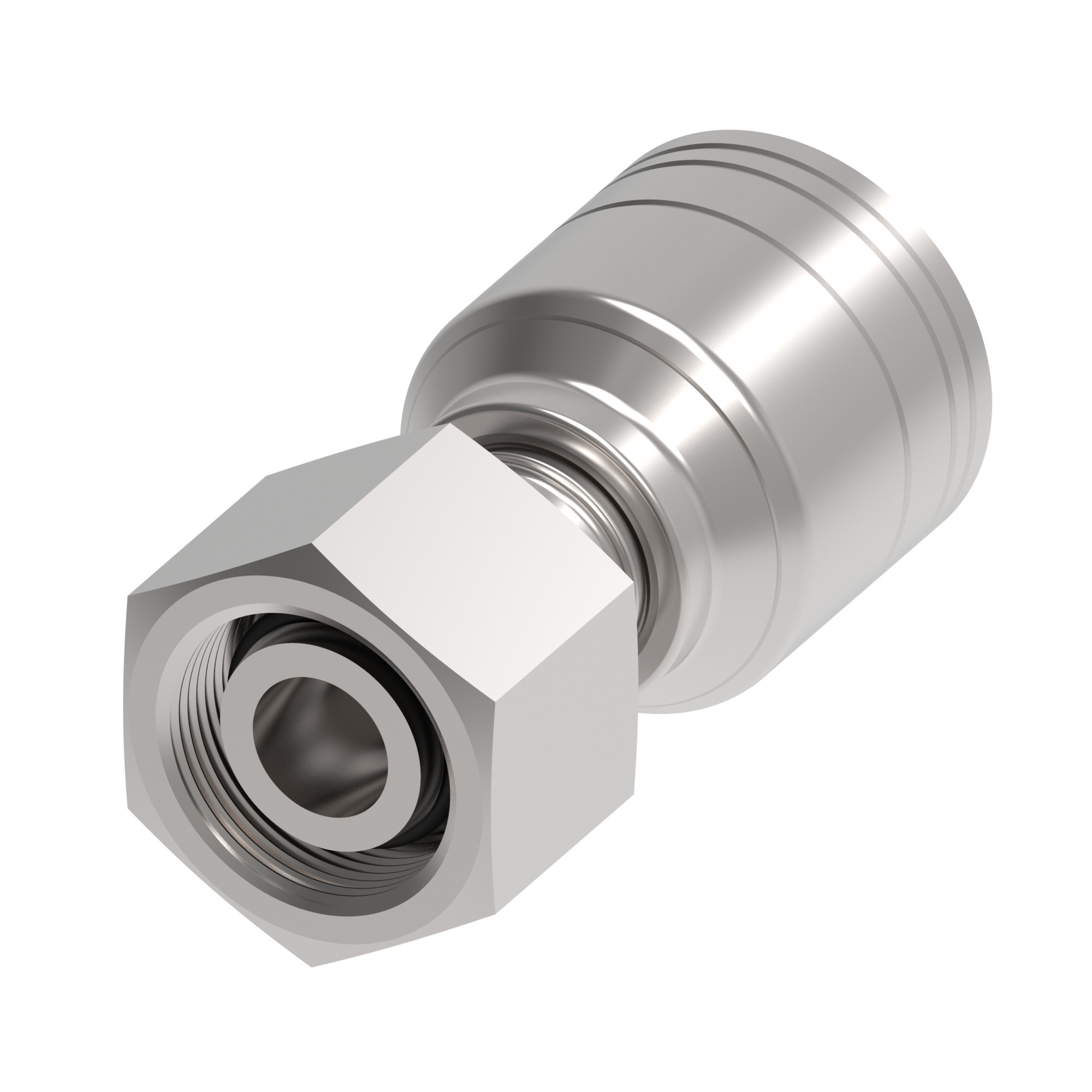

Danfoss

1AA20DL12C

HOSE FTG, 1A/12, DKOL/20, AP, STR

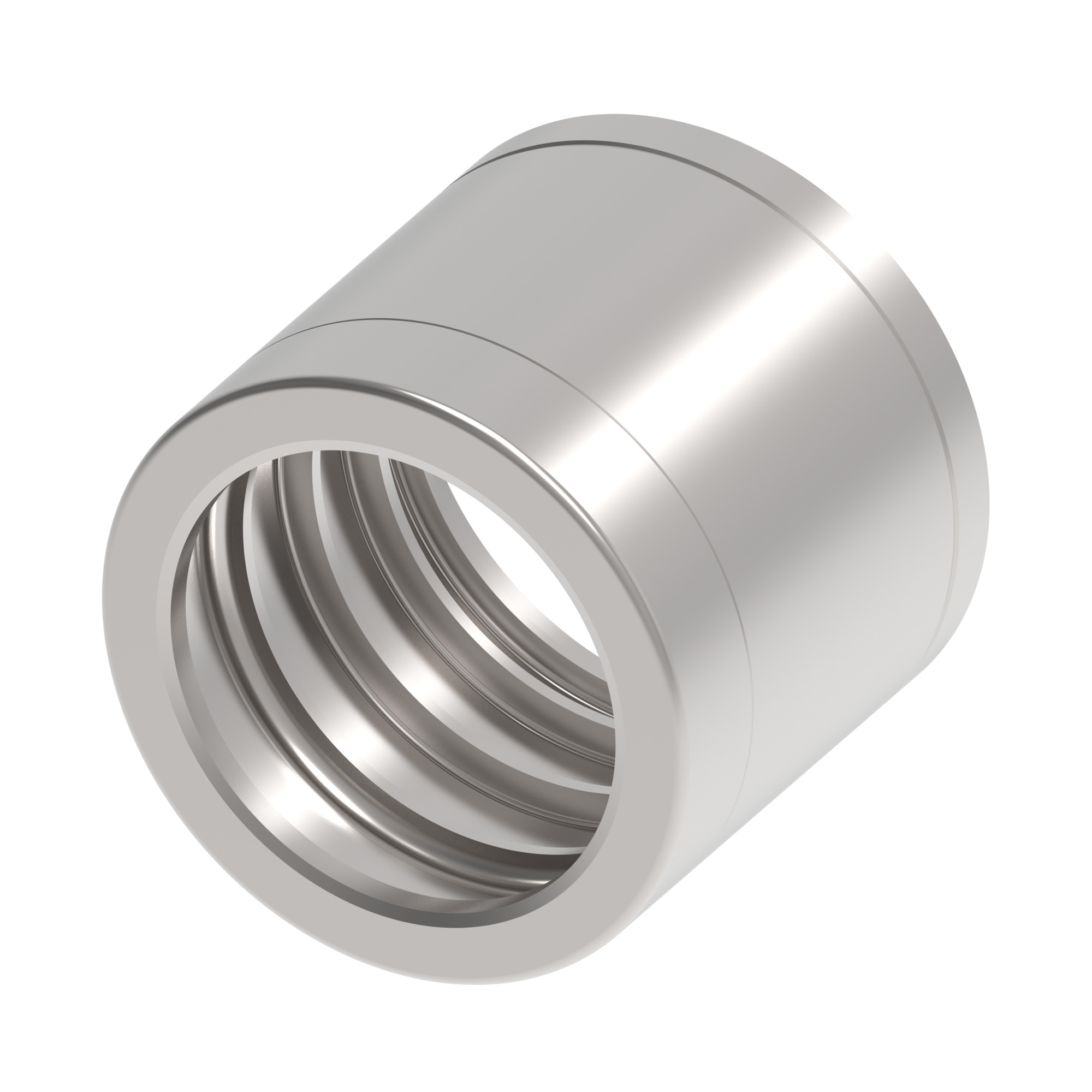

Danfoss

1AA20

SOCKET-PERM, 1A/20, CS

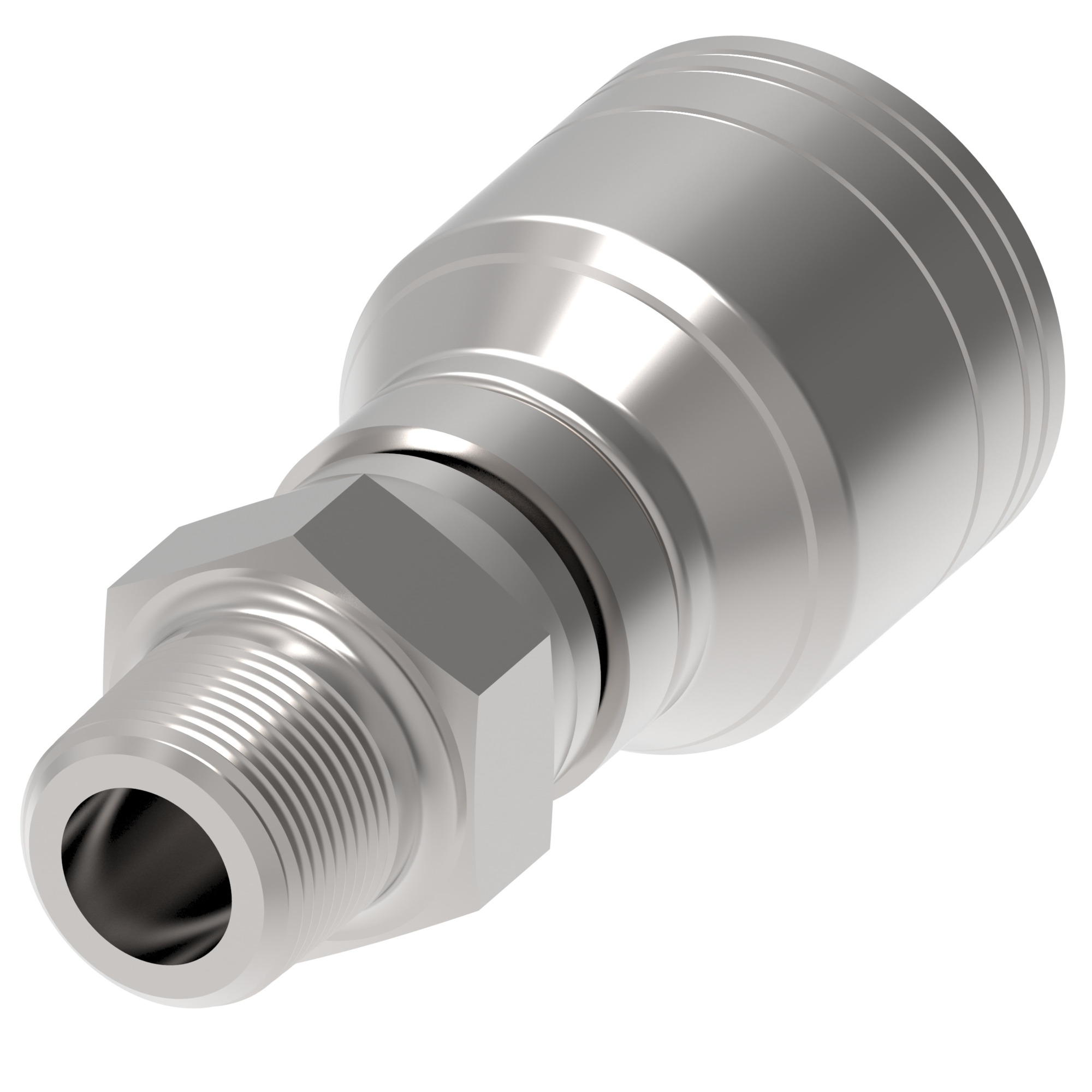

Danfoss

1AA16PS16

HOSE FTG, 1A/16, NPTF-MS/16, CS, STR

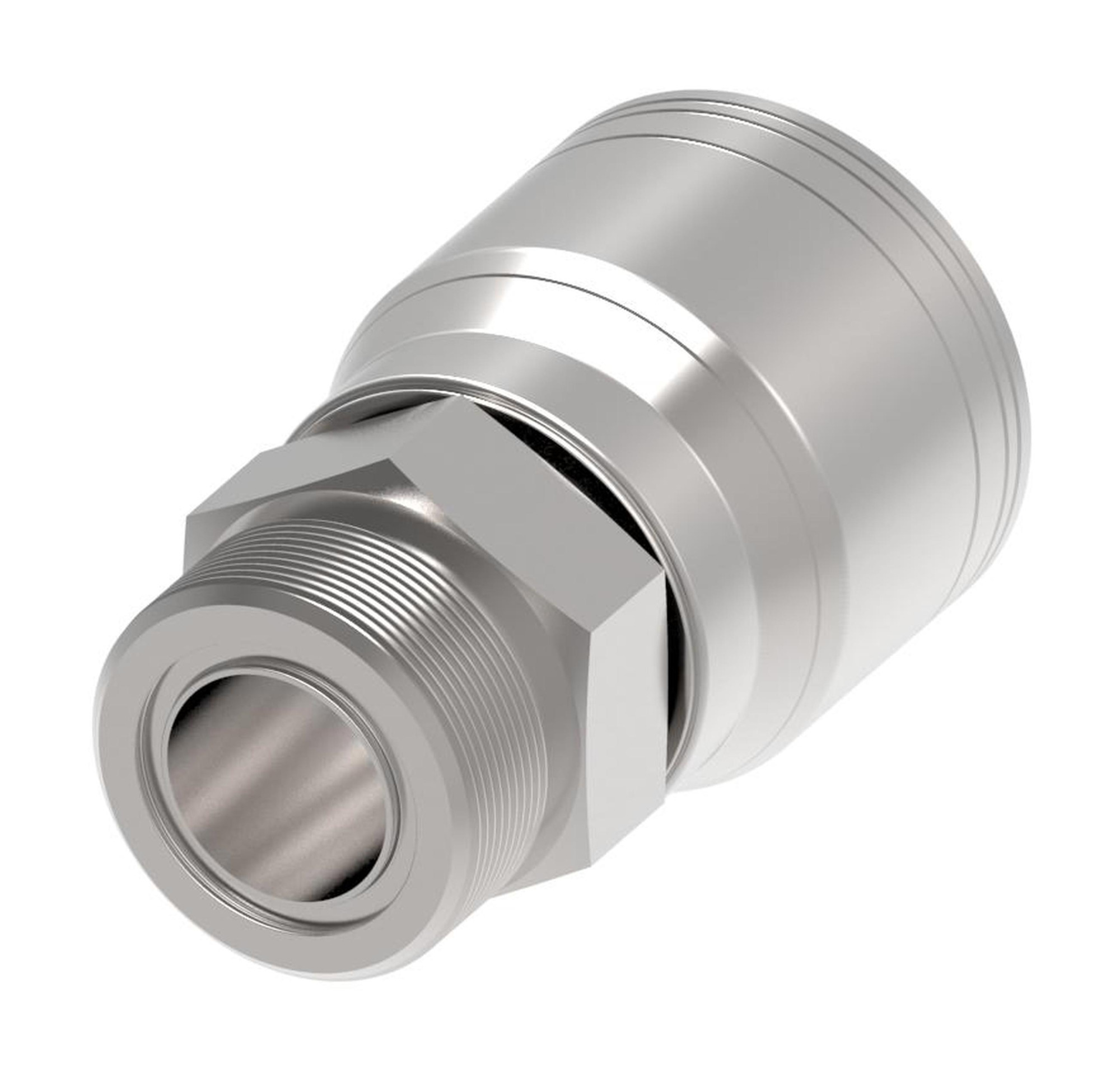

Danfoss

1AA16MR16

HOSE FTG, 1A/16, ORS-M/16, CS, STR

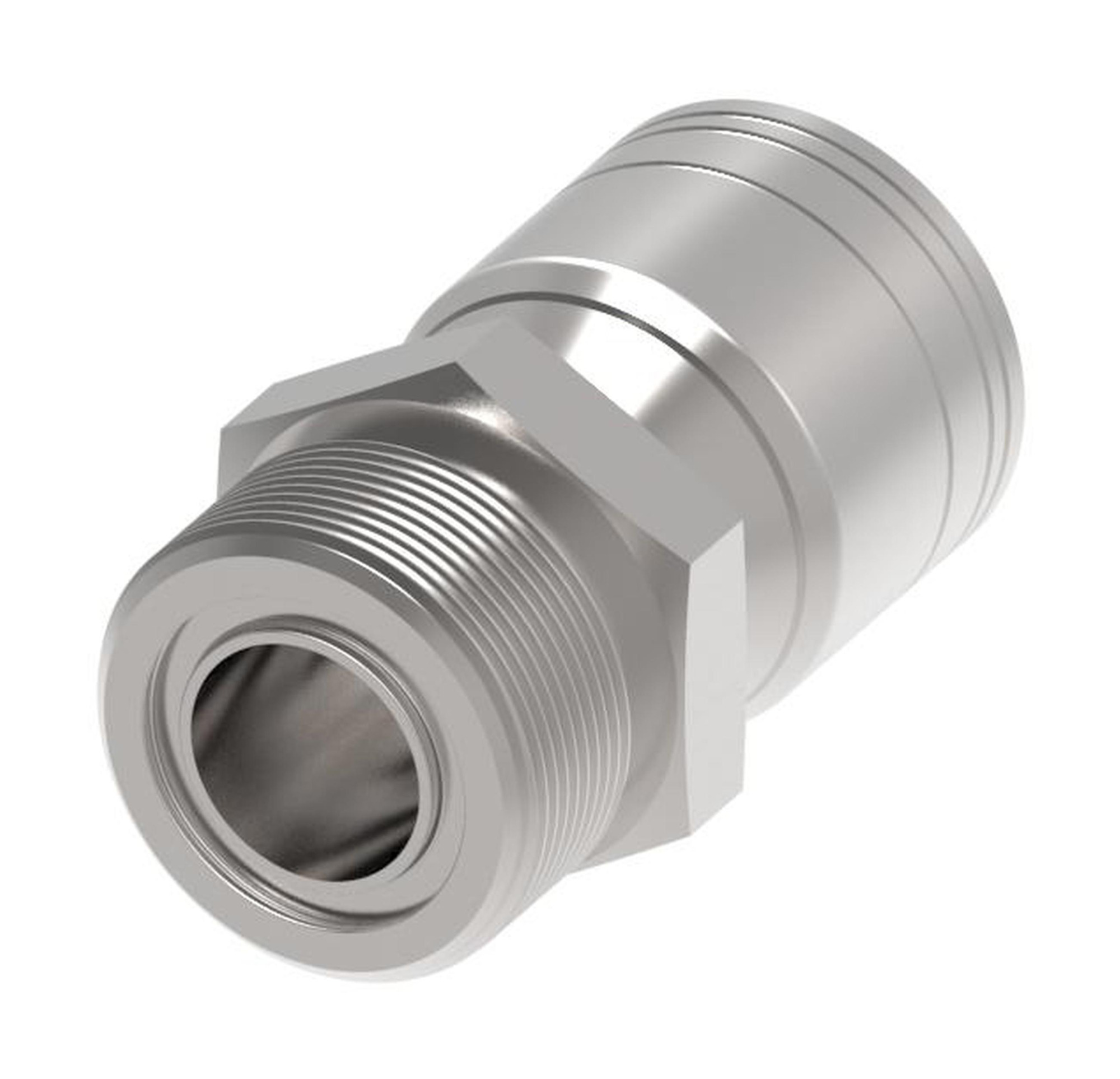

Danfoss

1AA16MR12

HOSE FTG, 1A/12, ORS-M/16, CS, STR

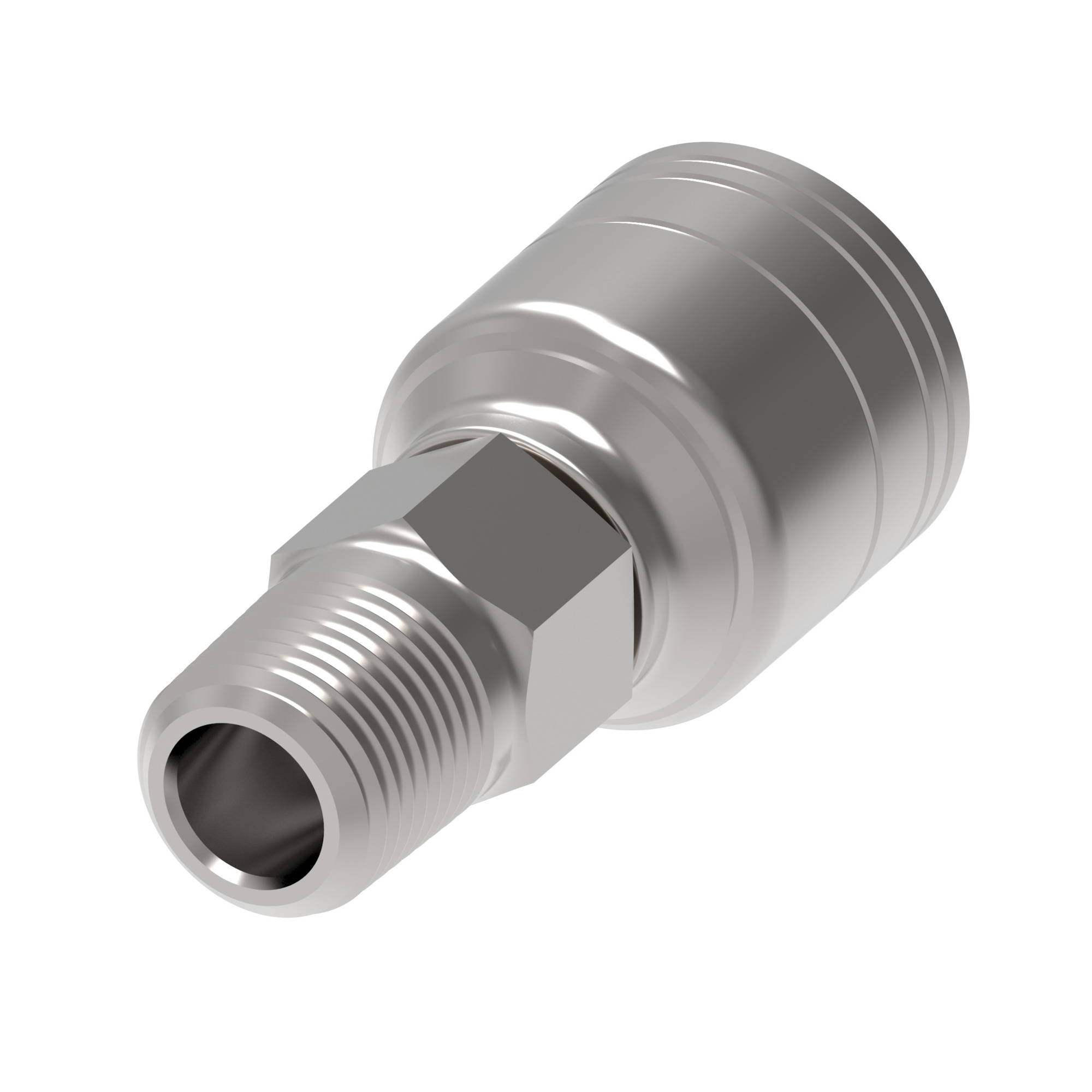

Danfoss

1AA16MP20

HOSE FTG, 1A/20, NPTF-M/16, CS, STR

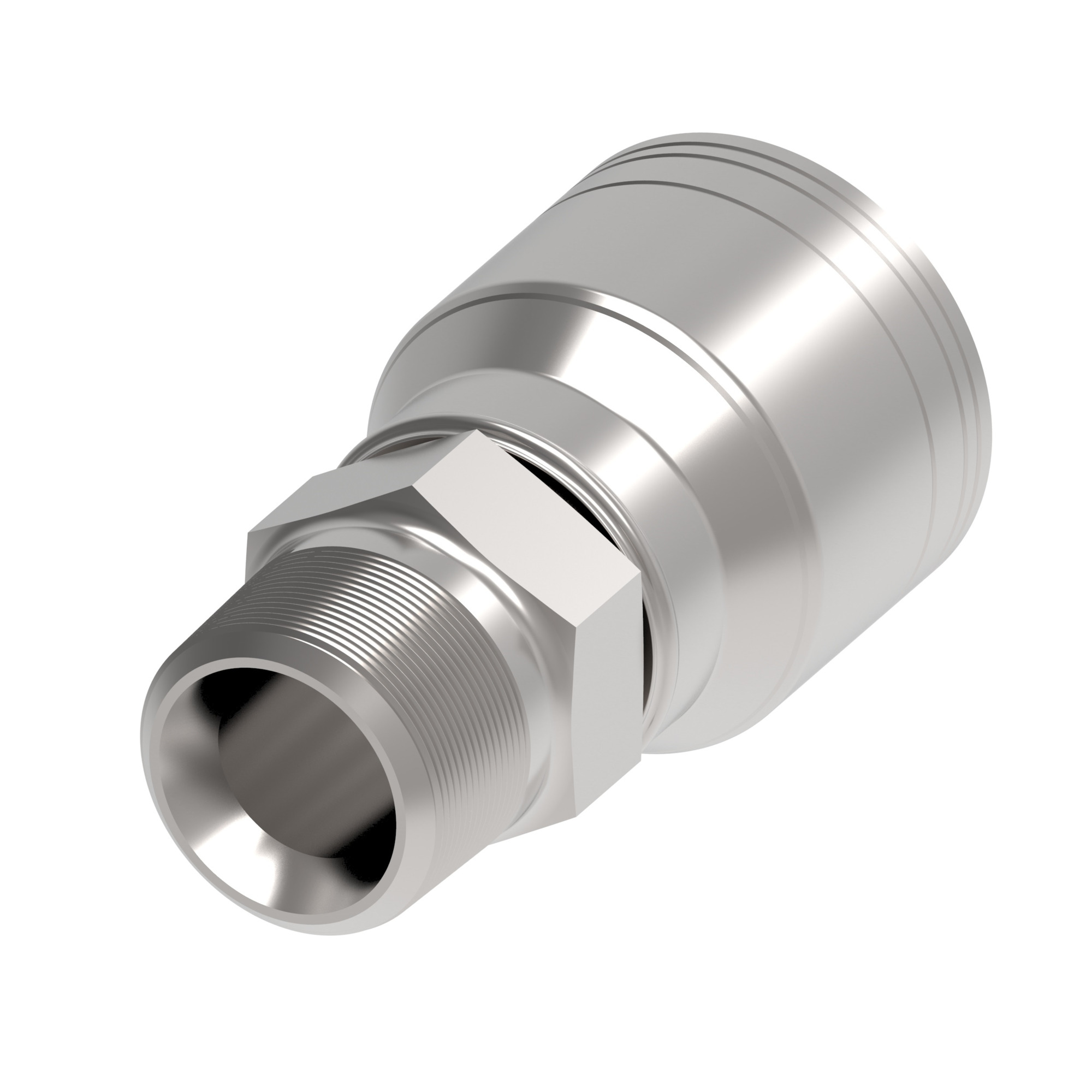

Danfoss

1AA16MP16C

HOSE FTG, 1A/16, NPTF-M/16, AP, STR

Danfoss

1AA16MP16

HOSE FTG, 1A/16, NPTF-M/16, CS, STR

Danfoss

1AA16MP12

HOSE FTG, 1A/12, NPTF-M/16, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	A dimension IN	A dimension MM	Product length in	Product length mm
1AA20MJ20	678146180711	3.710	94.300	3.890	98.806
1AA20MJ16	678146126245	3.030	77.000	3.030	76.962
1AA20FRC20	678146180698	5.120	130.100	6.230	158.242
1AA20FRB20	678146180674	5.120	130.100	6.230	158.242
1AA20FRB16	678146126238	5.830	148.100	6.760	171.704
1AA20FRA20	678146180667	4.930	125.100	6.610	16.786
1AA20FRA16	678146126221	4.600	116.900	6.150	156.210
1AA20FR20	678146180650	3.890	98.800	4.640	117.856
1AA20FR16	678146126214	3.170	80.500	3.750	95.250
1AA20FJC20	678146180636	4.070	103.500	5.250	133.350
1AA20FJB20	678146180612	4.070	103.500	5.250	133.350
1AA20FJA20	678146180599	4.270	108.400	6.080	154.432
1AA20FJ20	678146180575	3.440	87.300	3.610	91.694
1AA20FJ16	678146126207	3.300	83.700	3.170	80.518
1AA20DS12C	—	2.830	72.000	2.830	71.882
1AA20DL12C	—	2.340	59.400	2.480	62.992
1AA20	678146169587	1.917	48.700	1.920	48.768
1AA16PS16	678146126184	3.860	98.000	3.880	98.552
1AA16MR16	678146126177	3.770	80.500	3.170	80.518
1AA16MR12	678146126160	2.400	61.200	2.530	64.262
1AA16MP20	678146180568	3.480	88.500	3.660	92.964
1AA16MP16C	678146169556	3.190	81.100	3.220	87.122
1AA16MP16	678146126153	3.340	84.900	3.430	87.122
1AA16MP12	678146126146	2.670	67.900	2.790	70.866

Common to all listed parts

Construction Style	Crimp
Series	1A/Z Series
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
