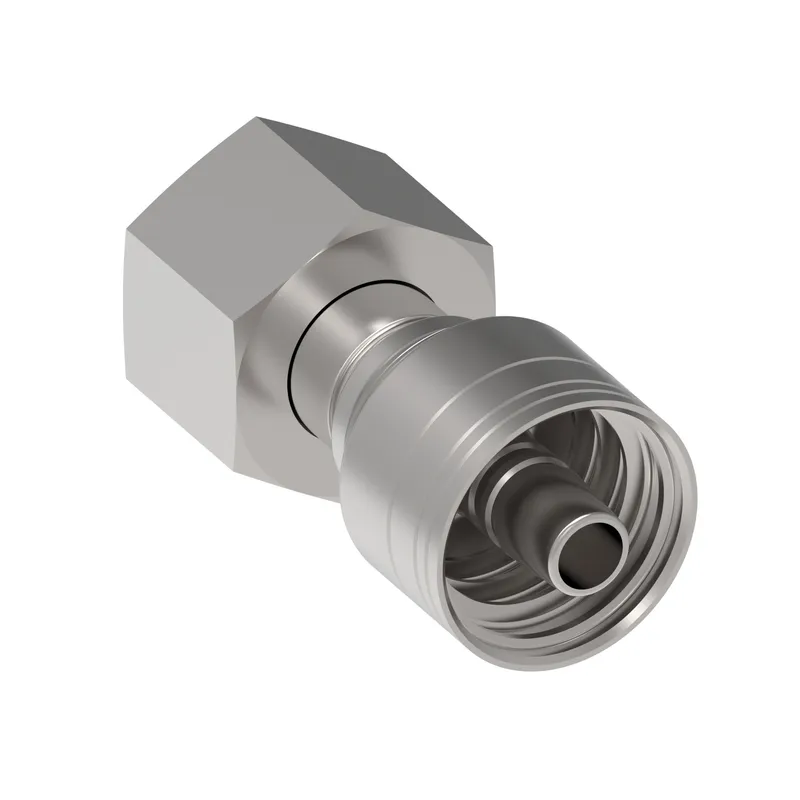

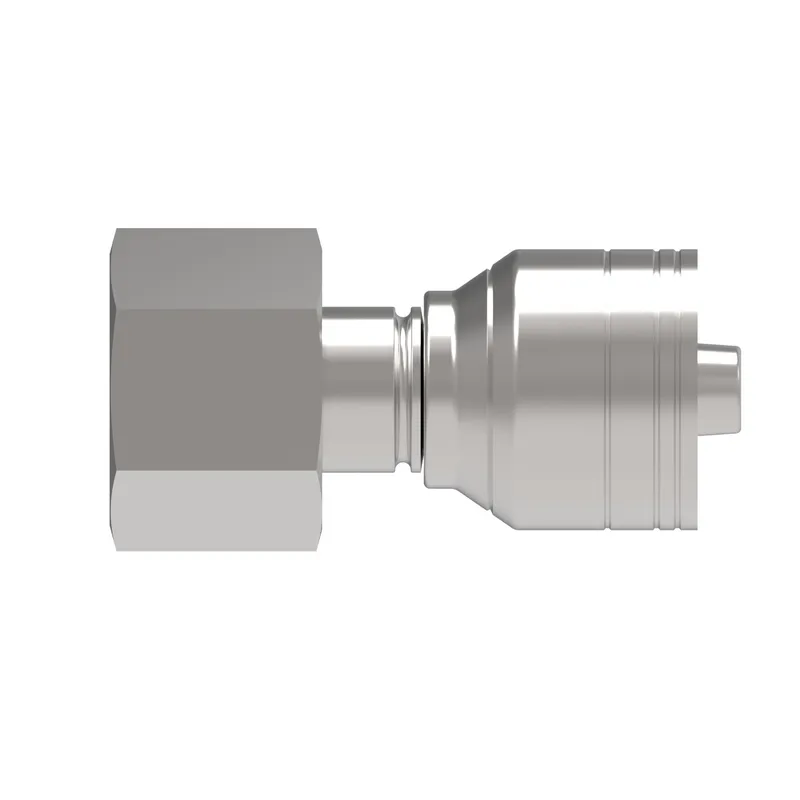

Danfoss 1AA20DS12C

HOSE FTG, 1A/12, DKOH-B/20, CS, STR

MPN: 1AA20DS12C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA20DS12C?

Danfoss HOSE FTG, 1A/12, DKOH-B/20, CS, STR, manufacturer part number 1AA20DS12C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.830
A dimension MM	72.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	2661 (Size dependent), FC310, FC510, FC579, FC611, FC619 (Size dependent), FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH194, GH195, GH663, GH681, GH781, GH793
Construction Style	Crimp
End connection torque	125-140 lb-ft(170-190 Nm)
End size 1	-20
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Dura-Kote
Hex size 2 IN	1.810
Hex size 2 MM	45.974
Hose cut off factor IN	1.650
Hose cut off factor MM	41.800
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	2.090
Product height mm	53.086
Product length in	2.830
Product length mm	71.882
Product material	Carbon steel
Product width in	1.810
Product width mm	45.974
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M36x2
Working pressure max BAR	172.00
Working pressure max PSI	2500.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
