Danfoss 1AA16MP12

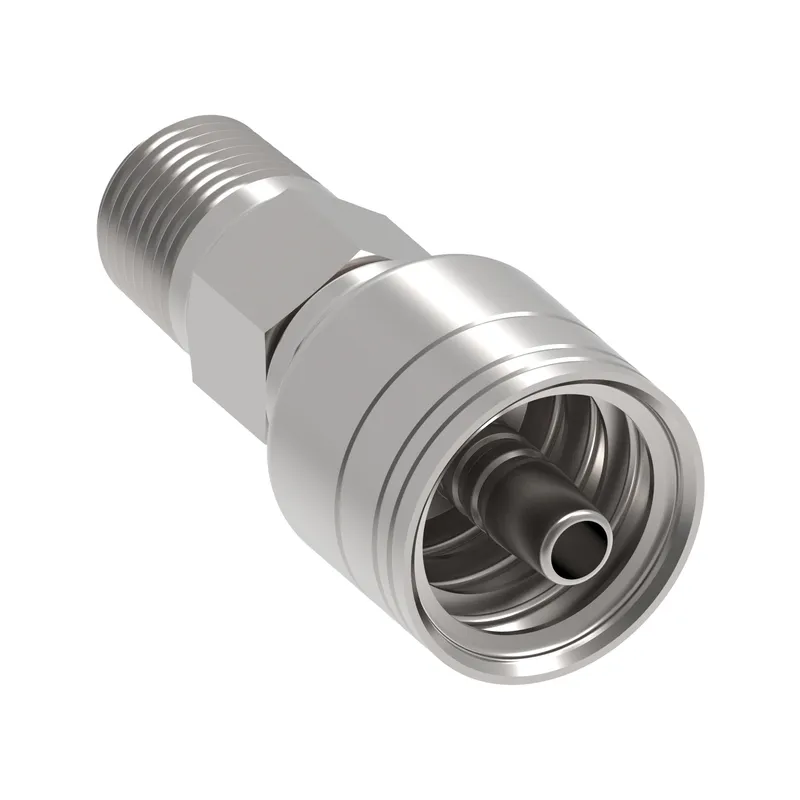

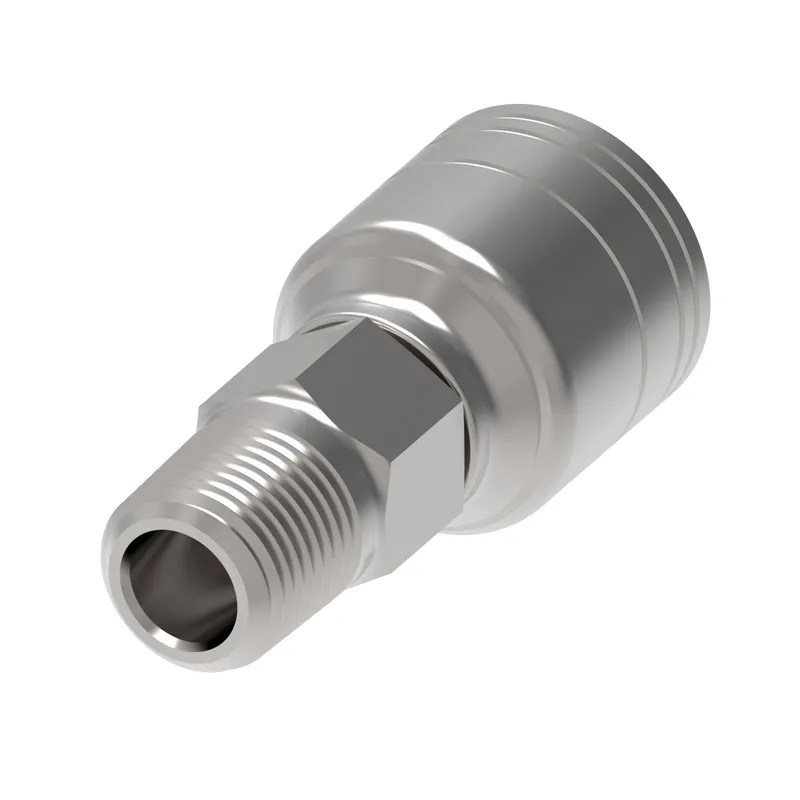

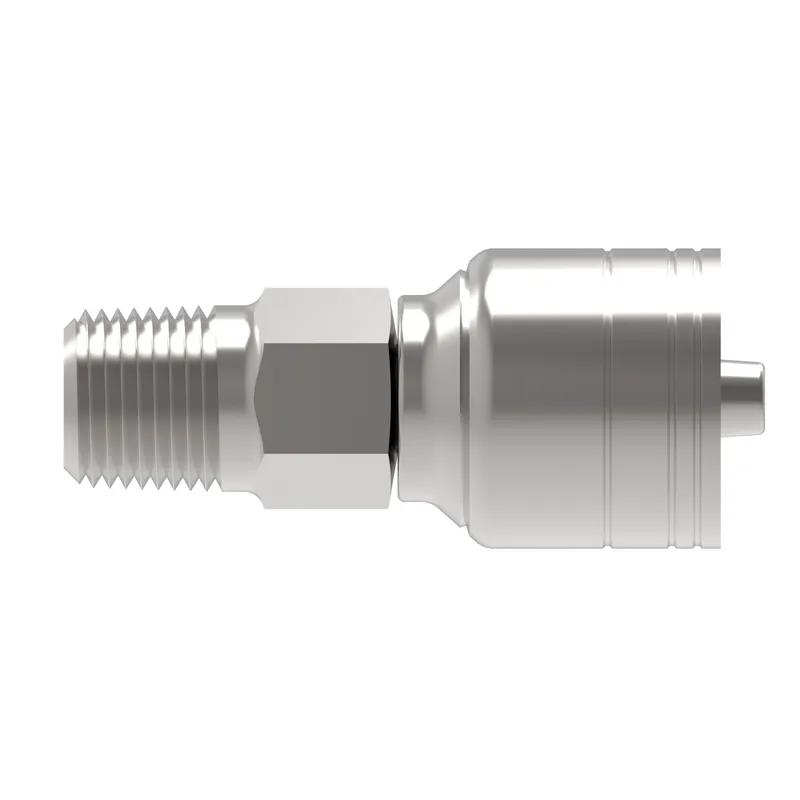

HOSE FTG, 1A/12, NPTF-M/16, CS, STR

MPN: 1AA16MP12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA16MP12?

Danfoss HOSE FTG, 1A/12, NPTF-M/16, CS, STR, manufacturer part number 1AA16MP12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126146
A dimension IN	2.670
A dimension MM	67.900
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End size 1	-16
End Type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 2 MM	35.000
Hose cut off factor IN	1.610
Hose cut off factor MM	40.800
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.580
Product height mm	40.132
Product length in	2.790
Product length mm	70.866
Product material	Carbon steel
Product width in	1.560
Product width mm	39.624
Series	1A/Z Series
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
