Danfoss 1AA20FJC20

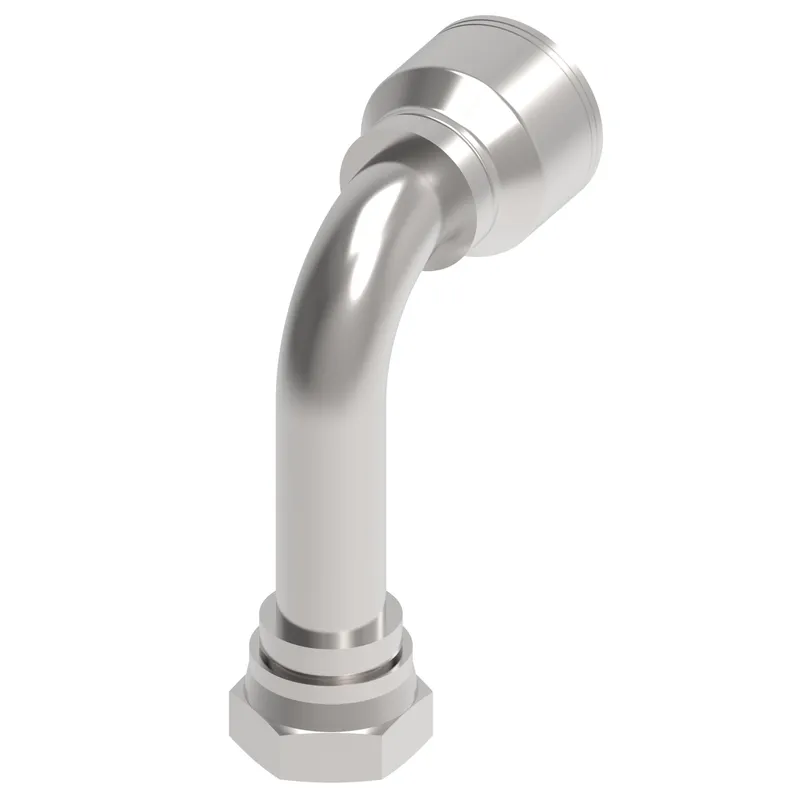

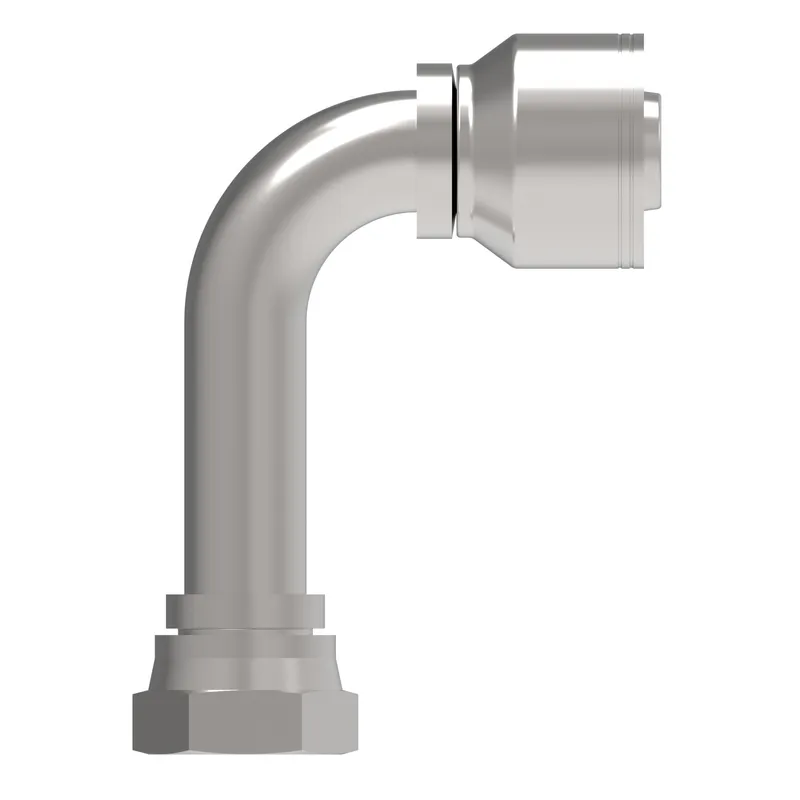

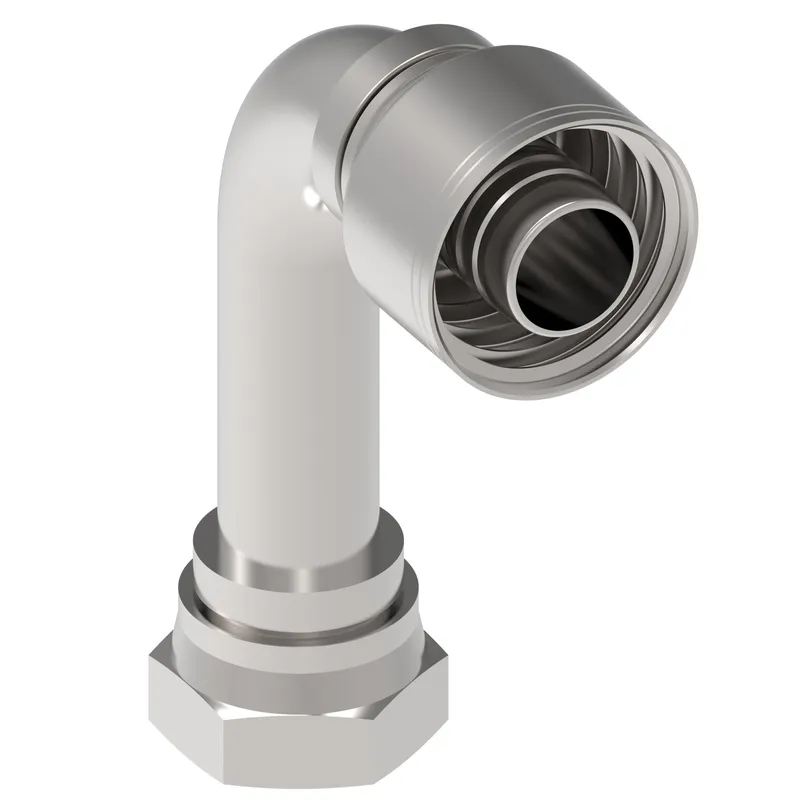

HOSE FTG, 1A/20, JIC-F/20, CS, 90D

MPN: 1AA20FJC20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA20FJC20?

Danfoss HOSE FTG, 1A/20, JIC-F/20, CS, 90D, manufacturer part number 1AA20FJC20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146180636
A dimension IN	4.070
A dimension MM	103.500
Angle shape	90 Degree
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Drop dimension IN	5.530
Drop dimension MM	140.50
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End Type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hose cut off factor IN	2.520
Hose cut off factor MM	64.000
Hose size	-20
Inside diameter IN	1.010
Inside diameter MM	25.700
Product height in	7.370
Product height mm	187.198
Product length in	5.250
Product length mm	133.350
Product material	Carbon steel
Product width in	2.410
Product width mm	61.214
Series	1A/Z Series
Thread size 1	1 5/8-12 UN
Working pressure max BAR	172.00
Working pressure max PSI	2500.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
