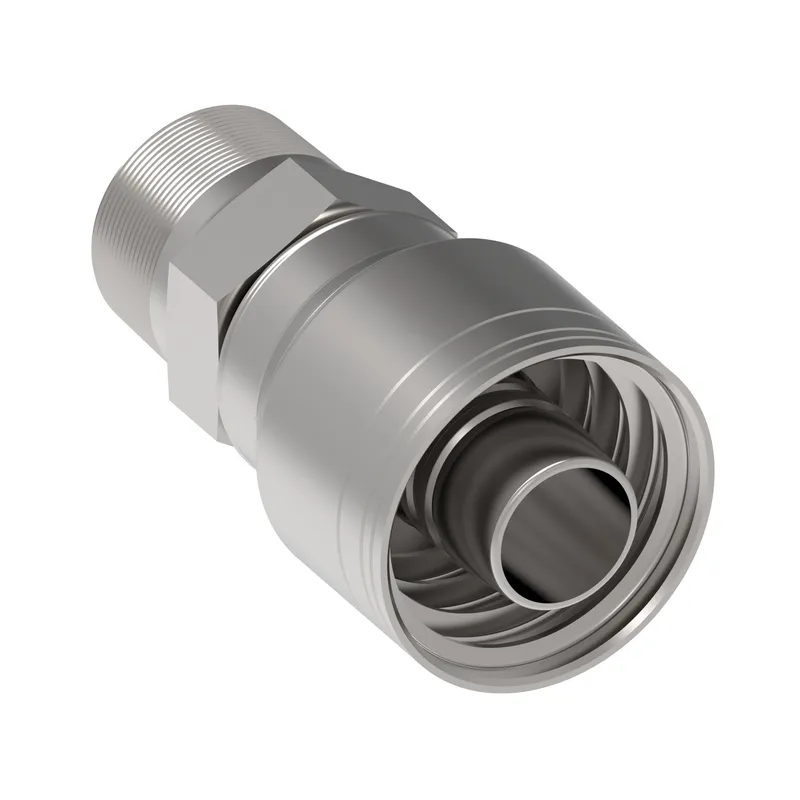

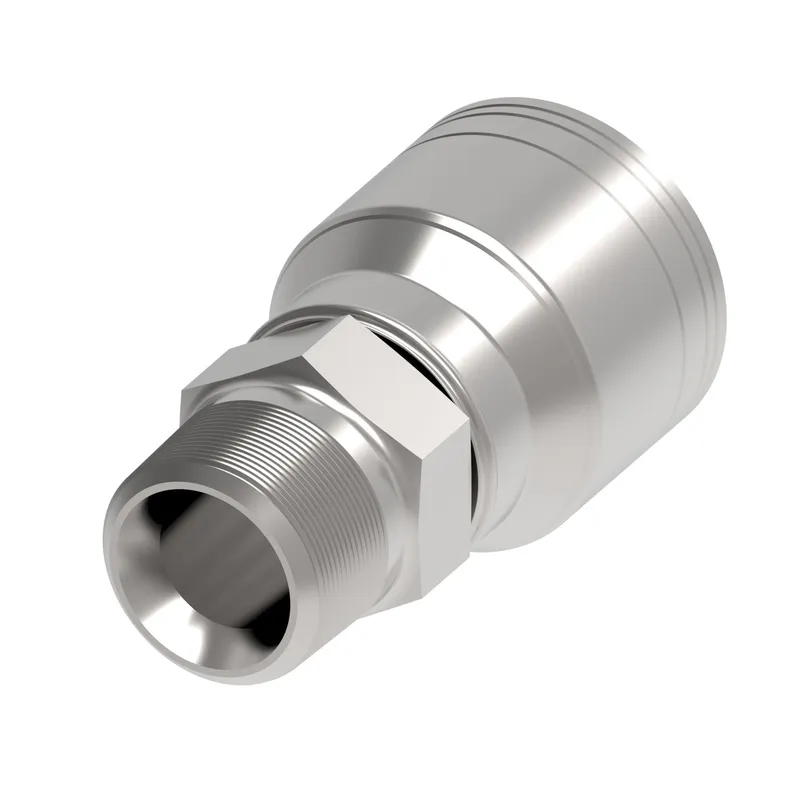

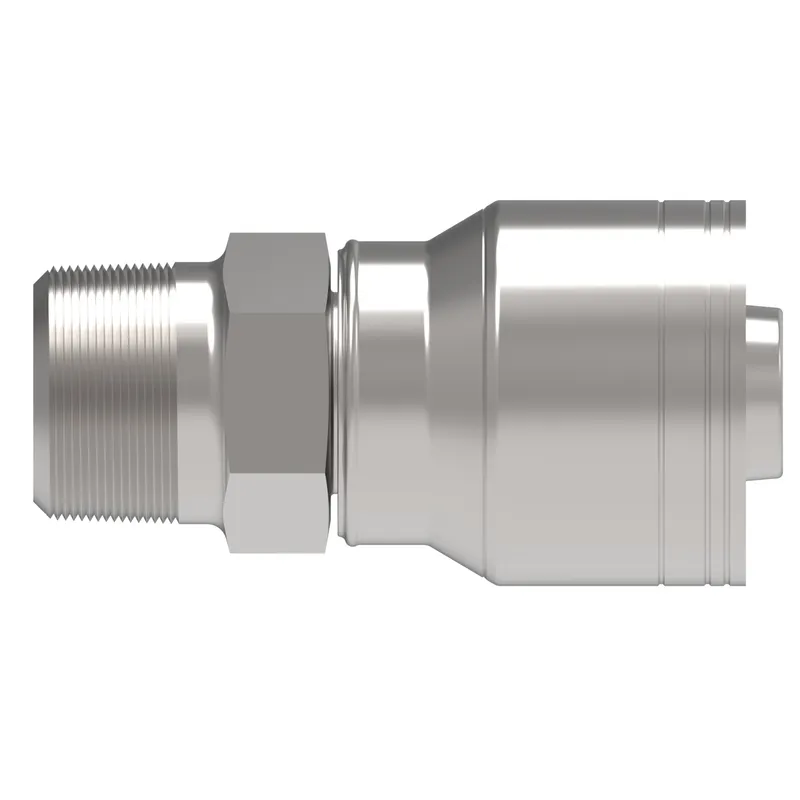

Danfoss 1AA16MP16C

HOSE FTG, 1A/16, NPTF-M/16, AP, STR

MPN: 1AA16MP16C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA16MP16C?

Danfoss HOSE FTG, 1A/16, NPTF-M/16, AP, STR, manufacturer part number 1AA16MP16C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146169556
A dimension IN	3.190
A dimension MM	81.100
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End size 1	-16
End Type 1	Male pipe (NPTF)
Finish plating	Passivate
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	1.377
Hex size 2 MM	35.000
Hose cut off factor IN	1.860
Hose cut off factor MM	47.300
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.700
Product height in	1.940
Product height mm	49.276
Product length in	3.220
Product length mm	87.122
Product material	316 Stainless steel
Product width in	1.940
Product width mm	49.276
Series	1A/Z Series
Working pressure max BAR	276
Working pressure max PSI	4000
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
