Danfoss 1AA20DL12C

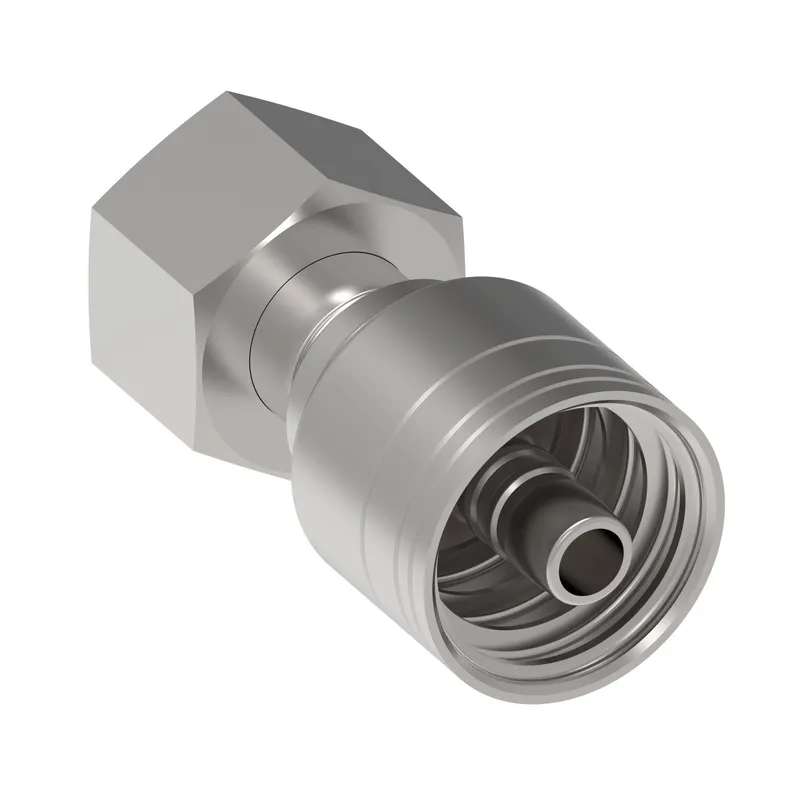

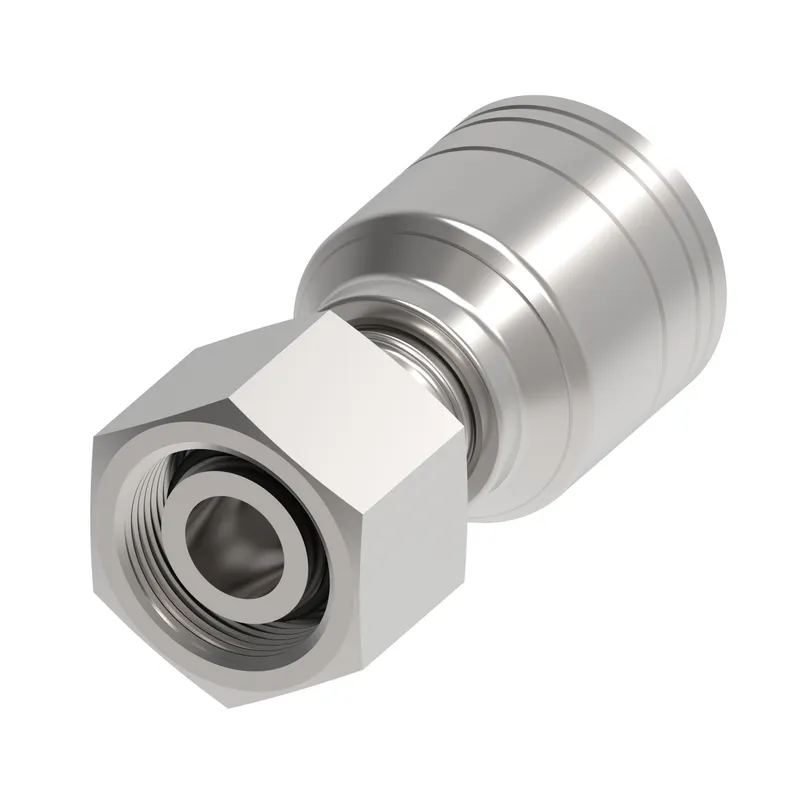

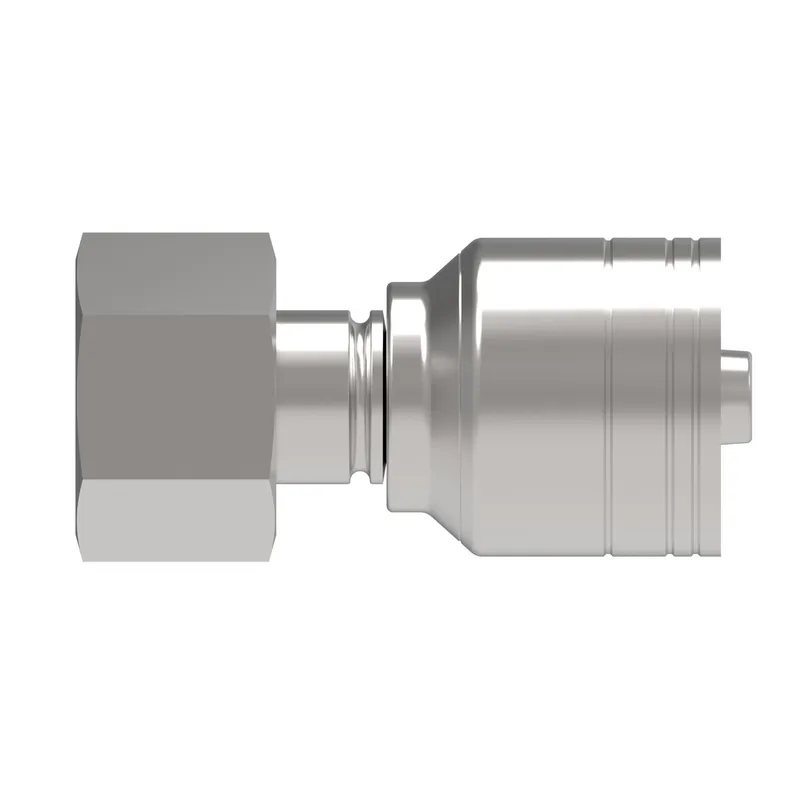

HOSE FTG, 1A/12, DKOL/20, AP, STR

MPN: 1AA20DL12C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA20DL12C?

Danfoss HOSE FTG, 1A/12, DKOL/20, AP, STR, manufacturer part number 1AA20DL12C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.340
A dimension MM	59.400
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End size 1	-20
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 2 IN	1.430
Hex size 2 MM	36.322
Hose cut off factor IN	1.270
Hose cut off factor MM	32.300
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.660
Product height mm	42.164
Product length in	2.480
Product length mm	62.992
Product material	316 Stainless steel
Product width in	1.560
Product width mm	39.624
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M30x2
Working pressure max BAR	125.00
Working pressure max PSI	1800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
