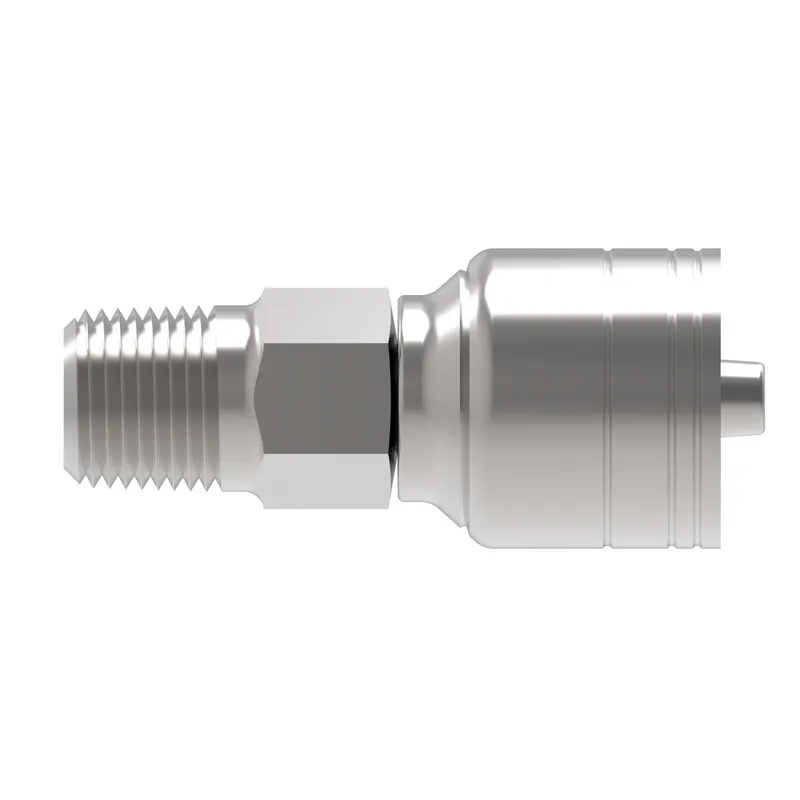

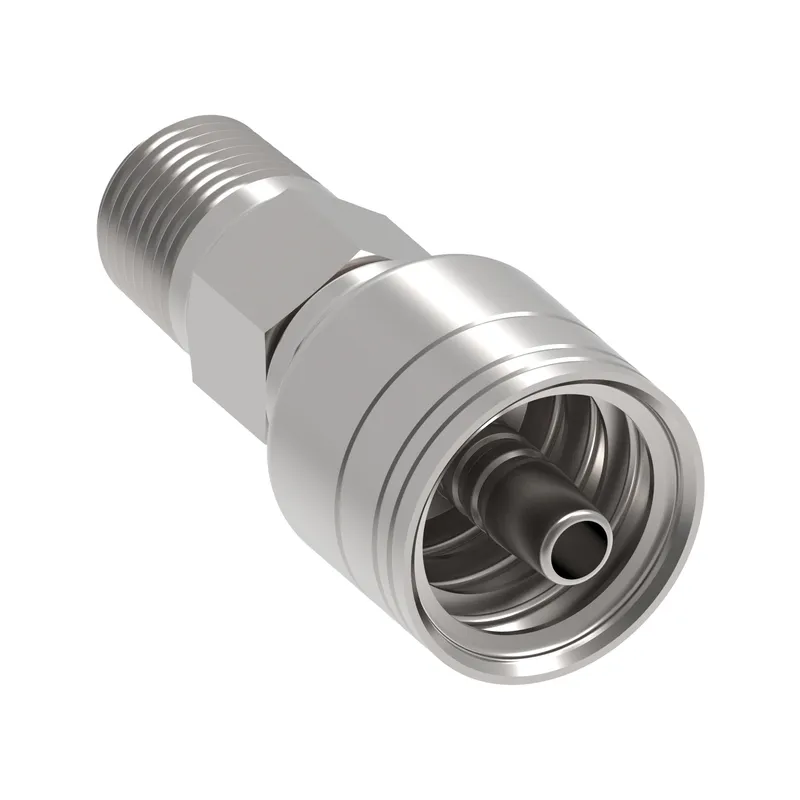

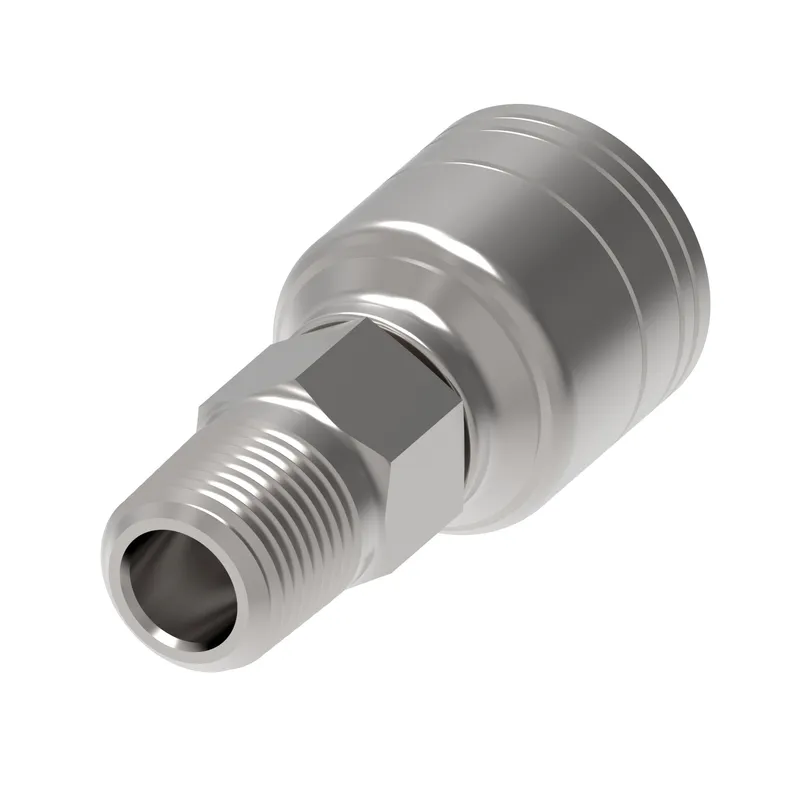

Danfoss 1AA16MP20

HOSE FTG, 1A/20, NPTF-M/16, CS, STR

MPN: 1AA16MP20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA16MP20?

Danfoss HOSE FTG, 1A/20, NPTF-M/16, CS, STR, manufacturer part number 1AA16MP20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146180568
A dimension IN	3.480
A dimension MM	88.500
Angle shape	Straight
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 1	-16
End Type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 2 MM	44.000
Hose cut off factor IN	1.930
Hose cut off factor MM	49.000
Hose size	-20
Inside diameter IN	0.950
Inside diameter MM	24.100
Product height in	2.410
Product height mm	61.214
Product length in	3.660
Product length mm	92.964
Product material	Carbon steel
Product width in	2.410
Product width mm	61.214
Series	1A/Z Series
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA16MP20: frequently asked questions

When can 1AA16MP20 be shipped?

1AA16MP20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA16MP20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA16MP20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA16MP20, subject to availability and destination.
