Danfoss 1AA16MR16

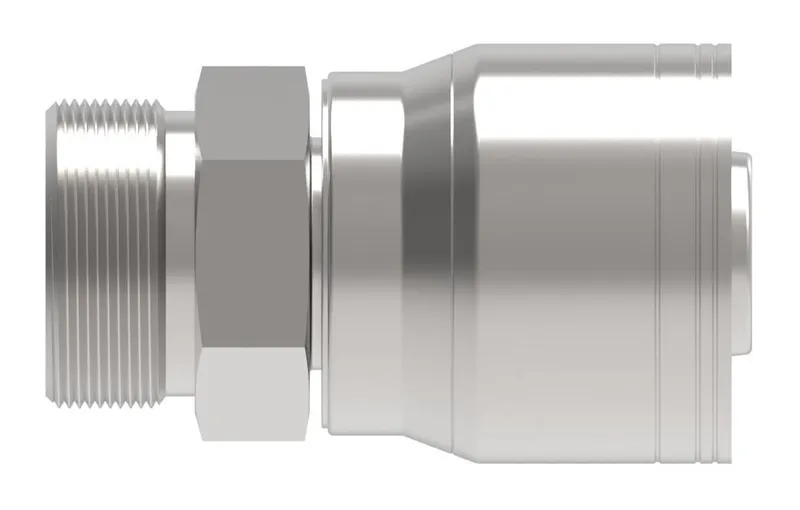

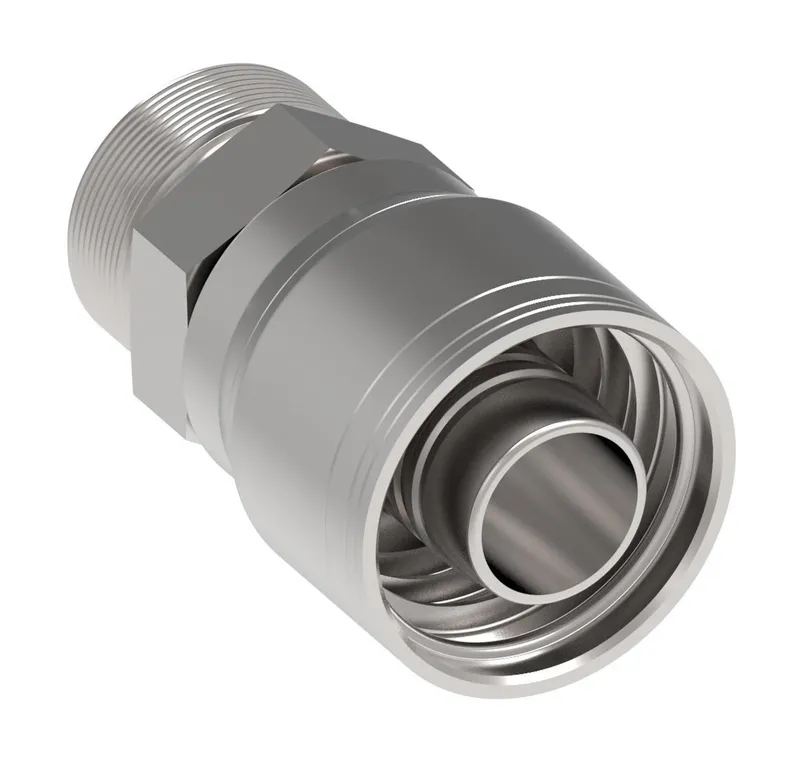

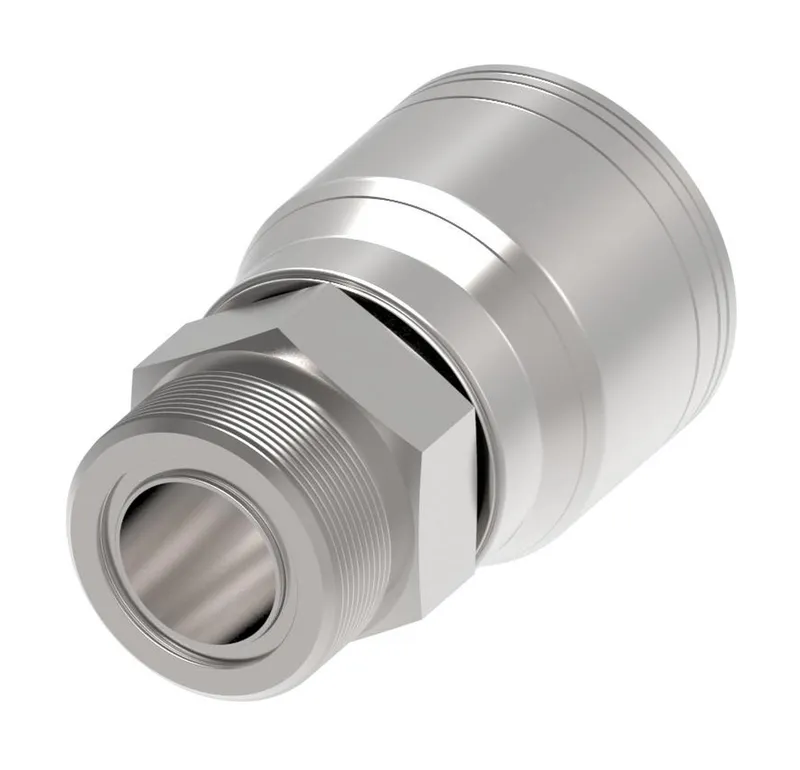

HOSE FTG, 1A/16, ORS-M/16, CS, STR

MPN: 1AA16MR16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA16MR16?

Danfoss HOSE FTG, 1A/16, ORS-M/16, CS, STR, manufacturer part number 1AA16MR16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126177
A dimension IN	3.770
A dimension MM	80.500
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End connection torque	92-100 lb-ft(125-136 Nm)
End size 1	-16
End Type 1	Male ORFS
Finish plating	Dura-Kote
Hex size 2 MM	38.000
Hose cut off factor IN	1.690
Hose cut off factor MM	42.900
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.600
Product height in	1.940
Product height mm	49.276
Product length in	3.170
Product length mm	80.518
Product material	Carbon steel
Product width in	1.940
Product width mm	49.276
Series	1A/Z Series
Thread size 1	1 7/16-12 UN
Working pressure max BAR	414.00
Working pressure max PSI	6000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
