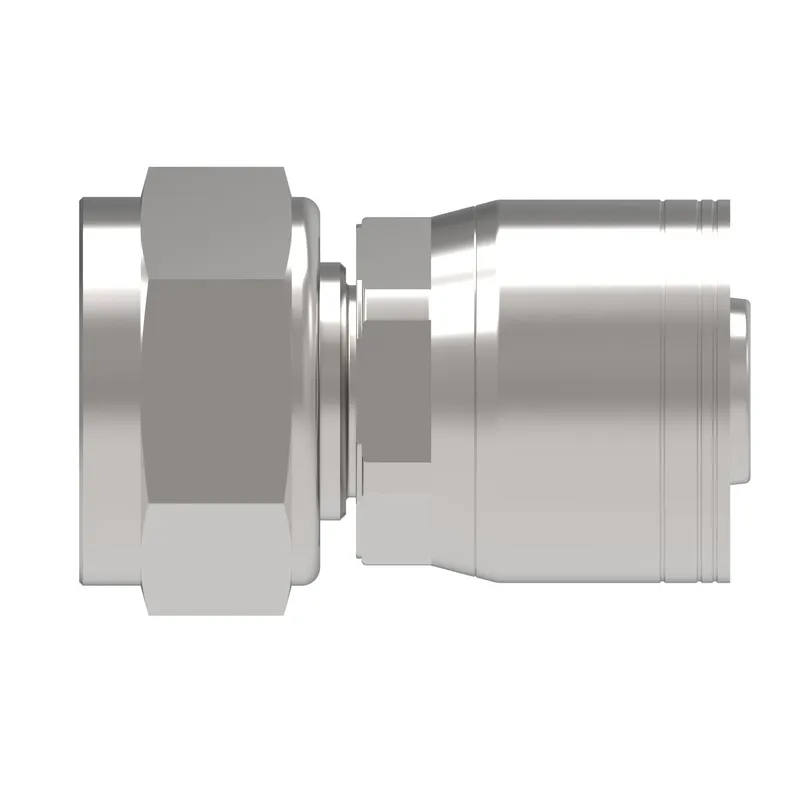

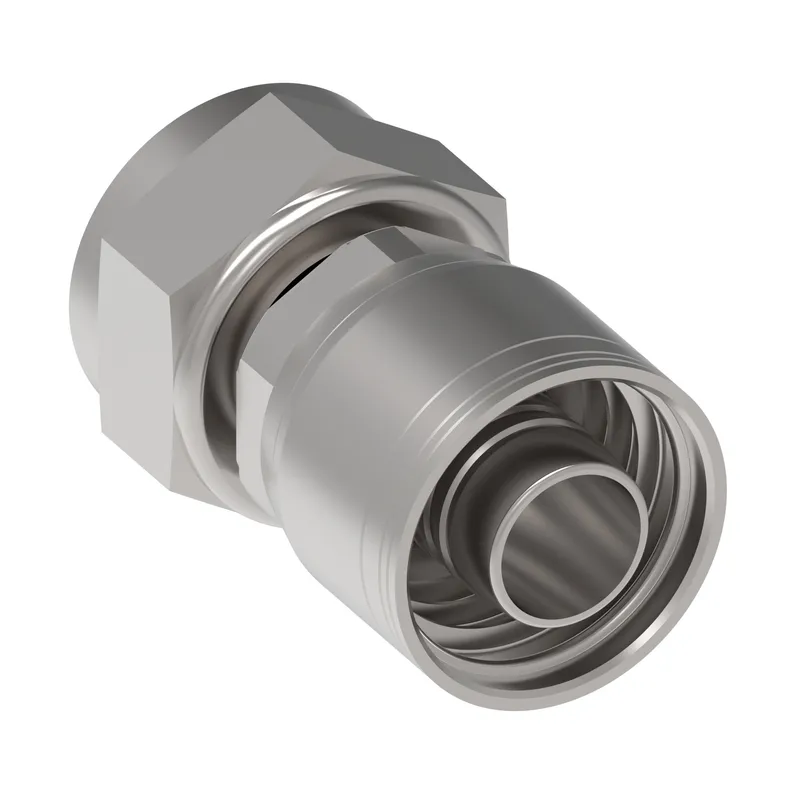

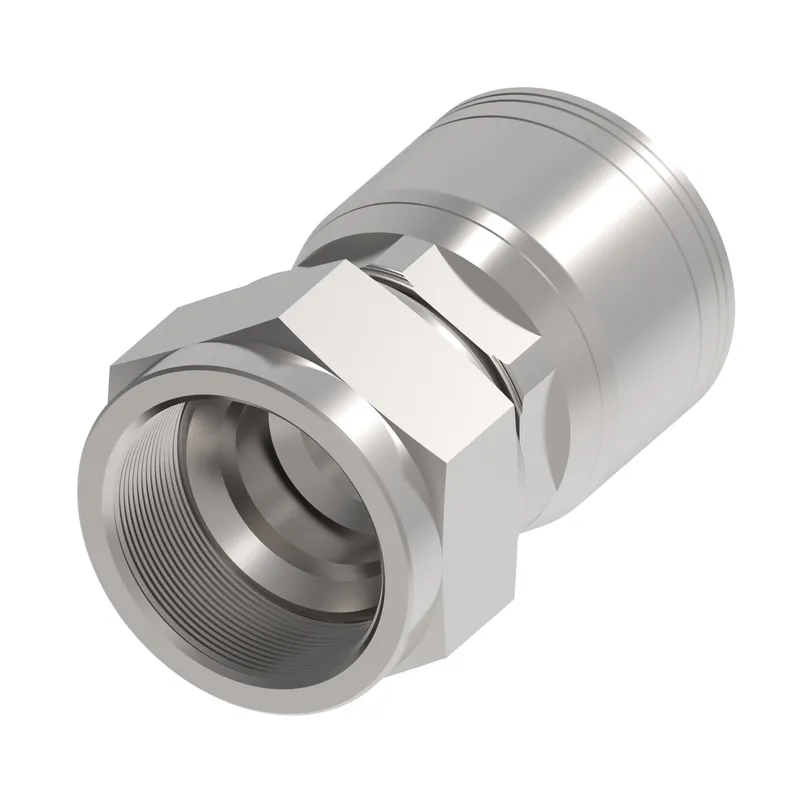

Danfoss 1AA20FJ16

HOSE FTG, 1A/16, JIC-F/20, CS, STR

MPN: 1AA20FJ16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA20FJ16?

Danfoss HOSE FTG, 1A/16, JIC-F/20, CS, STR, manufacturer part number 1AA20FJ16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126207
A dimension IN	3.300
A dimension MM	83.700
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 2 MM	41.000
Hose cut off factor IN	2.020
Hose cut off factor MM	51.400
Hose size	-16
Inside diameter IN	0.820
Inside diameter MM	20.700
Product height in	2.000
Product height mm	50.800
Product length in	3.170
Product length mm	80.518
Product material	Carbon steel
Product width in	2.000
Product width mm	50.8
Series	1A/Z Series
Thread size 1	1 5/8-12 UN
Working pressure max BAR	172
Working pressure max PSI	2500
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
