Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor IN | Product length in | Product length mm |
|---|---|---|---|---|---|
| 1AA4FJ4C | 1.870 | 47.500 | 1.070 | 1.990 | 50.546 |

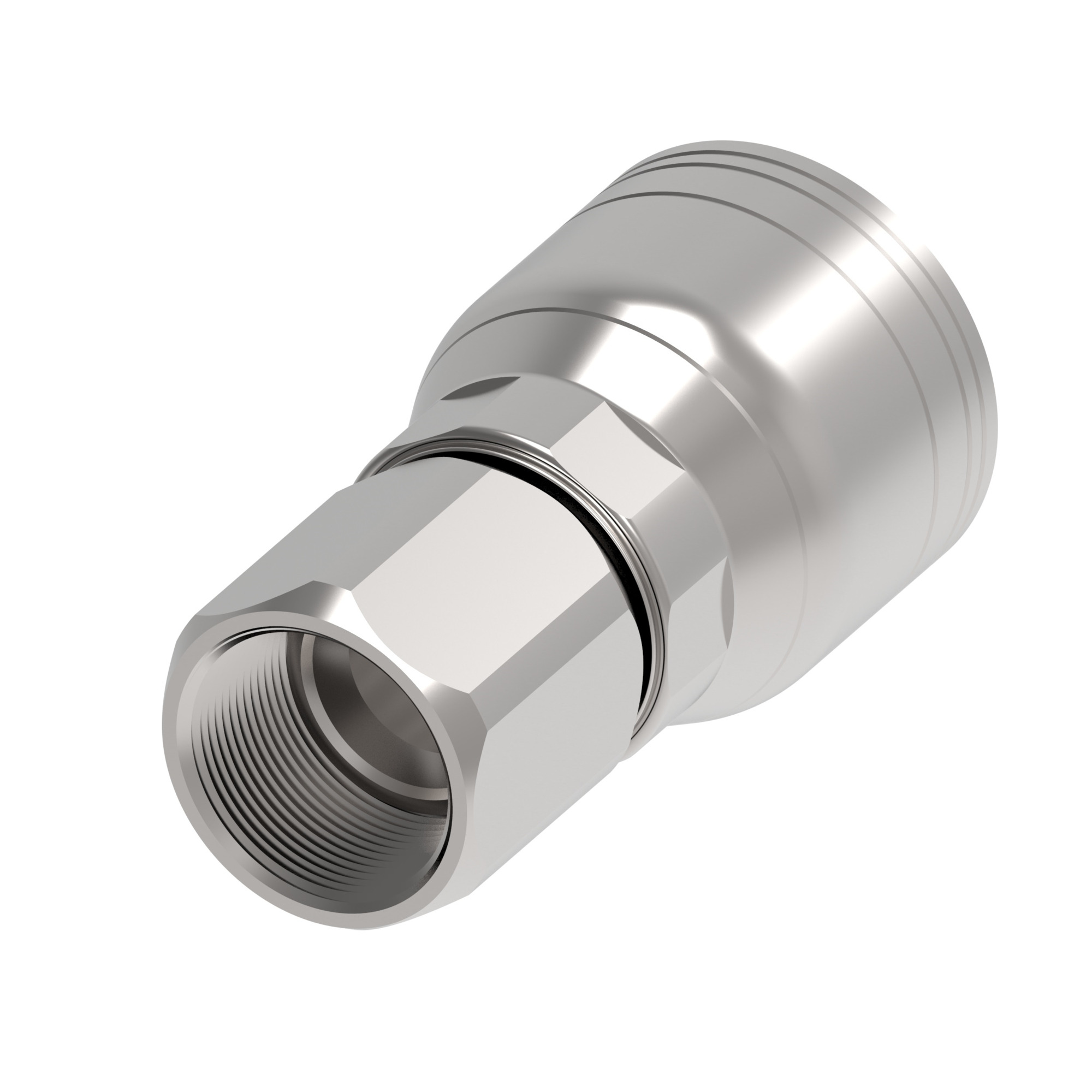

| 1AA4FJ4 | 1.920 | 48.800 | 1.080 | 2.040 | 51.816 |

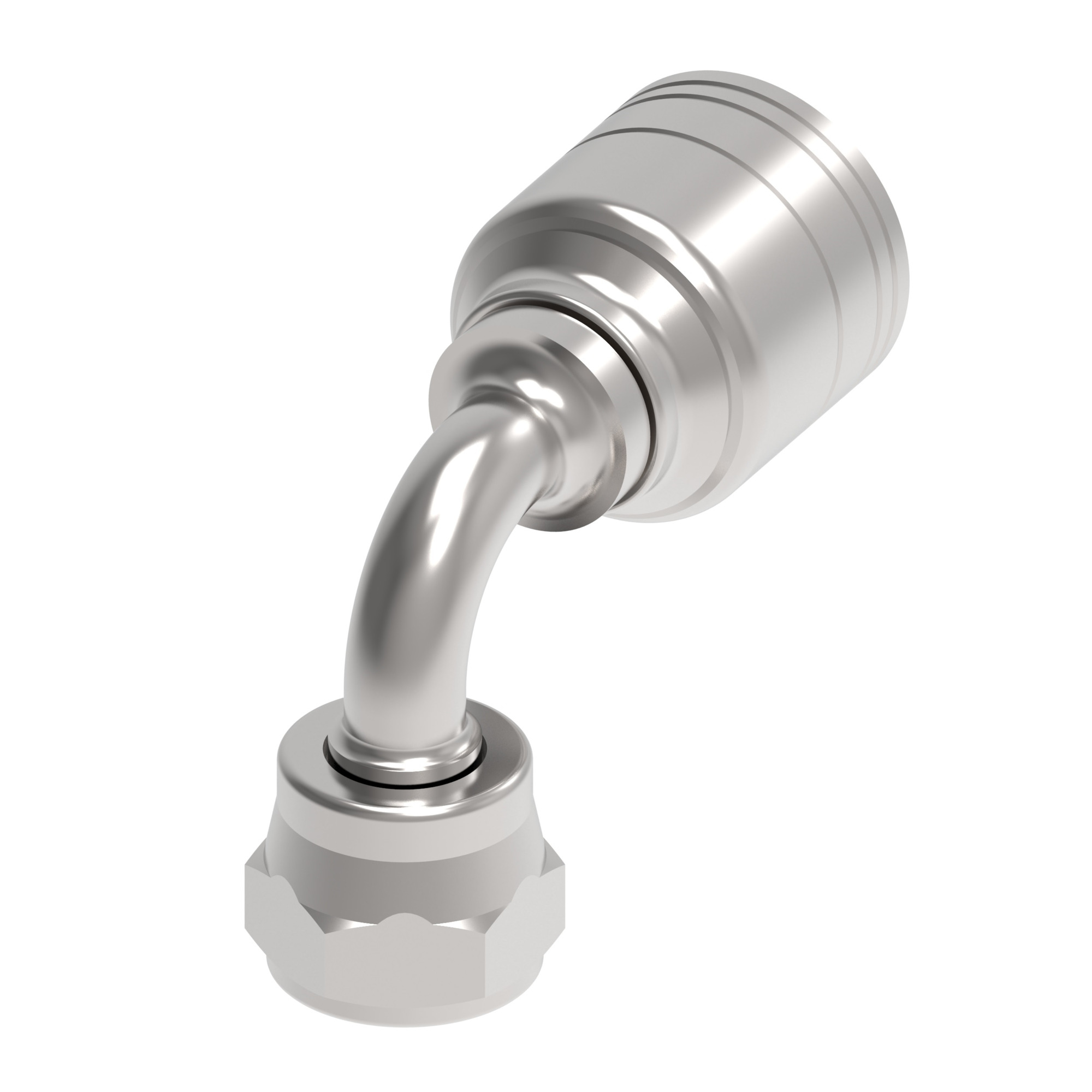

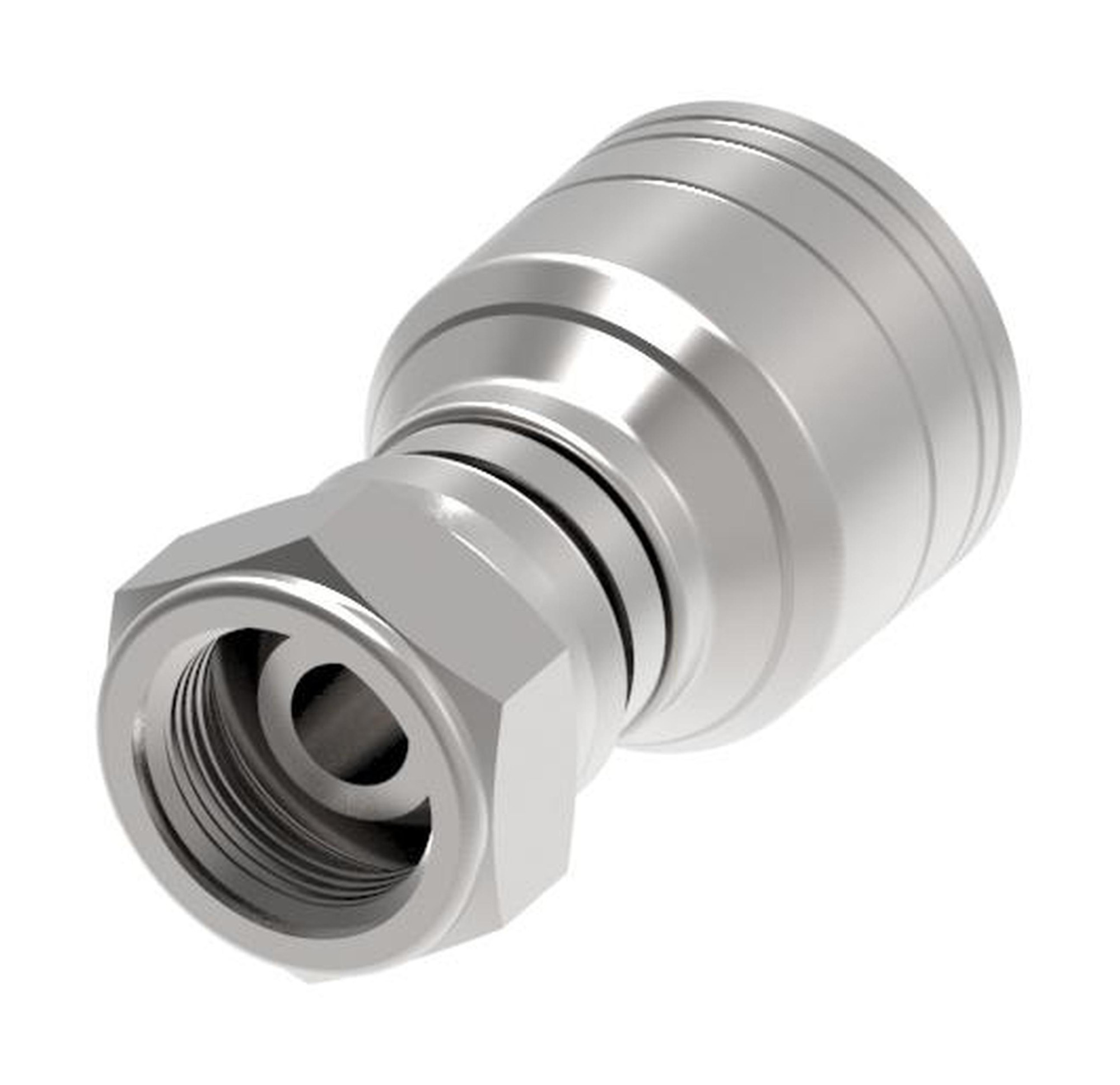

| 1AA4BFB4C | 1.960 | 49.800 | 1.170 | 2.430 | 61.722 |
| 1AA4BF4C | 1.540 | 39.100 | 0.740 | 1.840 | 46.736 |

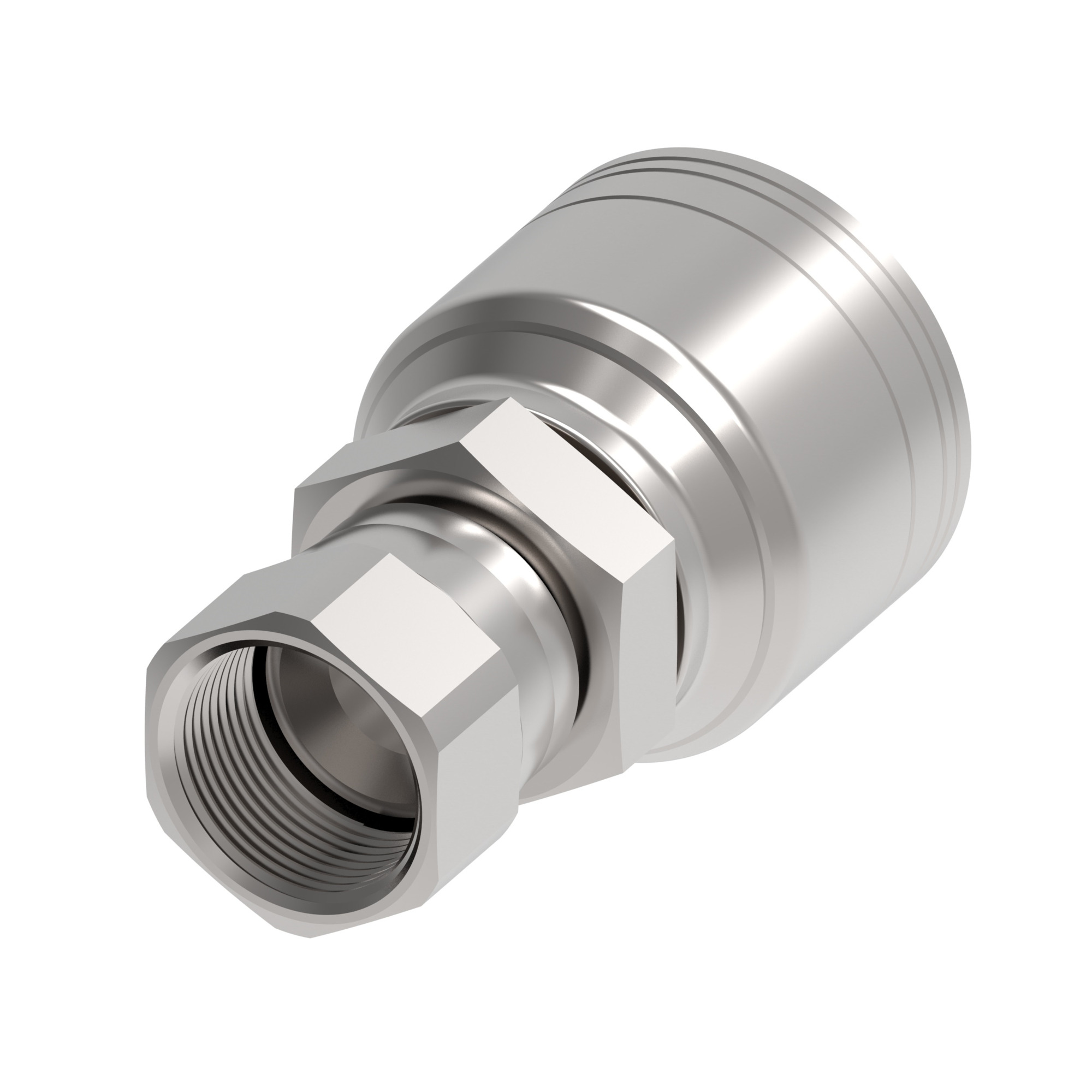

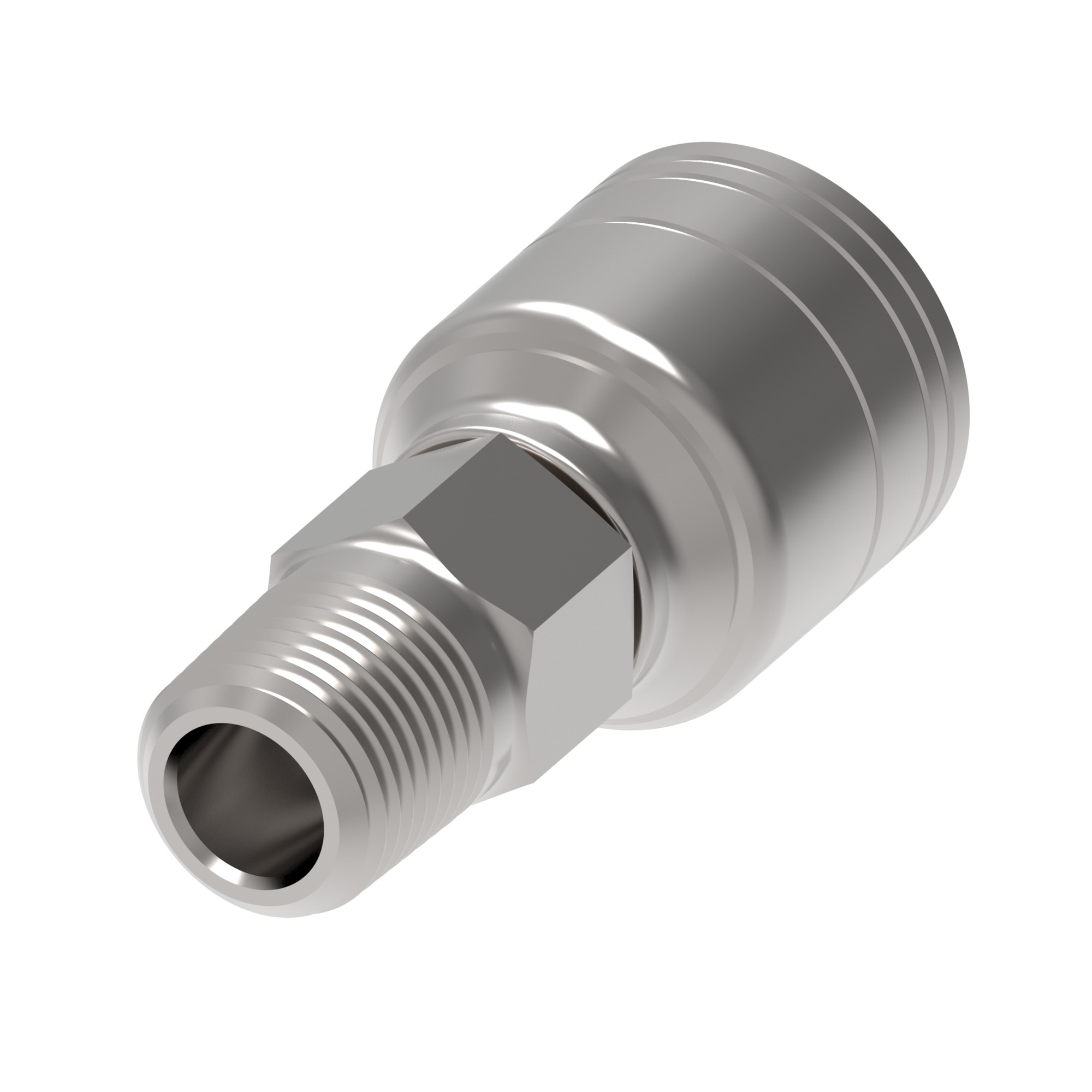

| 1AA3FJ4 | 1.800 | 46.100 | 1.020 | 1.940 | 49.276 |
| 1AA32MP32 | 4.350 | 110.500 | 2.530 | 4.590 | 116.586 |

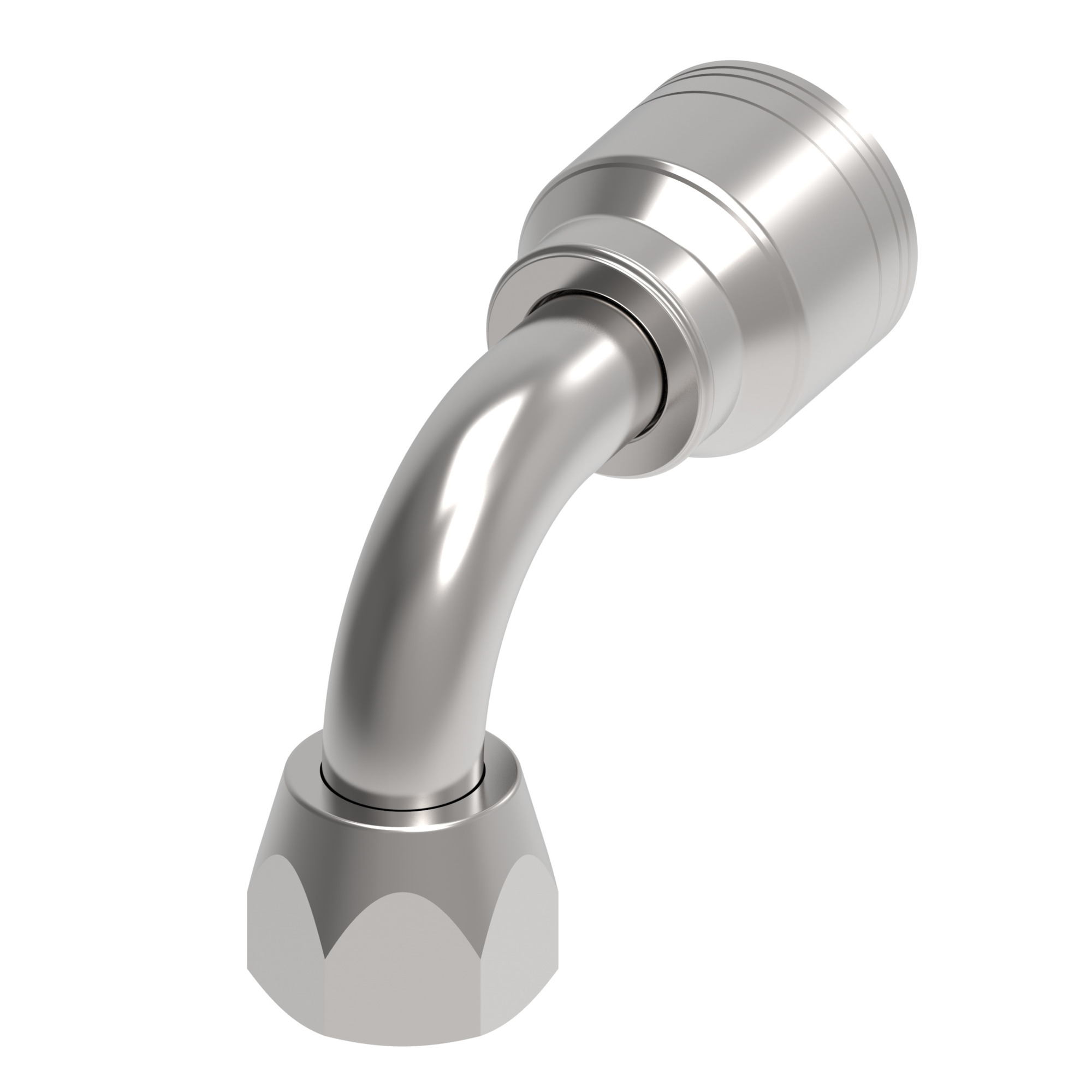

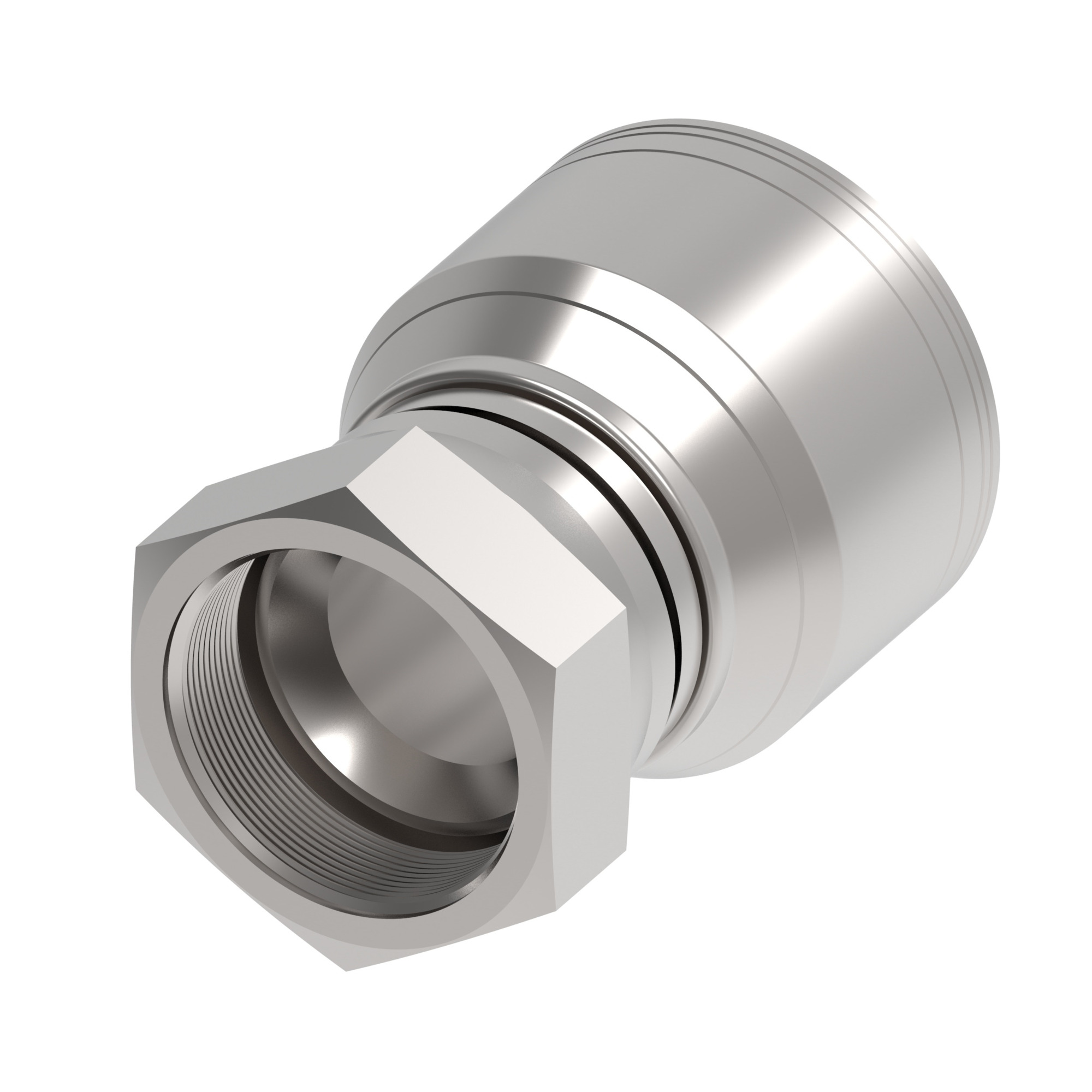

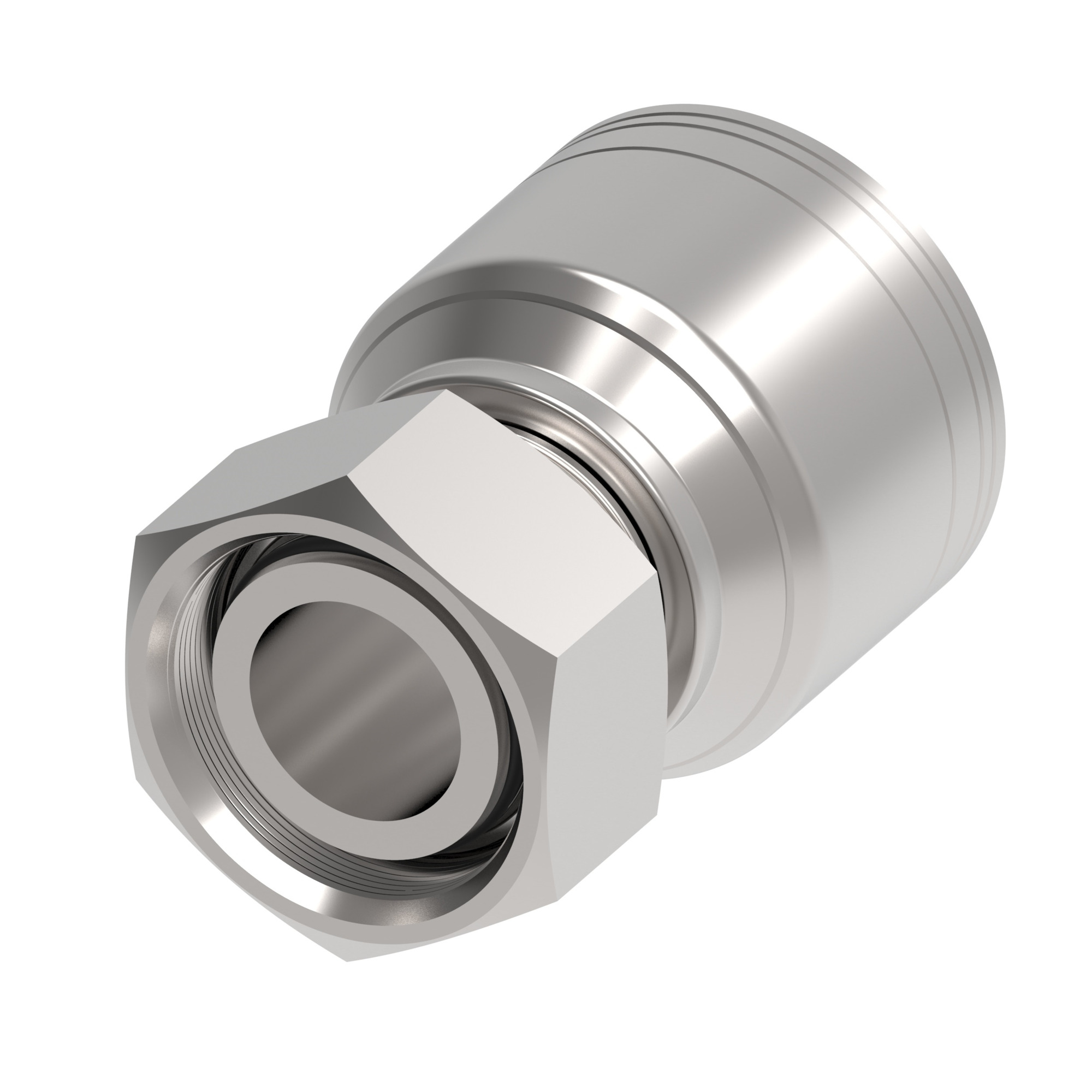

| 1AA32FJB32.141 | 7.240 | 183.800 | 5.430 | 7.240 | 183.896 |
| 1AA32FJ32 | 4.110 | 104.300 | 2.290 | 4.340 | 110.236 |
| 1AA2MP4 | 1.710 | 43.500 | 0.920 | 1.840 | 46.736 |
| 1AA25DL16C | 2.660 | 67.600 | 1.330 | 2.680 | 68.072 |
| 1AA24MP24 | 4.080 | 103.700 | 2.360 | 4.180 | 106.172 |

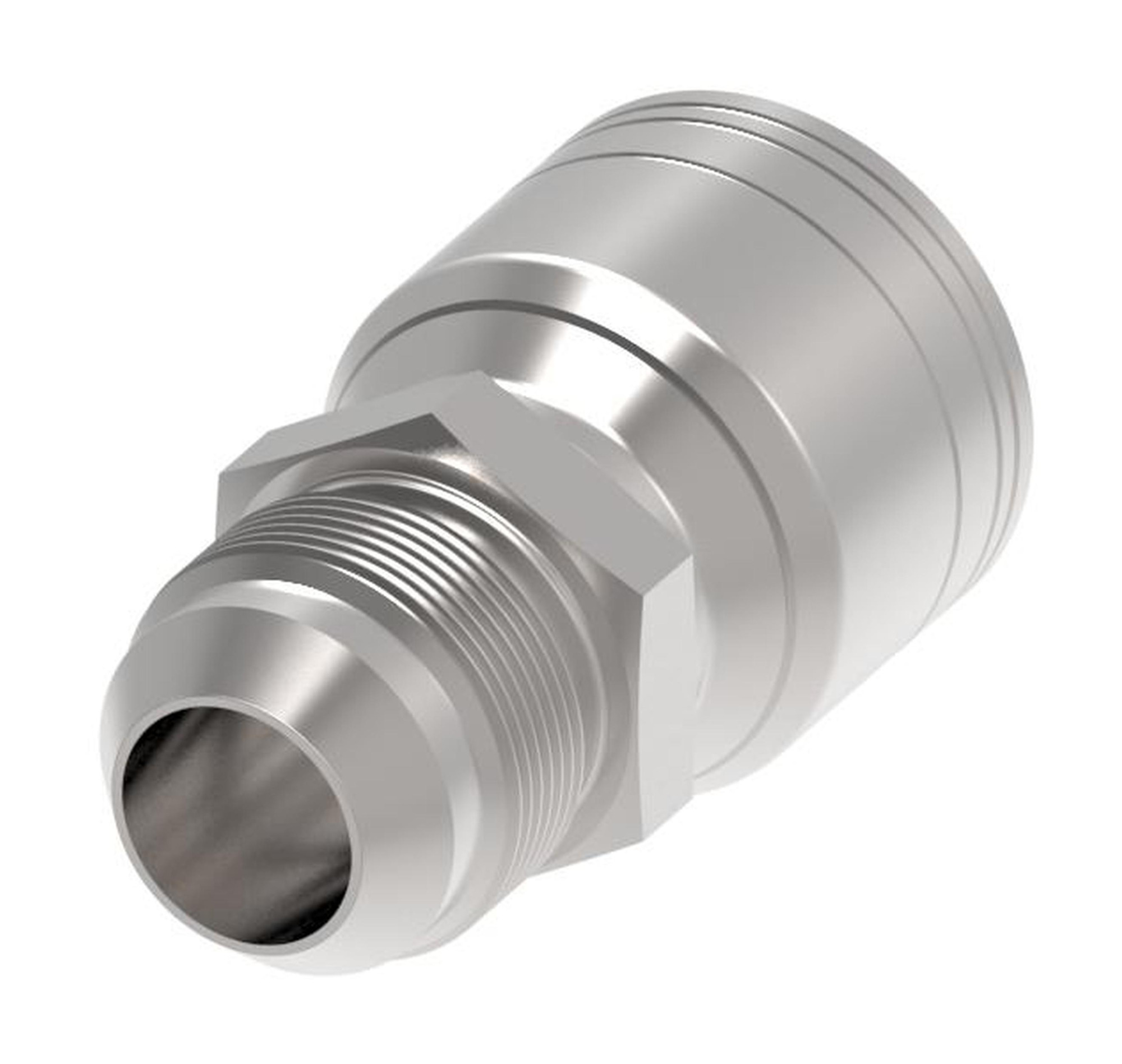

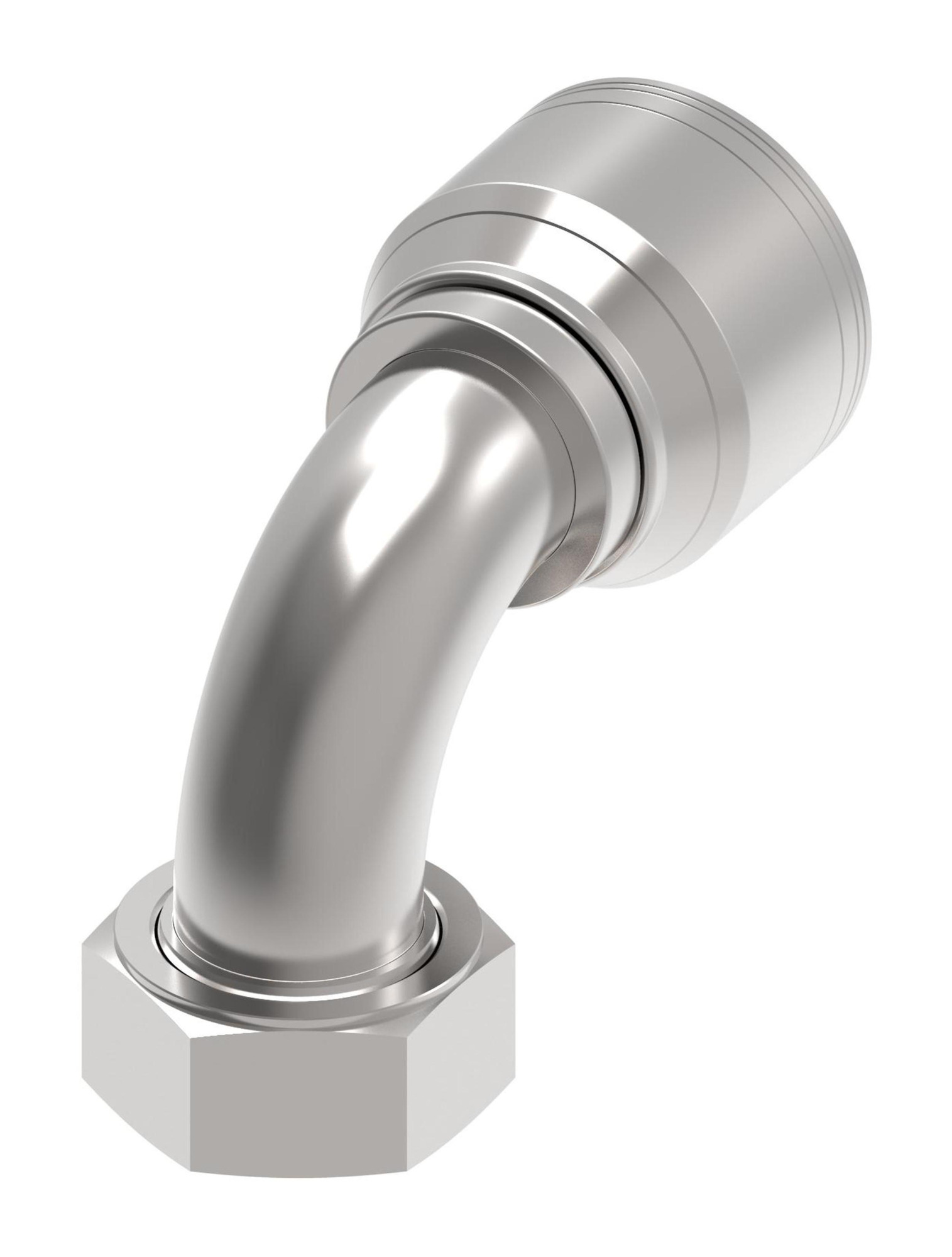

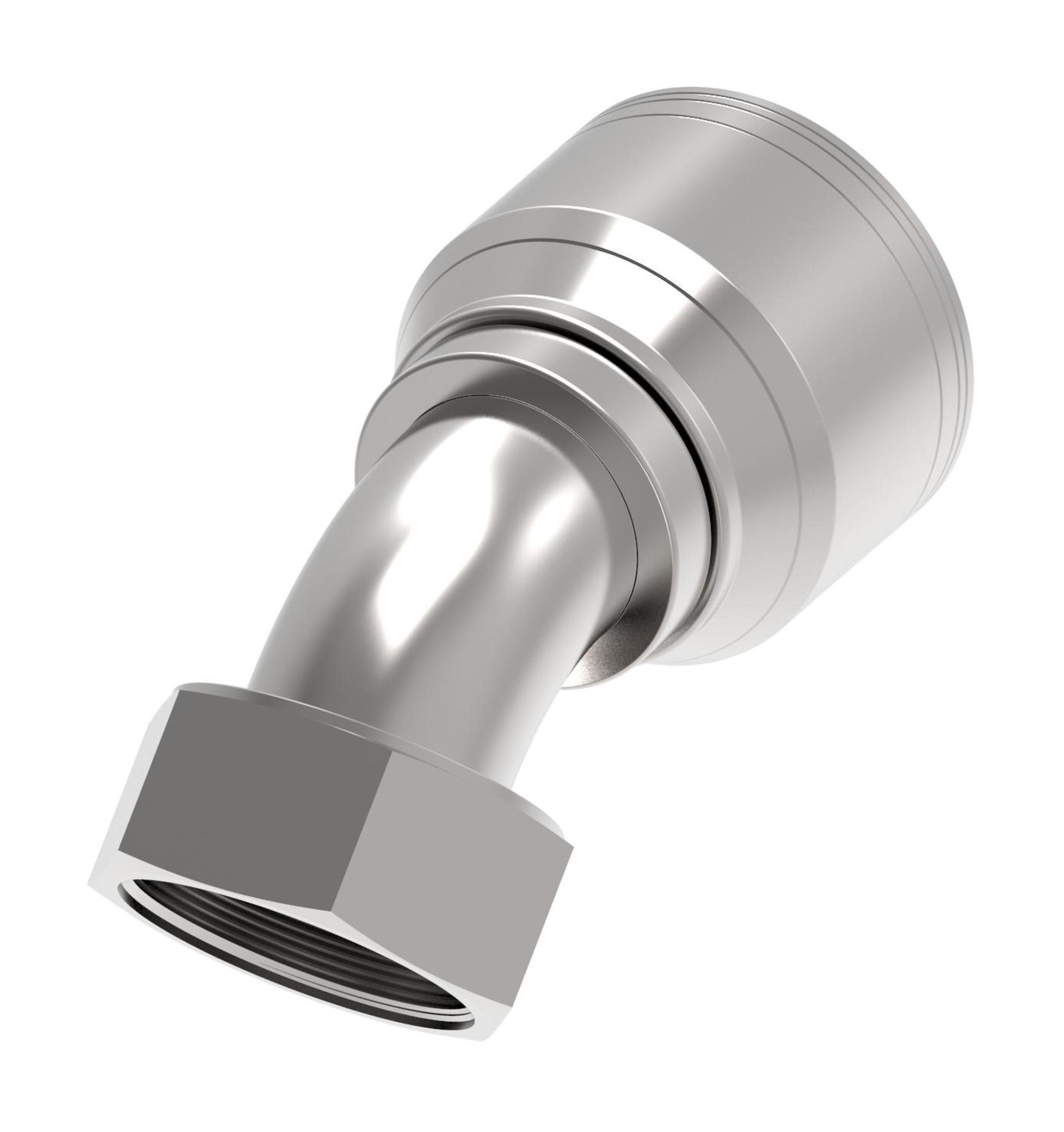

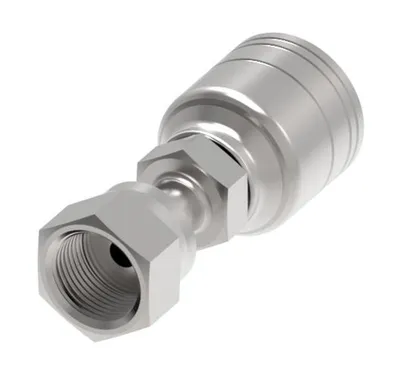

| 1AA24MJ24 | 4.210 | 106.900 | 2.490 | 4.310 | 109.947 |
| 1AA24FRB24 | 4.530 | 115.100 | 2.810 | 5.750 | 146.050 |
| 1AA24FRA24 | 4.430 | 112.600 | 2.710 | 6.230 | 158.242 |
| 1AA24FRA20 | 5.310 | 135.000 | 3.760 | 7.190 | 182.600 |
| 1AA24FR24 | 3.910 | 99.300 | 2.910 | 4.490 | 114.404 |
| 1AA24FR20 | 3.640 | 92.500 | 2.080 | 4.390 | 111.506 |

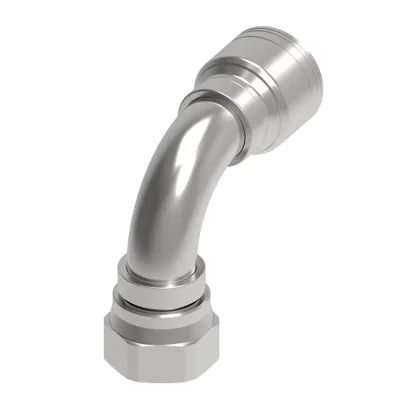

| 1AA24FJB24 | 4.530 | 115.100 | 2.810 | 5.650 | 14.351 |

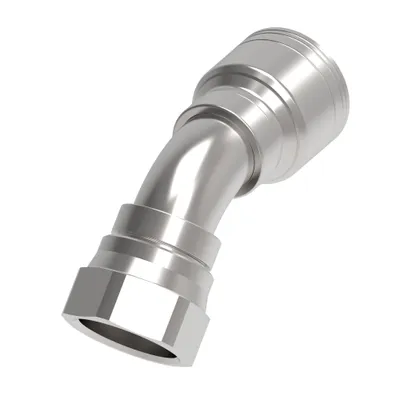

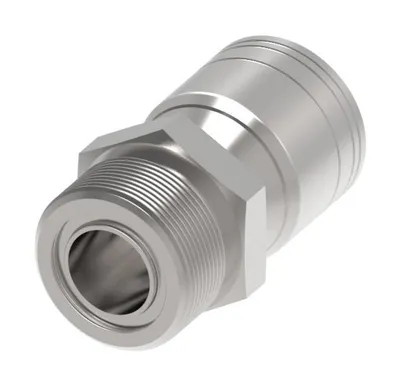

| 1AA24FJA24 | 6.170 | 156.600 | 4.400 | 8.040 | 204.216 |
| 1AA24FJ24C | 3.800 | 96.400 | 2.070 | 3.800 | 96.520 |
| 1AA24FJ24 | 3.800 | 96.400 | 2.070 | 3.900 | 99.060 |
| 1AA20MR20 | 3.360 | 85.300 | 1.800 | 3.530 | 89.662 |
| 1AA20MP20 | 3.340 | 84.900 | 1.787 | 3.520 | 89.408 |
| 1AA20MP16 | 3.050 | 77.500 | 1.720 | 3.080 | 78.232 |
Common to all listed parts
| Construction Style | Crimp |
| Series | 1A/Z Series |
| Working temperature max C | 150 |
| Working temperature max F | 302 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
