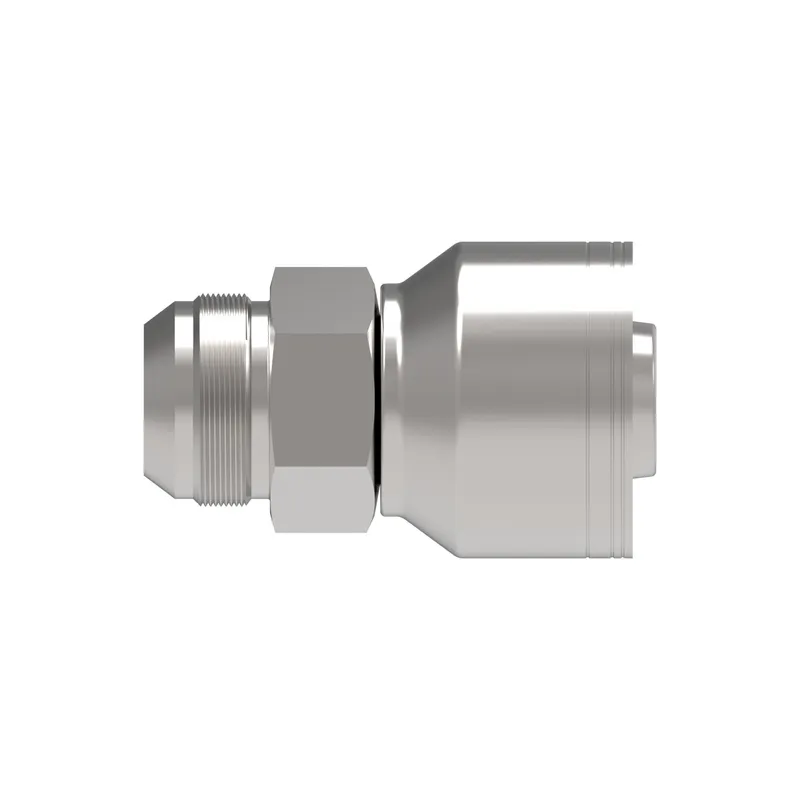

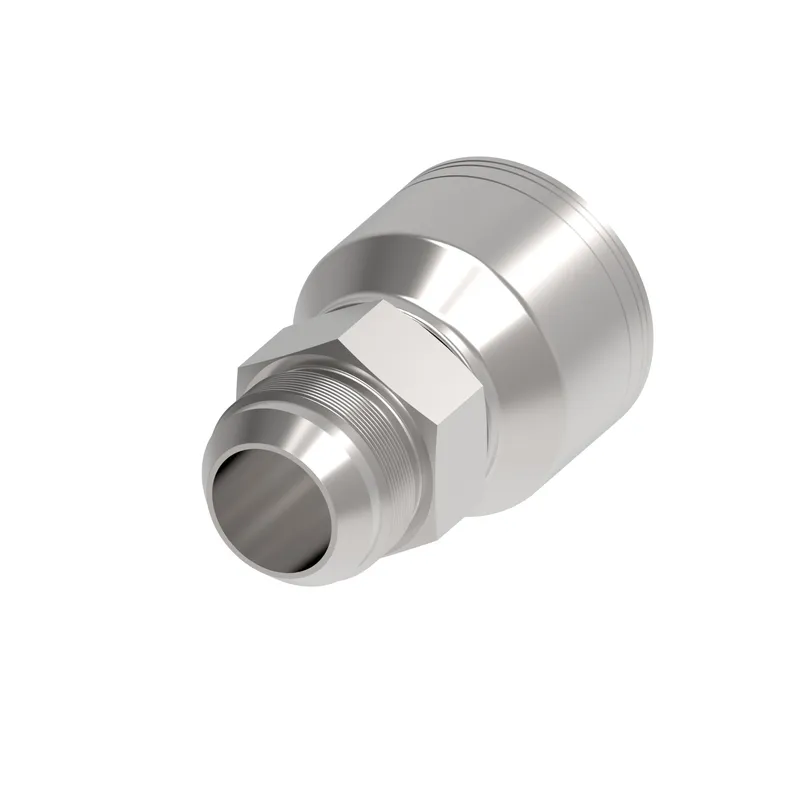

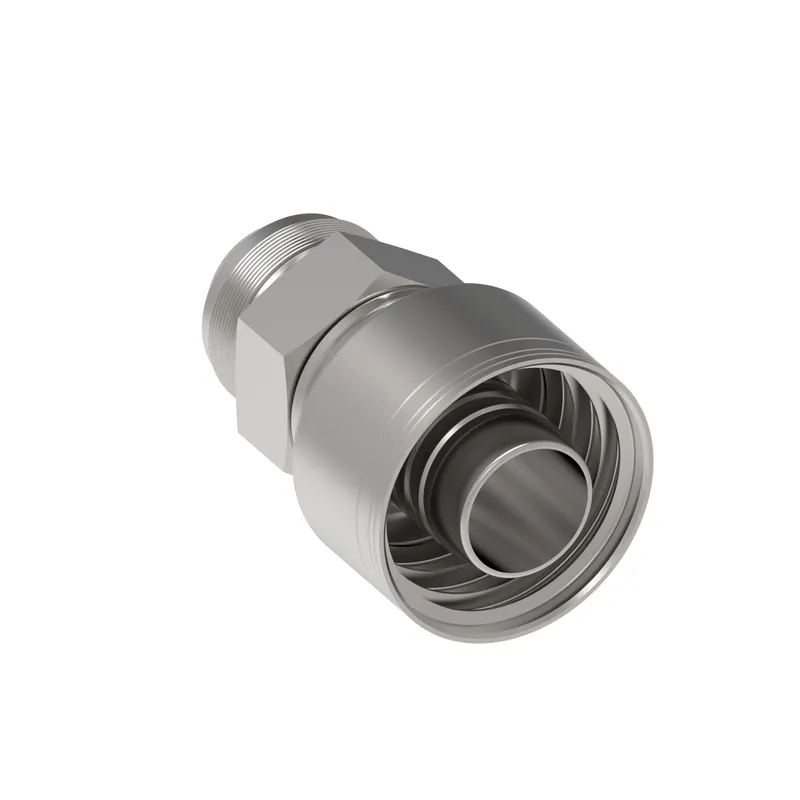

Danfoss 1AA20MJ16

HOSE FTG, 1A/16, JIC-M/20, CS, STR

MPN: 1AA20MJ16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA20MJ16?

Danfoss HOSE FTG, 1A/16, JIC-M/20, CS, STR, manufacturer part number 1AA20MJ16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126245
A dimension IN	3.030
A dimension MM	77.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 2 MM	43.000
Hose cut off factor IN	1.710
Hose cut off factor MM	43.500
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.700
Product height in	1.950
Product height mm	49.530
Product length in	3.030
Product length mm	76.962
Product material	Carbon steel
Product width in	1.940
Product width mm	49.276
Series	1A/Z Series
Thread size 1	1 5/8-12 UN
Working pressure max BAR	241
Working pressure max PSI	3500
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
