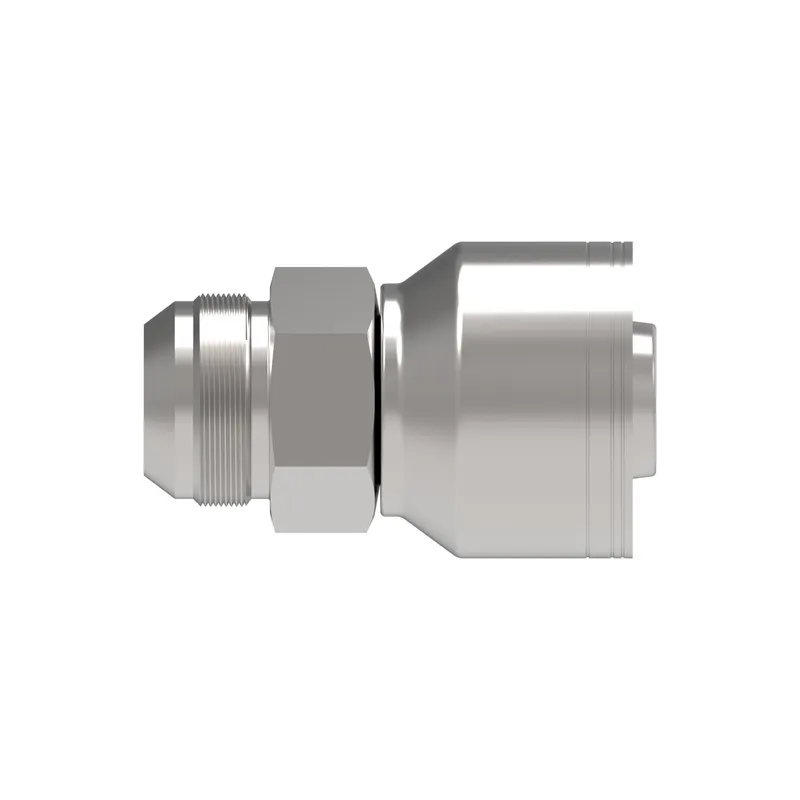

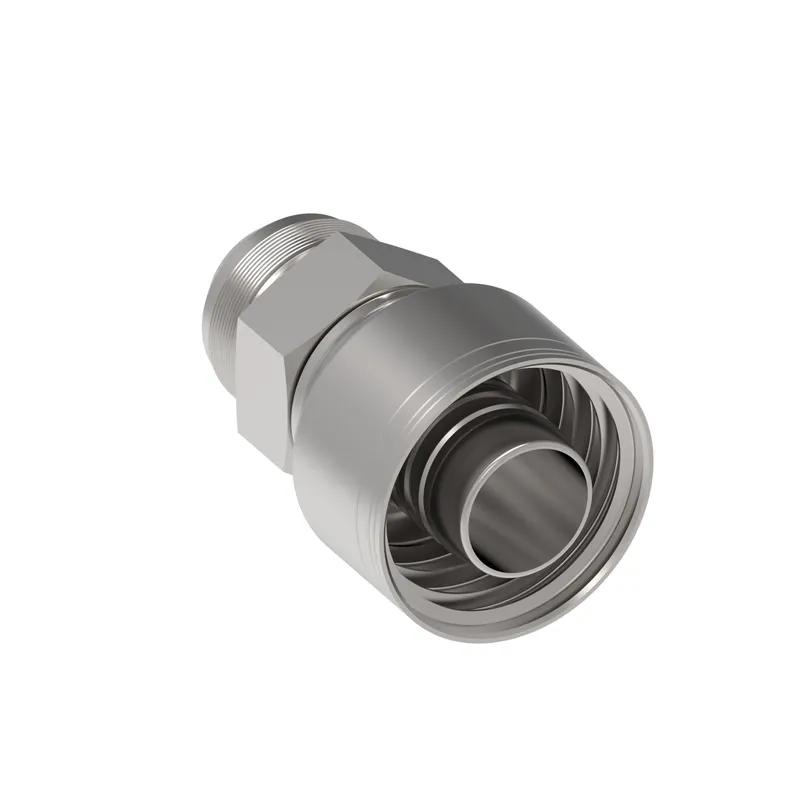

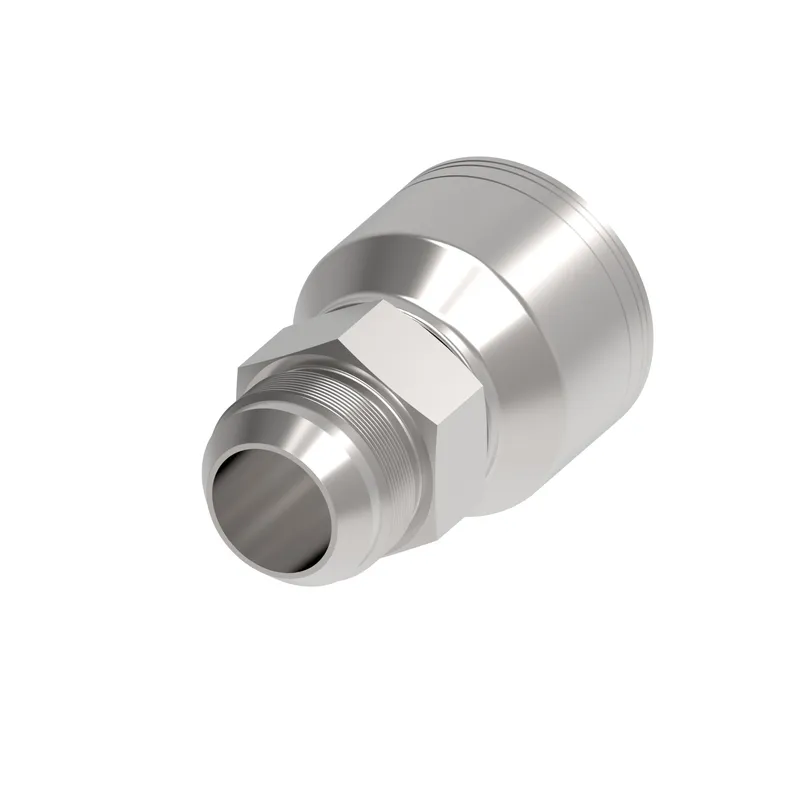

Danfoss 1AA20MJ20

HOSE FTG, 1A/20, JIC-M/20, CS, STR

MPN: 1AA20MJ20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA20MJ20?

Danfoss HOSE FTG, 1A/20, JIC-M/20, CS, STR, manufacturer part number 1AA20MJ20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146180711
A dimension IN	3.710
A dimension MM	94.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	1.771
Hex size 1 MM	45.000
Hex size 2 IN	0.000
Hose cut off factor IN	2.160
Hose cut off factor MM	54.800
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.600
Product height in	2.410
Product height mm	61.214
Product length in	3.890
Product length mm	98.806
Product material	Carbon steel
Product width in	2.410
Product width mm	61.214
Series	1A/Z Series
Thread size 1	1 5/8-12 UN
Working pressure max BAR	241.00
Working pressure max PSI	3500.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
