What is the Danfoss 1AA24FJB24?

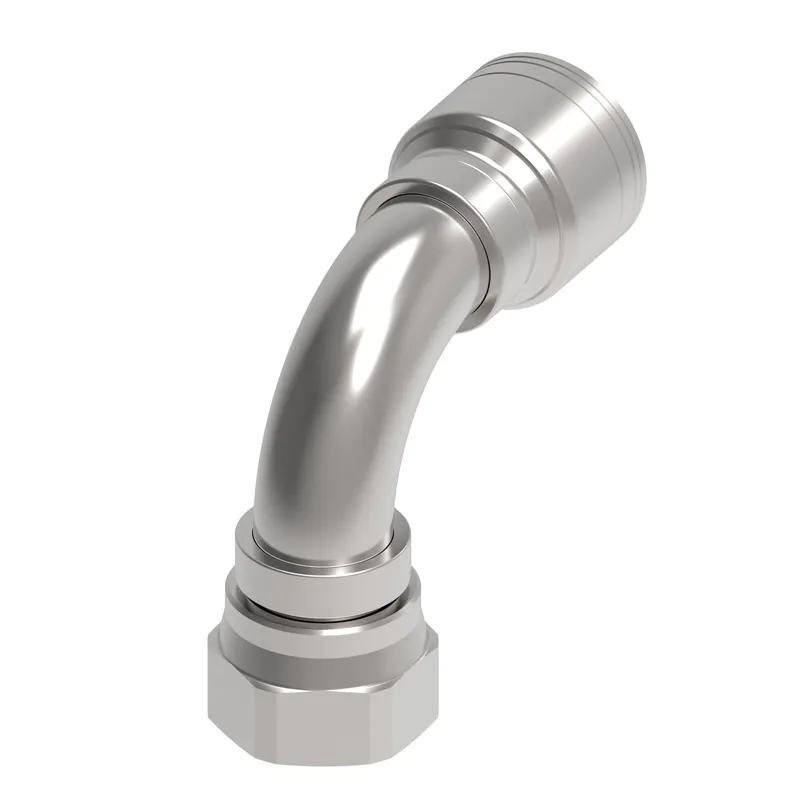

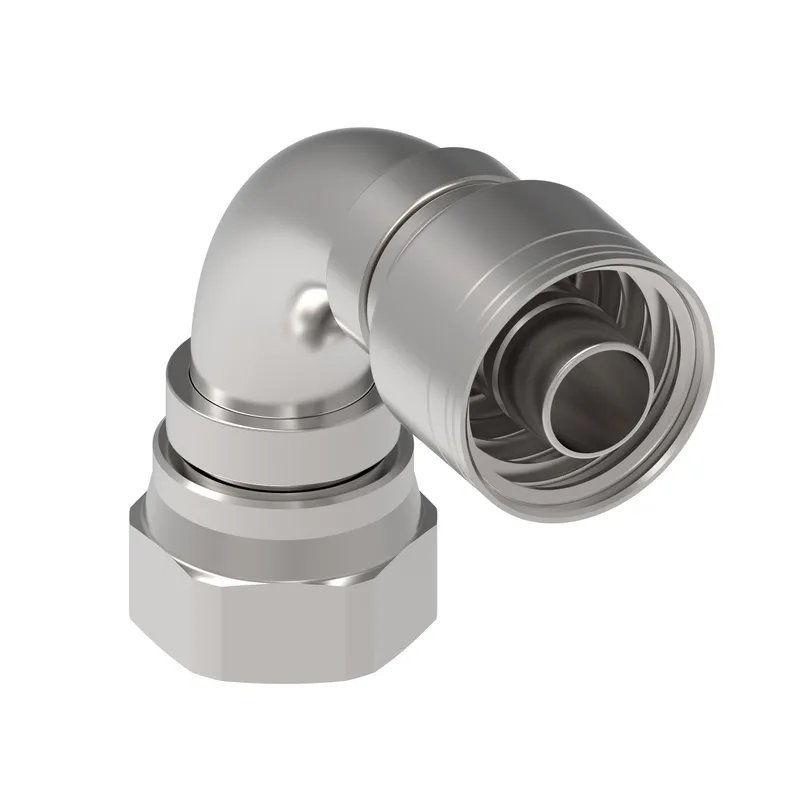

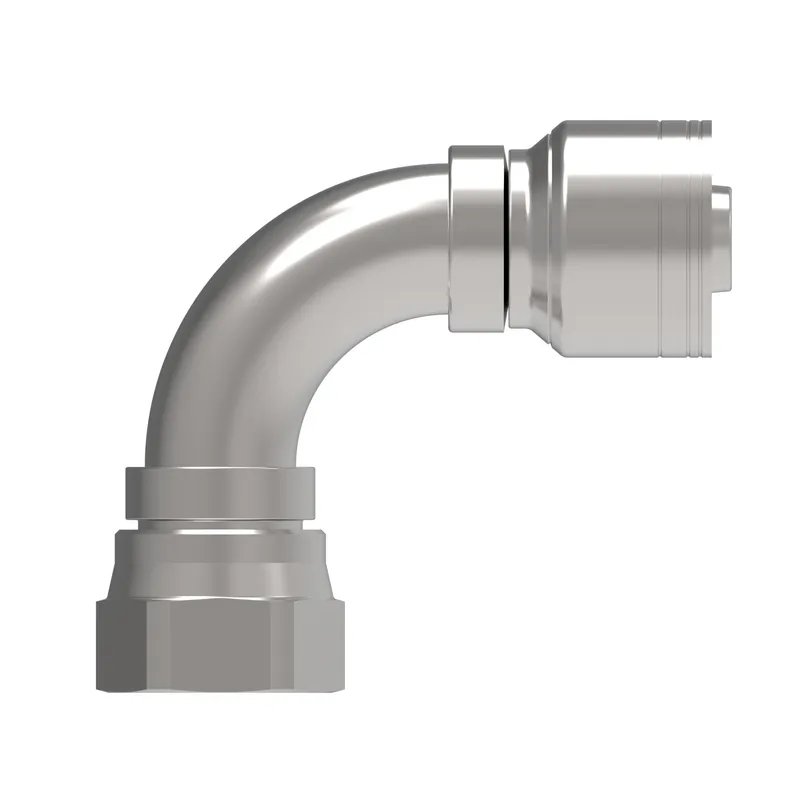

Danfoss HOSE FTG, 1A/24, JIC-F/24, CS, 90D, manufacturer part number 1AA24FJB24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126283
A dimension IN	4.530
A dimension MM	115.100
Angle shape	90 Degree
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Drop dimension IN	3.170
Drop dimension MM	80.60
End connection torque	158-167 lb-ft(216-227 Nm)
End size 1	-24
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	2.810
Hose cut off factor MM	71.400
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	5.300
Product height mm	134.620
Product length in	5.650
Product length mm	14.351
Product material	Carbon steel
Product width in	2.700
Product width mm	68.58
Series	1A/Z Series
Thread size 1	1 7/8-12 UN
Working pressure max BAR	138.00
Working pressure max PSI	2000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
