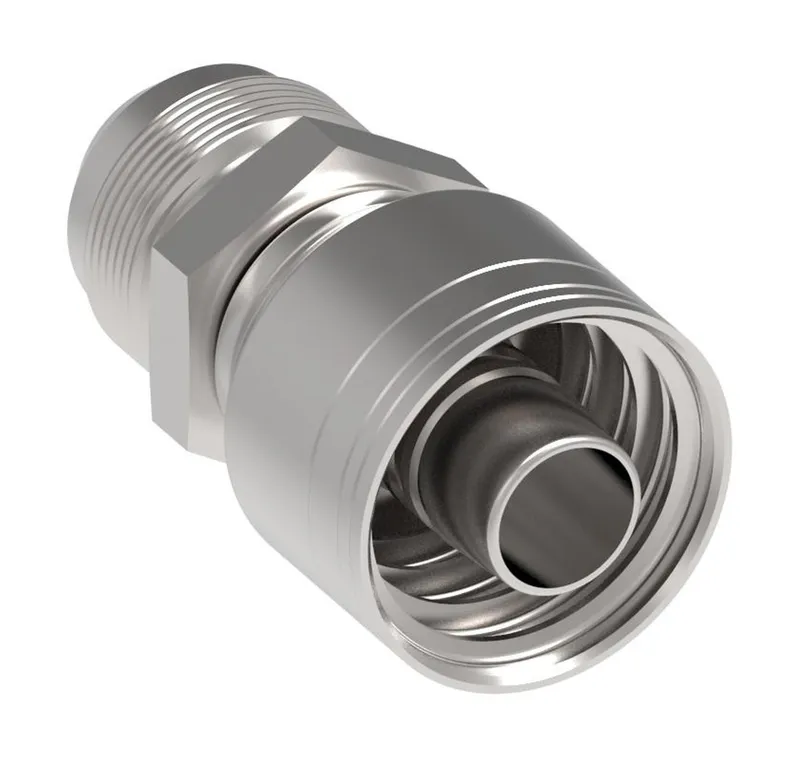

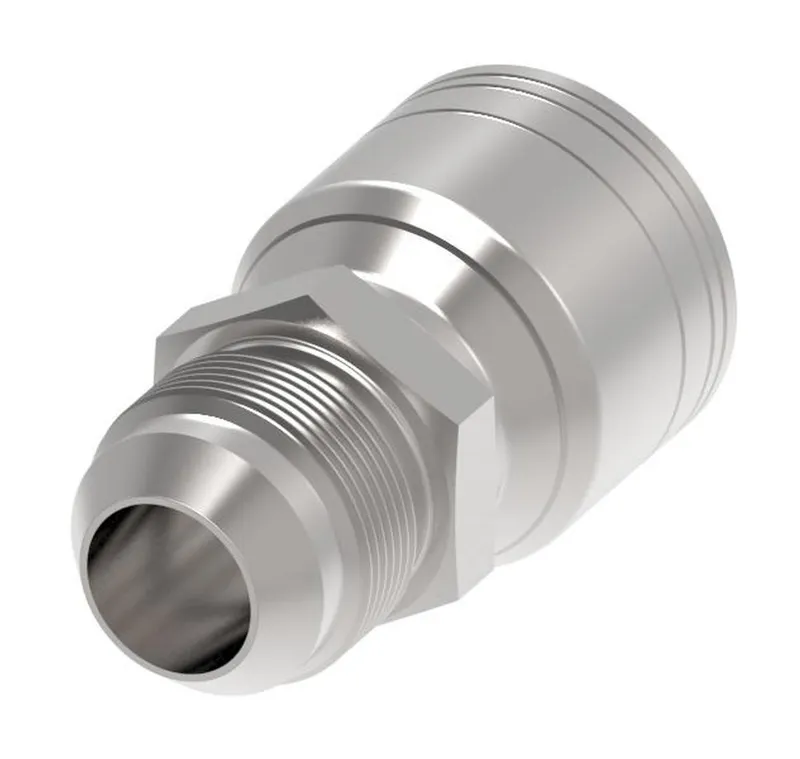

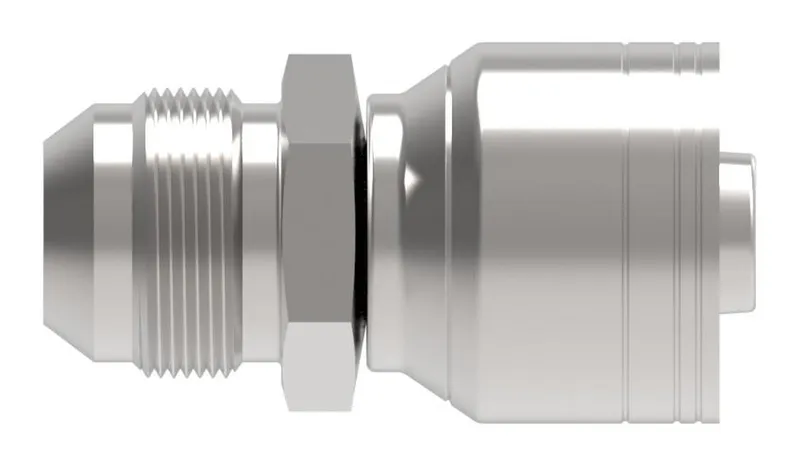

Danfoss 1AA24MJ24

HOSE FTG, 1A/24, JIC-M/24, CS, STR

MPN: 1AA24MJ24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA24MJ24?

Danfoss HOSE FTG, 1A/24, JIC-M/24, CS, STR, manufacturer part number 1AA24MJ24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126337
A dimension IN	4.210
A dimension MM	106.900
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
End connection torque	158-167 lb-ft(216-227 Nm)
End size 1	-24
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 2 MM	50.000
Hose cut off factor IN	2.490
Hose cut off factor MM	63.200
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	2.700
Product height mm	68.580
Product length in	4.310
Product length mm	109.947
Product material	Carbon steel
Product width in	2.700
Product width mm	68.58
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread size 1	1 7/8-12 UN
Working pressure max BAR	138.00
Working pressure max PSI	2000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
