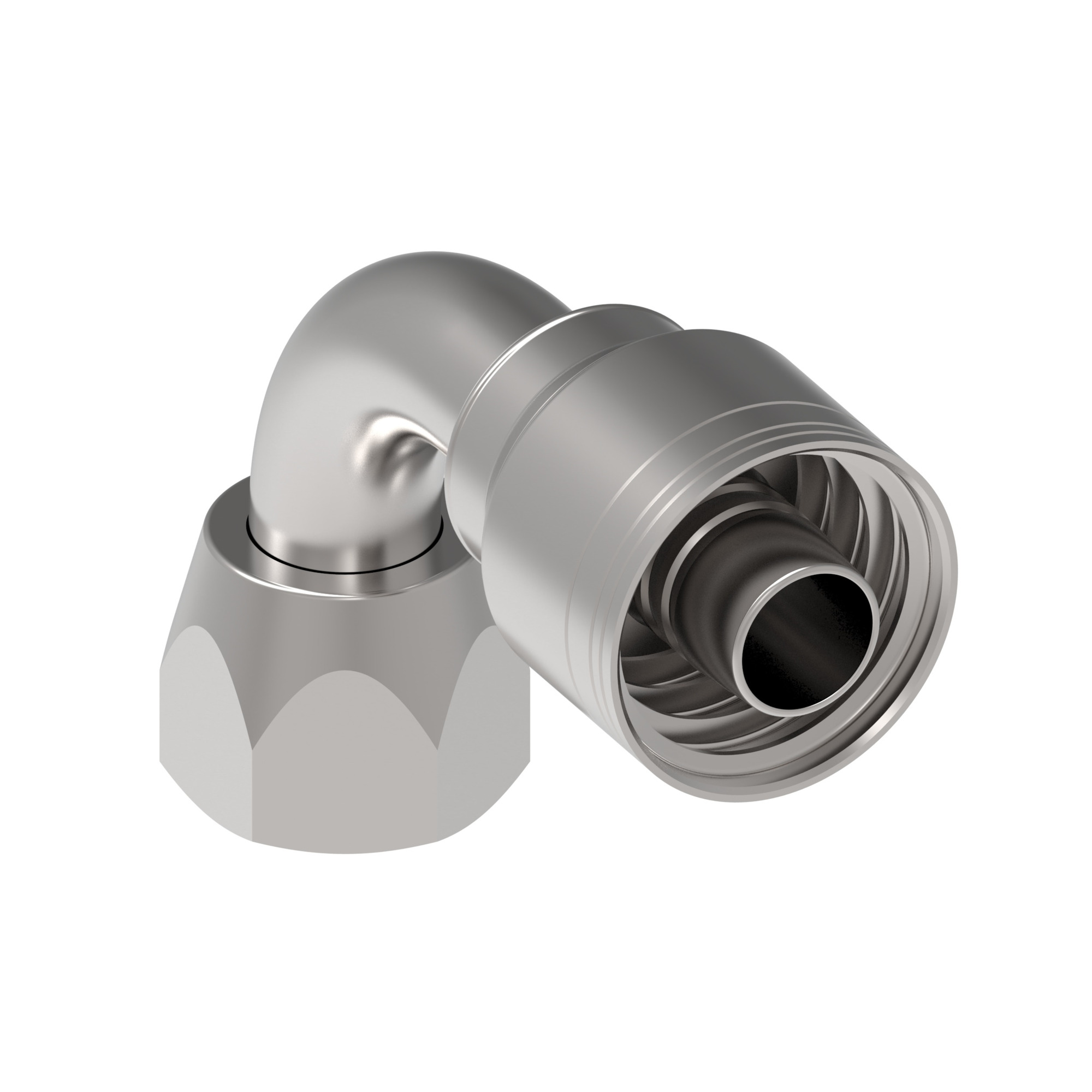

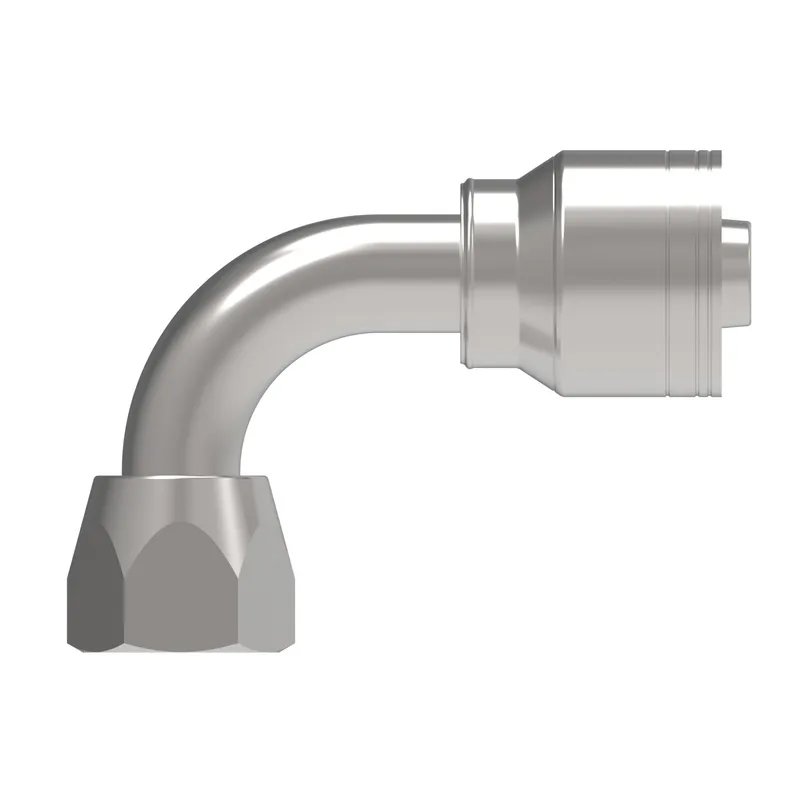

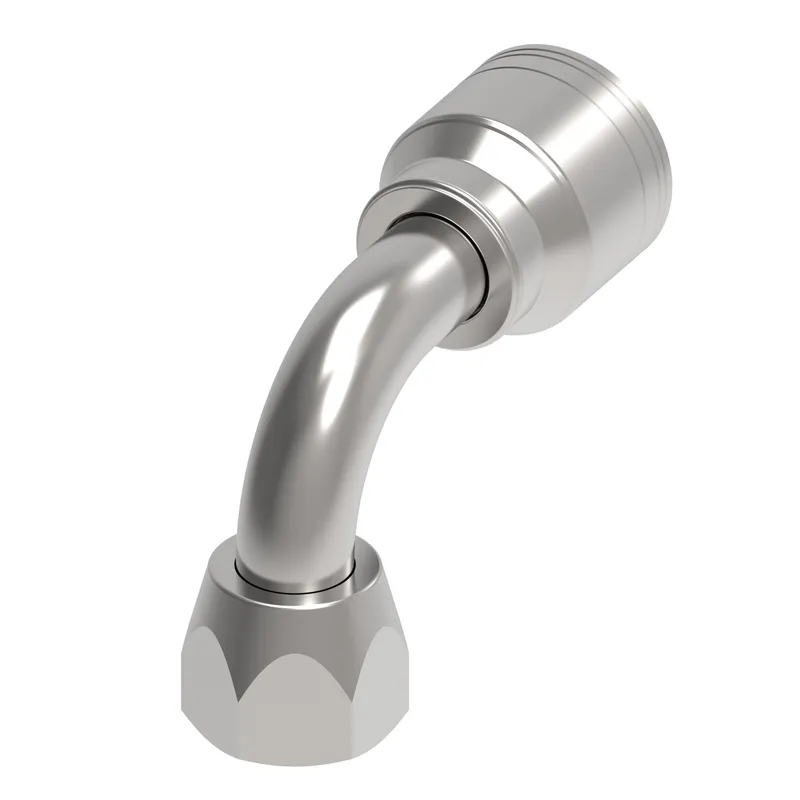

Danfoss 1AA32FJB32.141

HOSE FTG, 1A/32, JIC-F/32, CS, 90D

MPN: 1AA32FJB32.141
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA32FJB32.141?

Danfoss HOSE FTG, 1A/32, JIC-F/32, CS, 90D, manufacturer part number 1AA32FJB32.141. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146169624
A dimension IN	7.240
A dimension MM	183.800
Angle shape	90 Degree
Compatible hose ID IN	2.000
Compatible hose ID MM	50.800
Construction Style	Crimp
Drop dimension IN	5.540
Drop dimension MM	140.70
End connection torque	245-258 lb-ft(334-352 Nm)
End size 1	-32
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	5.430
Hose cut off factor MM	137.800
Hose size	-32
Inside diameter IN	1.750
Inside diameter MM	44.400
Product height in	5.540
Product height mm	140.716
Product length in	7.240
Product length mm	183.896
Product material	Carbon steel
Product width in	2.880
Product width mm	73.152
Series	1A/Z Series
Thread size 1	2 1/2-12 UN
Working pressure max BAR	110.00
Working pressure max PSI	1600.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
