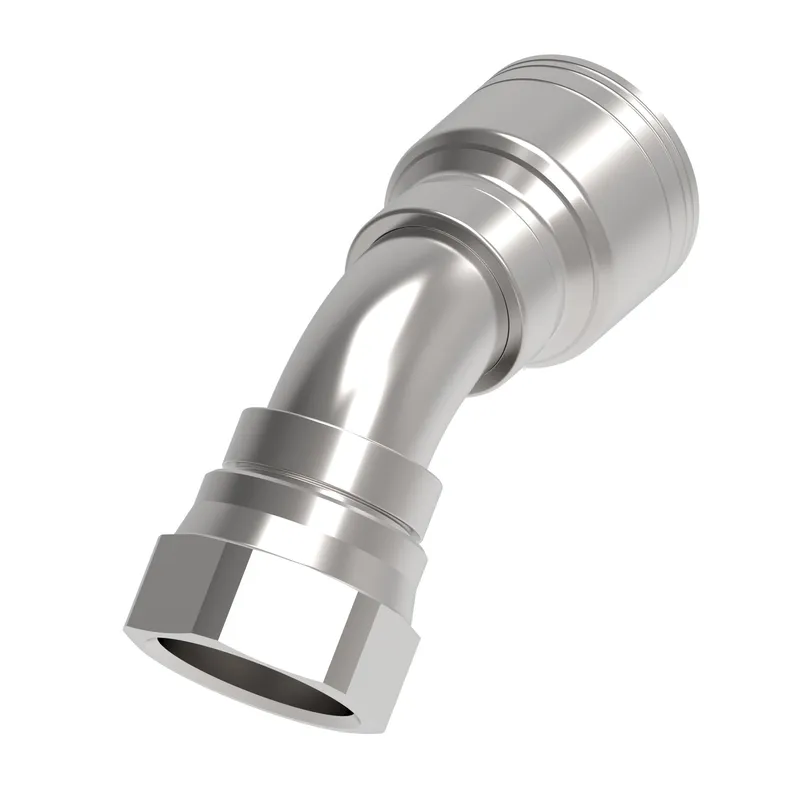

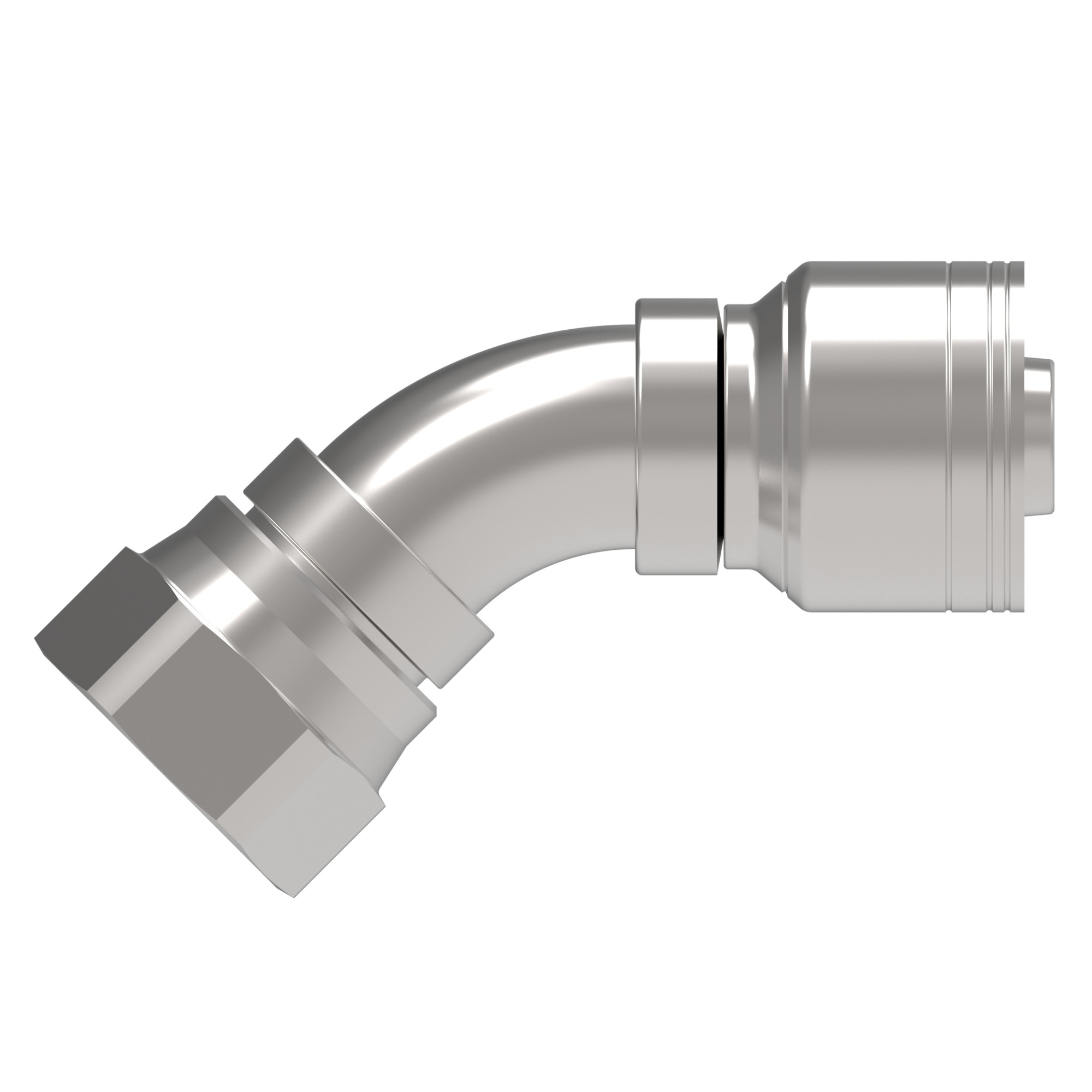

HOSE FTG, 1A/24, JIC-F/24, CS, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1AA24FJA24 be shipped?
1AA24FJA24 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1AA24FJA24 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1AA24FJA24 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA24FJA24, subject to availability and destination.
Danfoss HOSE FTG, 1A/24, JIC-F/24, CS, 45D, manufacturer part number 1AA24FJA24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 6.170 |
| A dimension MM | 156.600 |
| Angle shape | 45 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Construction Style | Crimp |
| Drop dimension IN | 1.990 |
| Drop dimension MM | 50.60 |
| End connection torque | 158-167 lb-ft(216-227 Nm) |
| End size 1 | -24 |
| End Type 1 | Female 37 degree swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 2.250 |
| Hex size 1 MM | 57.000 |
| Hex size 2 IN | 0.000 |
| Hose cut off factor IN | 4.400 |
| Hose cut off factor MM | 112.900 |
| Hose size | -24 |
| Inside diameter IN | 1.190 |
| Inside diameter MM | 30.200 |
| Product height in | 5.200 |
| Product height mm | 132.080 |
| Product length in | 8.040 |
| Product length mm | 204.216 |
| Product material | Carbon steel |
| Product width in | 2.700 |
| Product width mm | 68.58 |
| Series | 1A/Z Series |
| Thread size 1 | 1 7/8-12 UN |
| Working pressure max BAR | 138.00 |
| Working pressure max PSI | 2000.00 |
| Working temperature max C | 150 |
| Working temperature max F | 302 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
