Braided hose and fittings Parts

Danfoss

1AA6FJ8

HOSE FTG, 1A/08, JIC-F/06, CS, STR

Danfoss

1AA6FJ6C

HOSE FTG, 1A/06, JIC-F/06, AP, STR

Danfoss

1AA6FJ6

HOSE FTG, 1A/06, JIC-F/06, CS, STR

Danfoss

1AA6FJ4C

HOSE FTG, 1A/04, JIC-F/06, AP, STR

Danfoss

1AA6FJ4

HOSE FTG, 1A/04, JIC-F/06, CS, STR

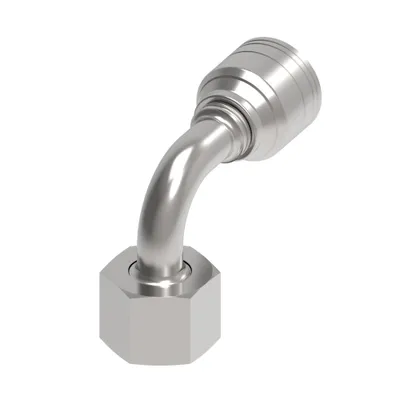

Danfoss

1AA6DSB4C

HOSE FTG, 1A/04, DKOH-B/06, AP, 90D

Danfoss

1AA6DS4C

HOSE FTG, 1A/04, DKOH-B/06, AP, STR

Danfoss

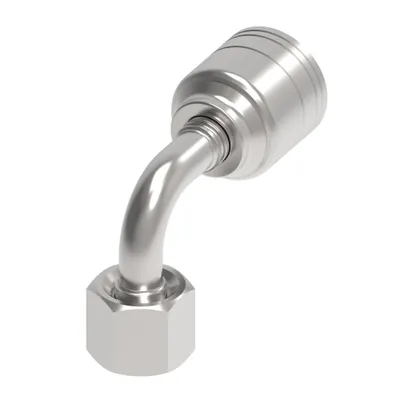

1AA6DLB4C

HOSE FTG, 1A/04, DKOL/06, AP, 90D

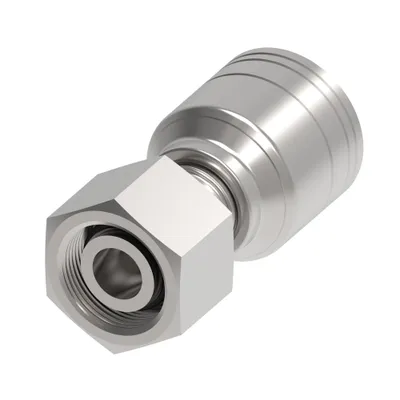

Danfoss

1AA6DL4C

HOSE FTG, 1A/04, DKOL/06, AP, STR

Danfoss

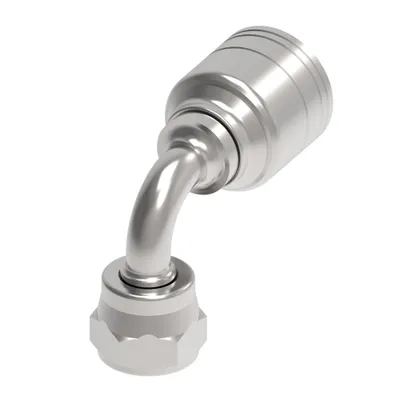

1AA6BFB6C

HOSE FTG, 1A/06, BF/06, AP, 90D

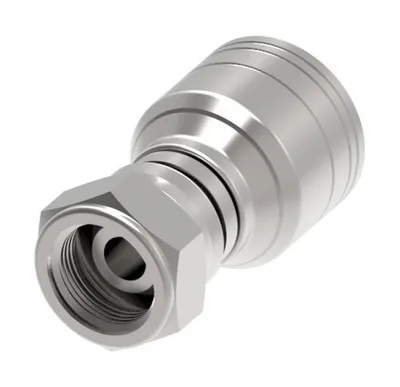

Danfoss

1AA6BF6C

HOSE FTG, 1A/06, BF/06, AP, STR

Danfoss

1AA5MJ4

HOSE FTG, 1A/04, JIC-M/05, CS, STR

Danfoss

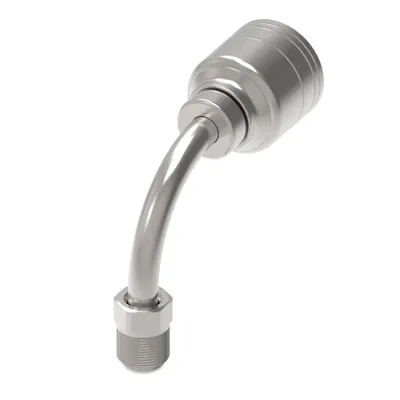

1AA5MFB6

HOSE FTG, 1A/06, INVF-M/05, CS, 90D

Danfoss

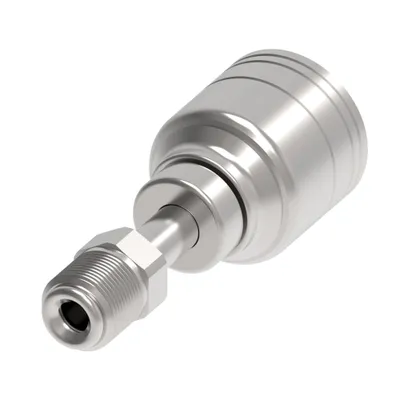

1AA5MF6

HOSE FTG, 1A/06, INVF-M/05, CS, STR

Danfoss

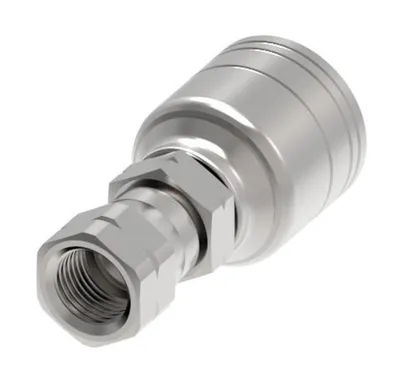

1AA5FS4

HOSE FTG, 1A/04, FS/05, CS, STR

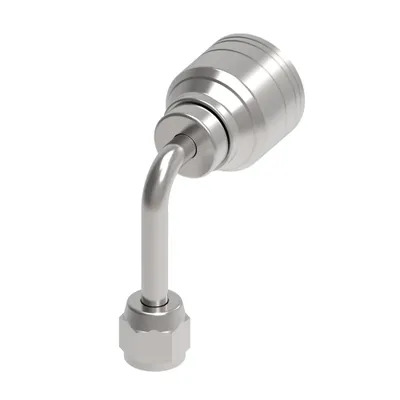

Danfoss

1AA5FJC4

HOSE FTG, 1A/04, JIC-F/05, CS, 90D

Danfoss

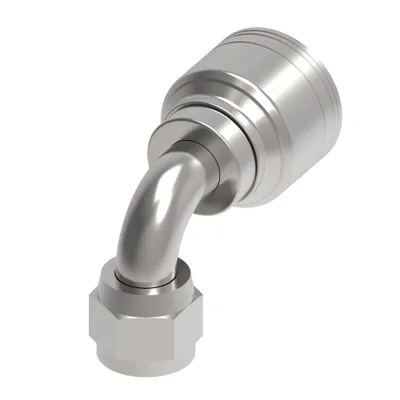

1AA5FJB4

HOSE FTG, 1A/04, JIC-F/05, CS, 90D

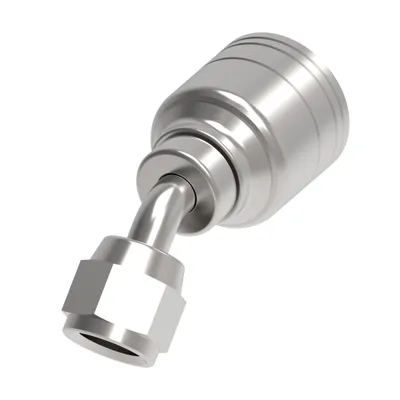

Danfoss

1AA5FJA4

HOSE FTG, 1A/04, JIC-F/05, CS, 45D

Danfoss

1AA5FJ6

HOSE FTG, 1A/06, JIC-F/05, CS, STR

Danfoss

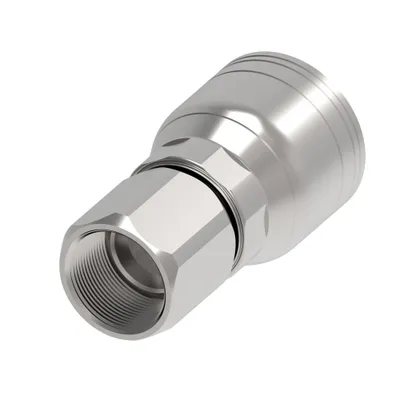

1AA5FJ4

HOSE FTG, 1A/04, JIC-F/05, CS, STR

Danfoss

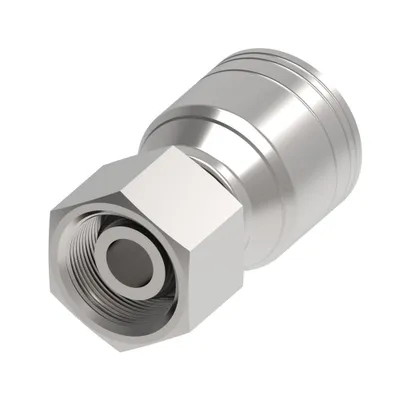

1AA5DS4C

HOSE FTG, 1A/04, DKOH-B/05, AP, STR

Danfoss

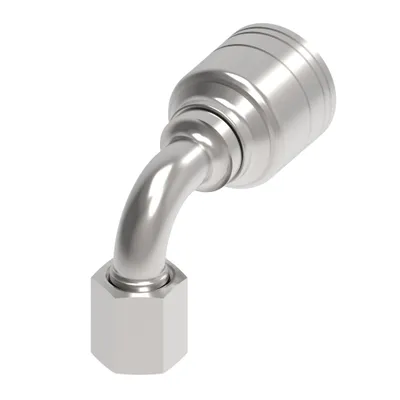

1AA5DLB4C

HOSE FTG, 1A/04, DKOL/05, AP, 90D

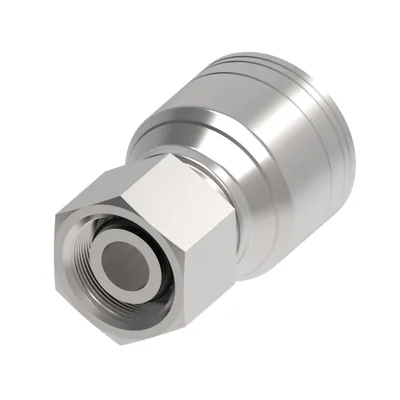

Danfoss

1AA5DL4C

HOSE FTG, 1A/04, DKOL/05, AP, STR

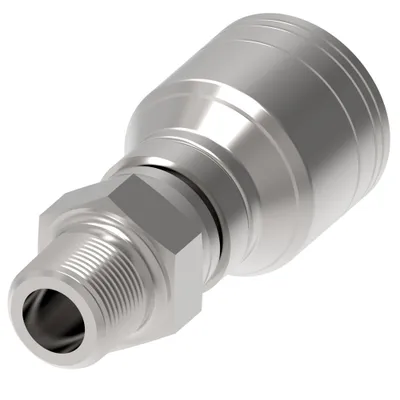

Danfoss

1AA4PS4

HOSE FTG, 1A/04, NPTF-MS/04, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	A dimension IN	A dimension MM	Hose cut off factor IN	Hose cut off factor MM
1AA6FJ8	678146127105	2.360	60.100	1.360	34.600
1AA6FJ6C	678146127099	2.120	53.900	1.280	32.600
1AA6FJ6	678146127082	2.090	53.000	1.270	32.200
1AA6FJ4C	678146169730	1.900	48.300	1.110	28.100
1AA6FJ4	678146127075	2.050	52.100	1.110	28.100
1AA6DSB4C	678146127051	2.060	52.200	1.260	32.000
1AA6DS4C	678146127044	1.870	47.500	1.080	27.400
1AA6DLB4C	678146127037	1.930	49.000	1.130	28.700
1AA6DL4C	678146127020	1.680	42.700	0.890	22.600
1AA6BFB6C	678146127006	2.180	55.400	1.340	34.100
1AA6BF6C	678146126993	1.670	42.400	0.830	21.100
1AA5MJ4	678146126962	1.720	43.700	0.930	23.500
1AA5MFB6	678146126955	2.350	59.700	1.510	38.400
1AA5MF6	678146126917	2.440	62.100	1.610	40.800
1AA5FS4	678146126887	1.860	47.200	1.060	27.000
1AA5FJC4	678146126870	1.790	45.500	1.000	25.300
1AA5FJB4	678146126863	1.790	45.500	0.996	25.300
1AA5FJA4	678146126856	1.920	48.700	1.122	28.500
1AA5FJ6	678146126849	2.080	52.800	1.240	31.500
1AA5FJ4	678146126832	1.980	50.400	1.140	28.900
1AA5DS4C	—	1.830	46.400	1.030	26.200
1AA5DLB4C	678146126825	1.970	49.900	1.170	29.600
1AA5DL4C	678146126818	1.660	42.100	0.860	21.900
1AA4PS4	678146126764	2.410	61.300	1.620	41.100

Common to all listed parts

Construction Style	Crimp
Series	1A/Z Series
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
