Danfoss 1AA4BFB4C

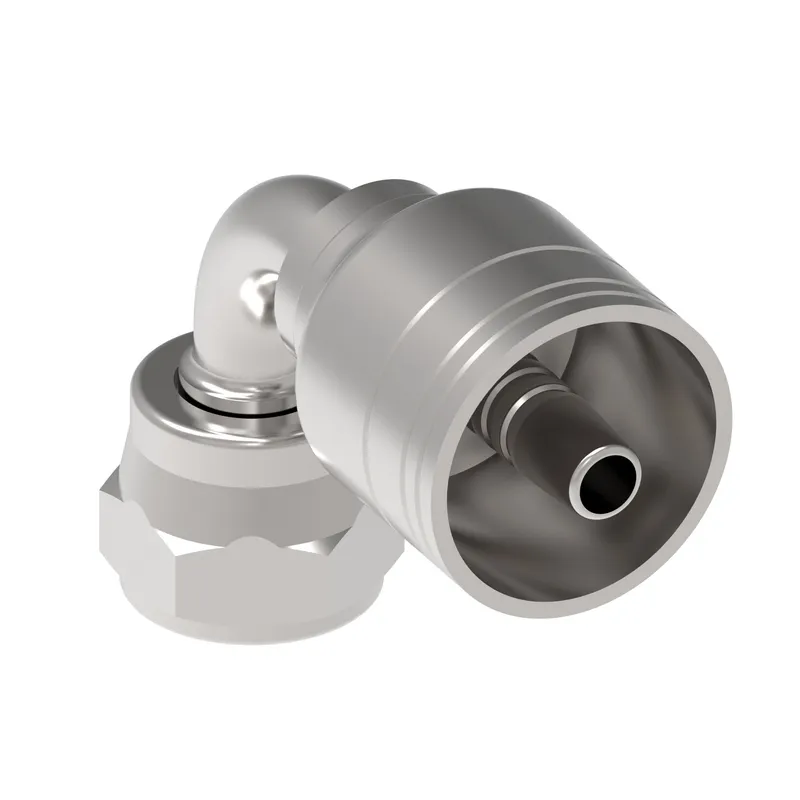

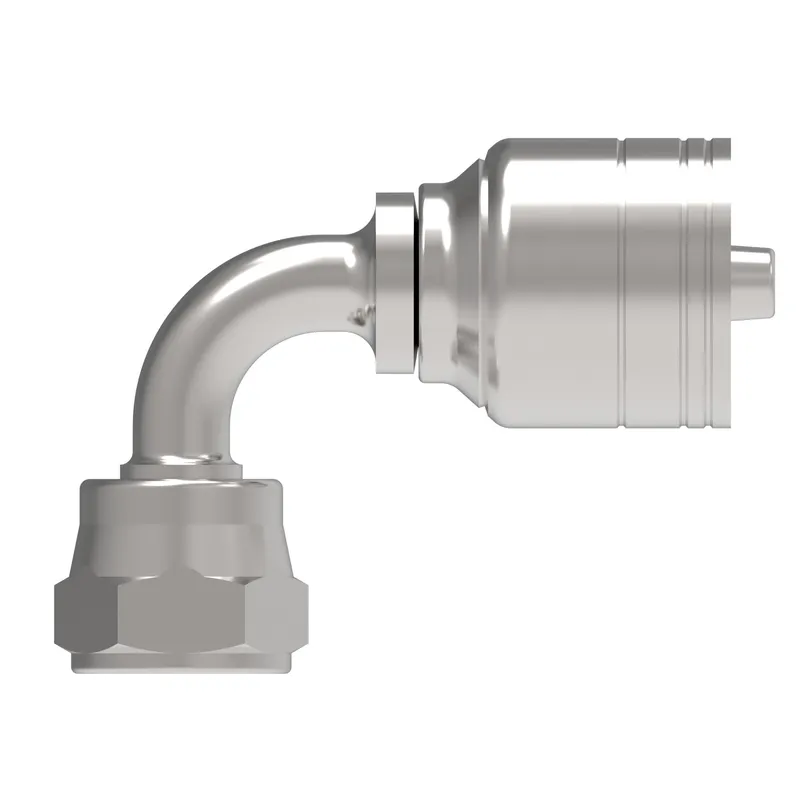

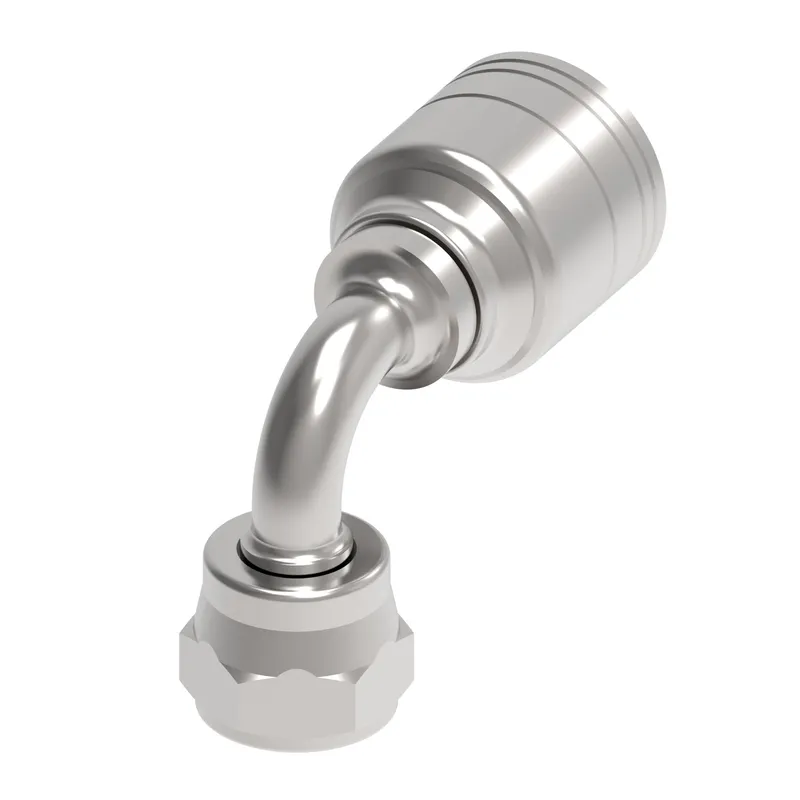

HOSE FTG, 1A/04, BF/04, AP, 90D

MPN: 1AA4BFB4C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4BFB4C?

Danfoss HOSE FTG, 1A/04, BF/04, AP, 90D, manufacturer part number 1AA4BFB4C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126429
A dimension IN	1.960
A dimension MM	49.800
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible tube OD IN	0.25
Compatible tube OD MM	6.350
Construction Style	Crimp
Drop dimension IN	1.100
Drop dimension MM	28.00
End size 1	-4
End Type 1	Female BSPP swivel
Finish plating	Passivate
Hex size 1 IN	0.690
Hex size 1 MM	17.526
Hose cut off factor IN	1.170
Hose cut off factor MM	29.600
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.540
Product height mm	39.116
Product length in	2.430
Product length mm	61.722
Product material	316 Stainless steel
Product width in	0.880
Product width mm	22.352
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 1/4
Tube OD 1 IN	0.250
Tube OD 1 MM	6.350
Working pressure max BAR	450
Working pressure max PSI	6550
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA4BFB4C: frequently asked questions

When can 1AA4BFB4C be shipped?

1AA4BFB4C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA4BFB4C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA4BFB4C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA4BFB4C, subject to availability and destination.
