Danfoss 1AA25DL16C

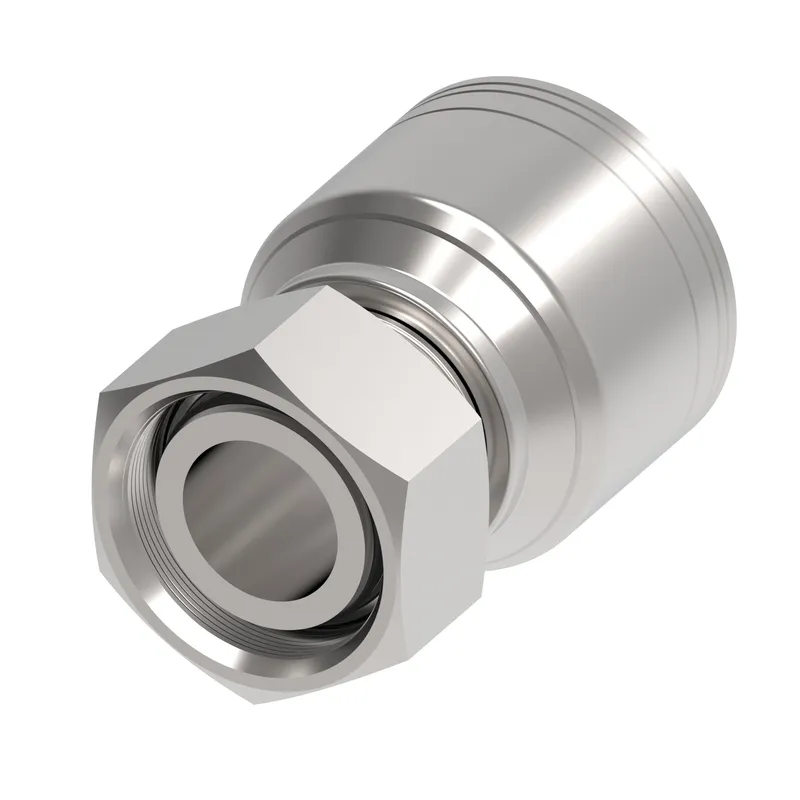

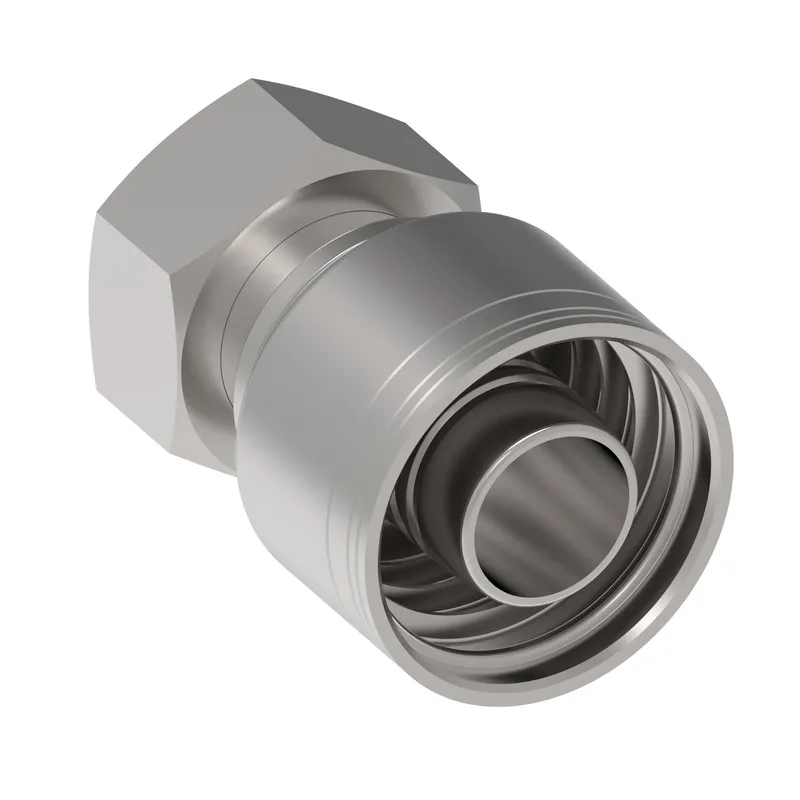

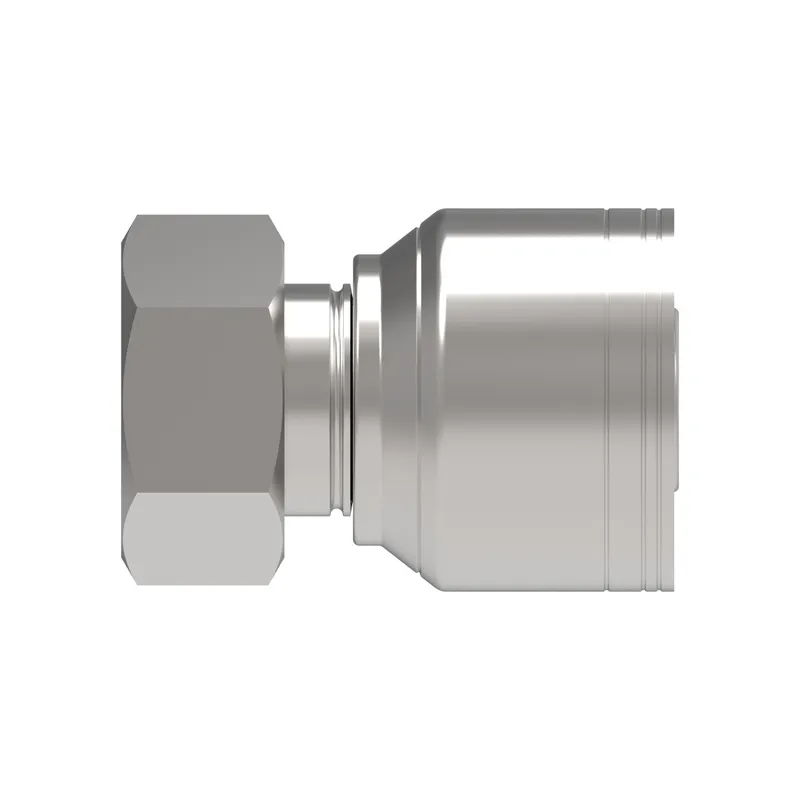

HOSE FTG, 1A/16, DKOL/12, AP, STR

MPN: 1AA25DL16C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA25DL16C?

Danfoss HOSE FTG, 1A/16, DKOL/12, AP, STR, manufacturer part number 1AA25DL16C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.660
A dimension MM	67.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End size 1	-25
End Type 1	24 deg. DKO swivel light duty
Hex size 1 IN	1.630
Hex size 1 MM	41.402
Hose cut off factor IN	1.330
Hose cut off factor MM	33.800
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.700
Product height in	1.940
Product height mm	49.276
Product length in	2.680
Product length mm	68.072
Product material	316 Stainless steel
Product width in	1.940
Product width mm	49.276
Series	1A/Z Series
Thread sealant	No
Thread size 1	M36x2
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
